Product Description

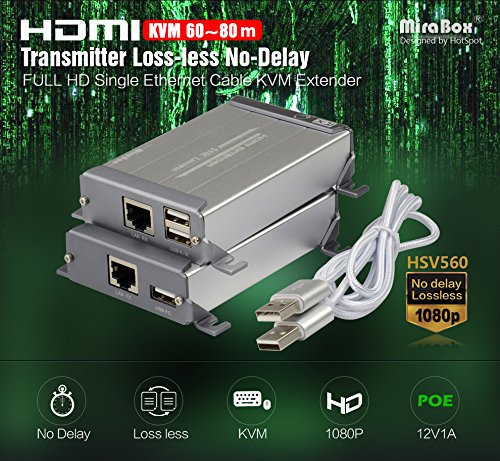

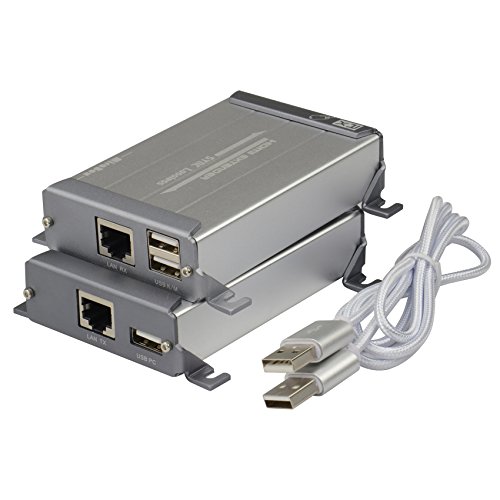

MiraBox 60m HDMI KVM Extender With POE Supports AV Lossless No Latency 1080P Transmission
Introduction

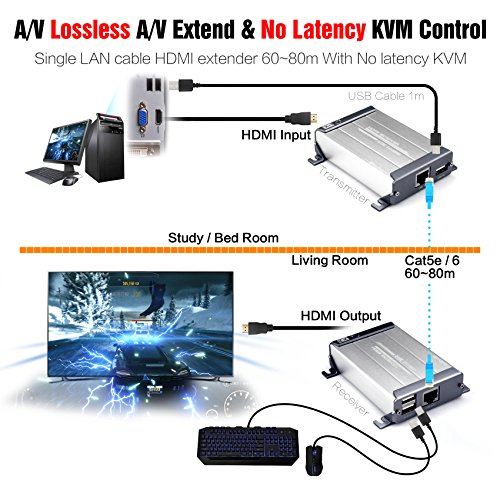

This product extend FULL HD HDMI signal up to 100 meters via a single CAT cable, without any video loss and time delay.

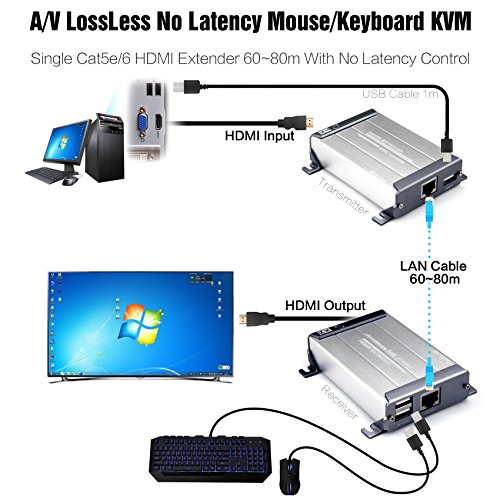

And also support USB keyboardmouse transmit over 80meters on the same CAT cable. It has many professional designs which suitable for various application scenario, especially for engineering project usage. Such as PoE, 5V-12V wide range power supply, mountable aluminum alloy shieding.
Features
1. Extend FULL HD HDMI signal over 100 meters via single CAT cable

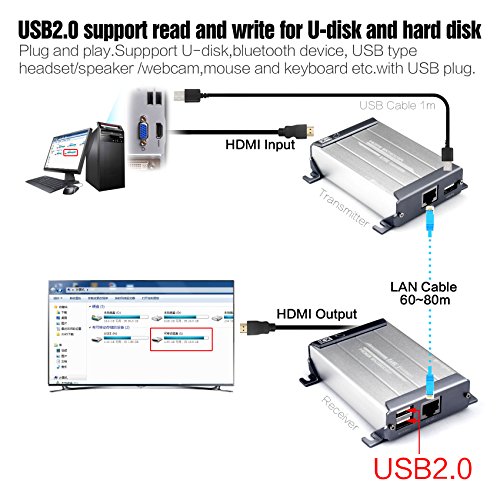

2. Extend USB signal over 80 meters simultaneous

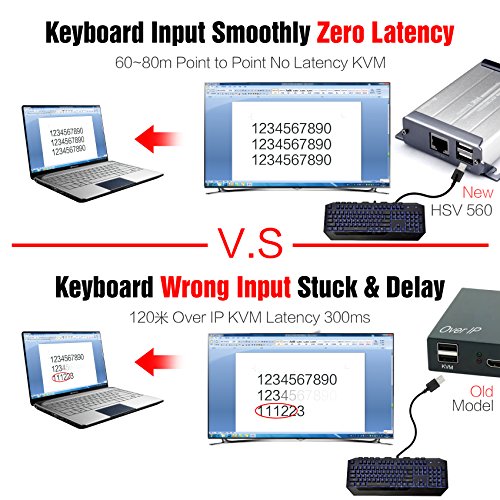

3. No video loss, no time delay.
4. Support PoE function.
5. Wide range power supply

Technical Specification
Standard Power Input: 12V
Power Consumption: 3W

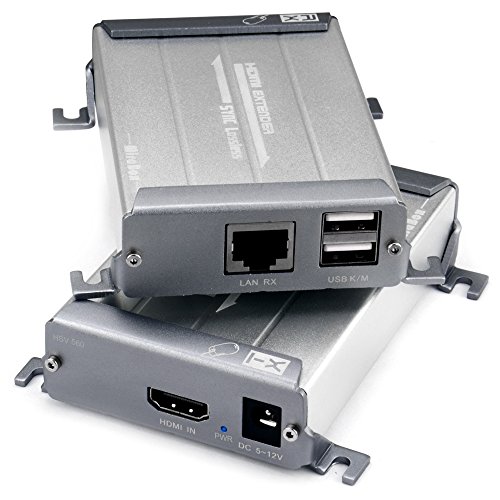

HDMI Port: HDMI A type Female
USB Port Receiver: USB A type Female * 2 connect to peripheral device
Sender: USB A type Female * 1 connect to HOST device
Link Connection: CAT5/5e/6 Cable
HDMI Transmission Distance: 100meters
USB Transmission Distance: 80meters
USB Device Supported: Keyboard/Mouse and HID devices
HDMI Resolution Supported: 1080p@60Hz / 1080p@50Hz / 1080p@30Hz / 1080p@25Hz 720p@60Hz / 720p@50Hz 480p@60Hz

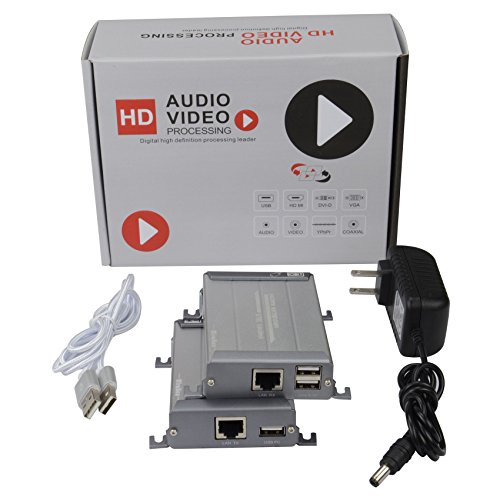

Package Contents: Sender *1 Receiver *1 Power Adaptor *1 USB AtoA Cable *1 Manual *1
Operating Temperature: -20°C - 70°C
Storage Temperature: -40°C - 80°C
Humidity: 20% ~ 90% RH(Non-condensing)
