Notice£º
This NVR does not include 3.5" HDD.
Overview:
The HD NVR security system brings a more heightened level of detail and clarity to your surveillance needs with stunning high definition video providing that crucial peace-of-mind you deserve. The system is optimized with 1280 * 720P color-rich image quality to maximize the clarity and detail of people and actions including recognizing faces£¬ license plate identification and more.
This is a complete network megapixel IP camera system that will satisfy your security needs whether it's for home or for business use. It includes a 4 channel HD network video recorder£¬ four 720P HD weatherproof infrared wireless IP cameras and 4 power supplies for cameras. Mouse and remote control is also included for easy operation.

Features:
* Resolution up to 1280 * 720P.
* With 1/4" Progressive Scan CMOS Sensor.
* 36pcs IR LEDs£¬ IR distance up to 65ft away.
* Multi-Platform View(for IOS£¬ Windows Phone£¬ Android).
* CMS centralized network management software£¬ 256 free access.
* one key to the Internet for remote PC and 3G mobile surveillance.
* Support Video Push Alarm when event occur without a file server connection.
* Conform to Onvif protocol£¬ support operations of Firefox£¬ Chrome£¬ and other browsers.
* Multiplex operation: Digital zoom (both in live view and playback)£¬ preview£¬ recording£¬ playback£¬ backup.
* Many recording modes: Auto-continuing recording£¬ timing recording£¬ motion detection recording.
* Support alarm triggered recording and send alerts matter(some models support sending picture) to the designated email.
* Eighteen languages(English/Finnish/French/German/Greek/Italian/Japanese/Polish/Portuguese/Russian/Spanish/Thai/Simplified Chinese/Chinese-Traditional/Turkish£¬ etc)

Specifications:

IP Camera	Sensor	1/4" OV9712 Progressive Scan CMOS Sensor
	Modules	2pcs of IP Modules
	Effective Pixels	1MP: 1280 * 720
	Video compression Format	H.264
	Minimum illumination	0.15 LUX
	B/W	Yes
	Infrared sensitivity	Yes
	Filter	Yes
	Camera lens	4mm
	Visual angle	85¡ã/ 55¡ã (Horizontal)
	Infrared distance	65feet
	Motion detection	Yes
	Video Parameter	Saturation/Brightness/Contrast adjustable through client software or web browser
	Electronic shutter	1/5-1/15£¬000 sec
	Backlight compensation	Yes
	Aperture	Auto
	White balance	Auto
	S/N Ratio	>50 dB
	Bit rate	80 K ~ 2.0 M bps
	Image frequency	25FPS
	Ethernet	Ethernet(10/100 Base-T)£¬RJ-45 connector
	Protocol	RTSP/RTP/CGI/FTP/PPPOE/DHCP/DDNS/NTP/UPnP
	Web Browser	Microsoft Internet Explorer 6.0 above£¬ Google Chrome£¬ Fi
	SDK	Yes
	Temperature	-30¡ã~ 60¡ãC
	Humidity	-10 ~ 85%
	Power supply	10-12W (DC 12V£¬1A)
NVR	System	Main Processor	High performance embedded microprocessor
		Operating system	Embedded LINUX OS
	Video	Video compression format	H.264
		Display Image Resolution	720P/30fps; 960P/30fps; 1080P/30fps
		Playback Image Resolution	720P/30fps; 960P/30fps; 1080P/30fps
		Motion Detection	Can setup 192(16 * 12)pcs motion detection area Each channeland multi-level sensitivity(1-6 levels adjustable)
		Privacy Masking	Depends on IPC
		Network Video Input	4ch
		Video output	1ch VGA and 1ch HDMI
	Recording	Recording Mode	Manual Recording£¬ Motion Detection Recording£¬ Time Recording£¬Alarm Recording
		Recording storage	HDD£¬ Network
		Frame rate	30 fps NTSC; 25fps PAL
		Recording Playback	Max suport 4ch 960P
		Backup Mode	Support HDD£¬ USB Flash Disk store & backup
	Alarm	Alarm Input	4ch Alarm Input(optional)
		Alarm Output	1ch Alarm Output(optional)
	Other	Network	1 * 10/100Mbps£¬ RJ45 port
		RS485	Standard 485 port£¬ support half-duplex£¬ green terminal port
		USB	2 * USB 2.0 ports
		HDD	Support 1pcs 2TB SATA HDD (Not included)
		Power	DC +12V / 3A
		Power consumption	16W-18W(not include HDD and PoE)
		Operation temperature	0¡æ££«55¡æ
		Operation humidity	10%£90%
	Demension	252 * 213 * 42mm / 10.2 * 8.4 * 1.6in
	Weight	835g / 1.84lb
Package Size	39.5 * 21.5 * 28.5cm / 15.2 * 8.4 * 11.2in
Package Weight	4.3kg / 9.57lb

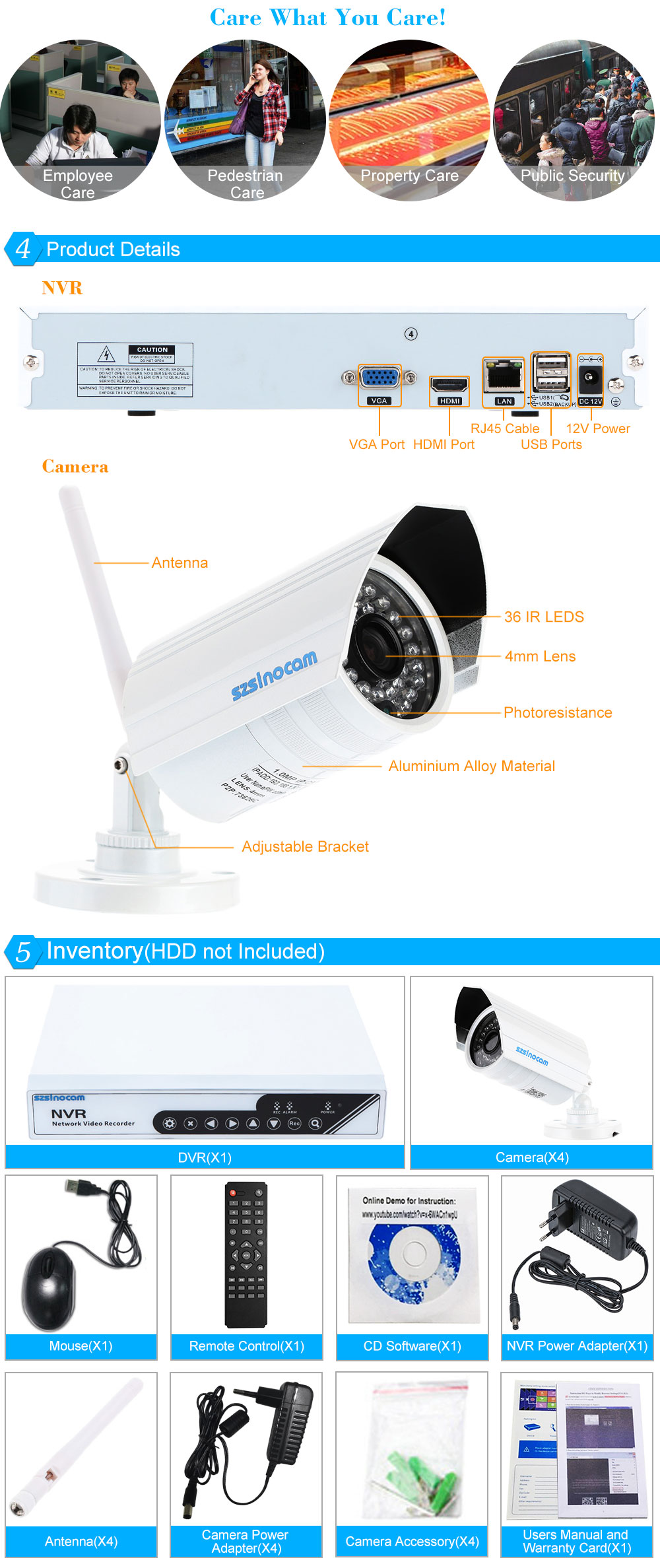

Package List:
1 * H.264 4CH 720P NVR(Hard Drive not Included)
4 * 720P Bullet IP Cameras
4 * Antenna for Cameras
4 * Power Adapters for Cameras(EU Plug)
4 * Accessories for cameras
1 * Power Adapter for NVR(EU Plug)
1 * Mouse for NVR
1 * Remote Control for NVR
2 * CD Software
1 * Users Manual
