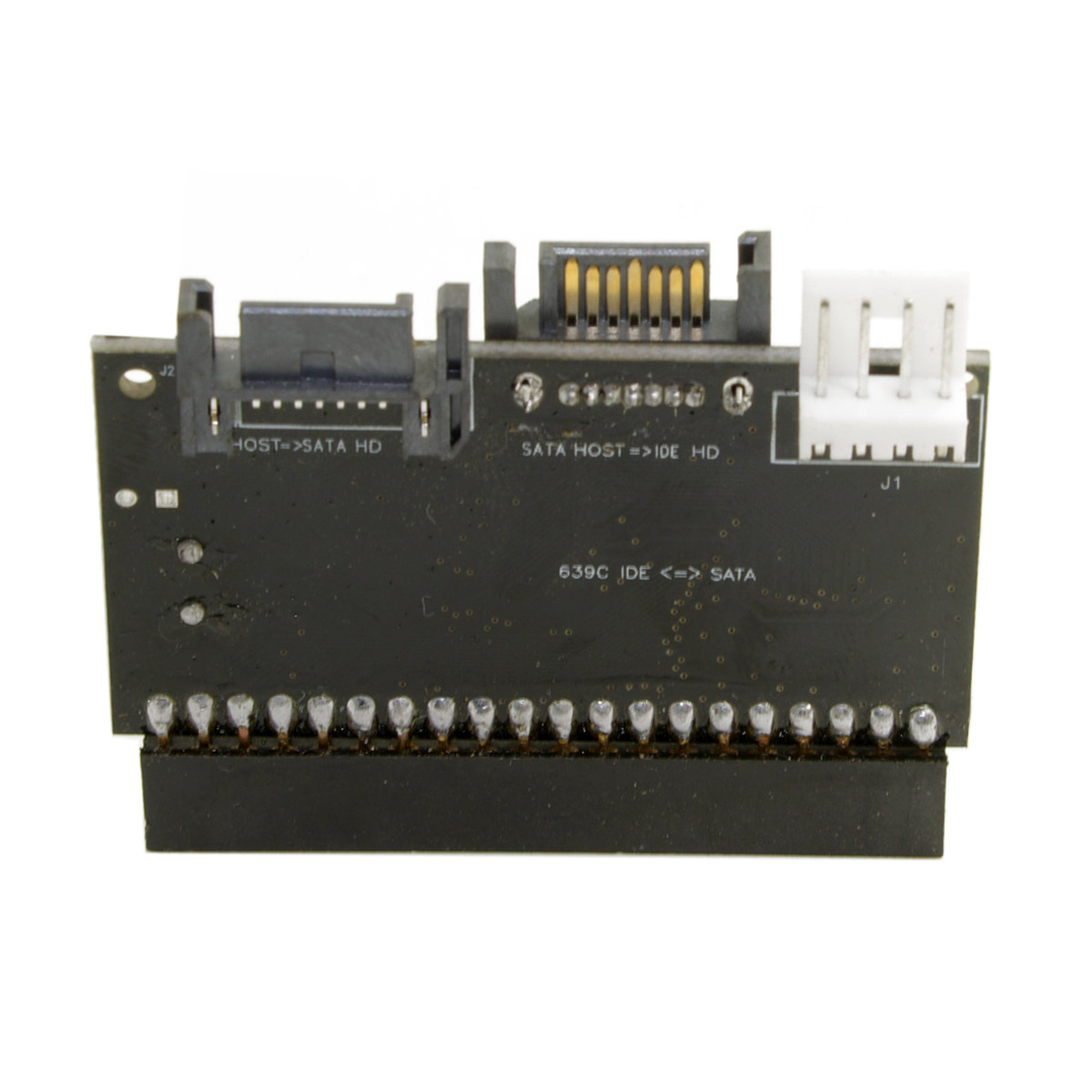

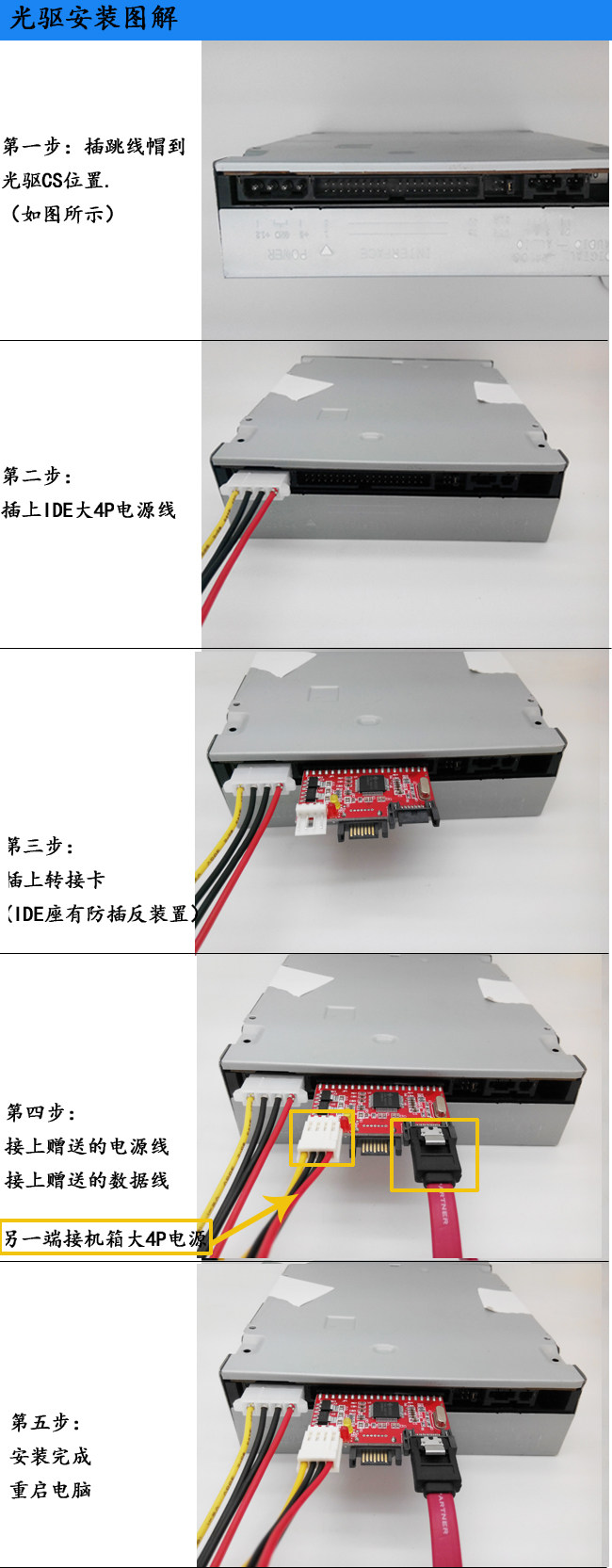

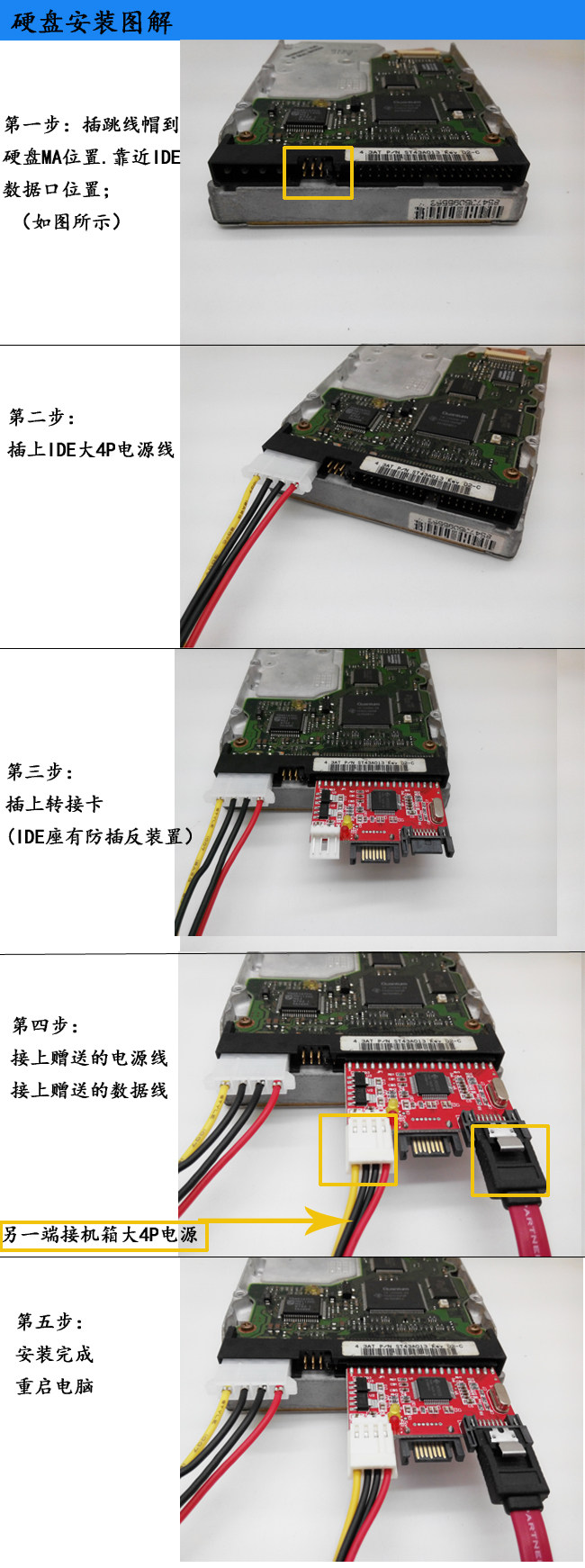

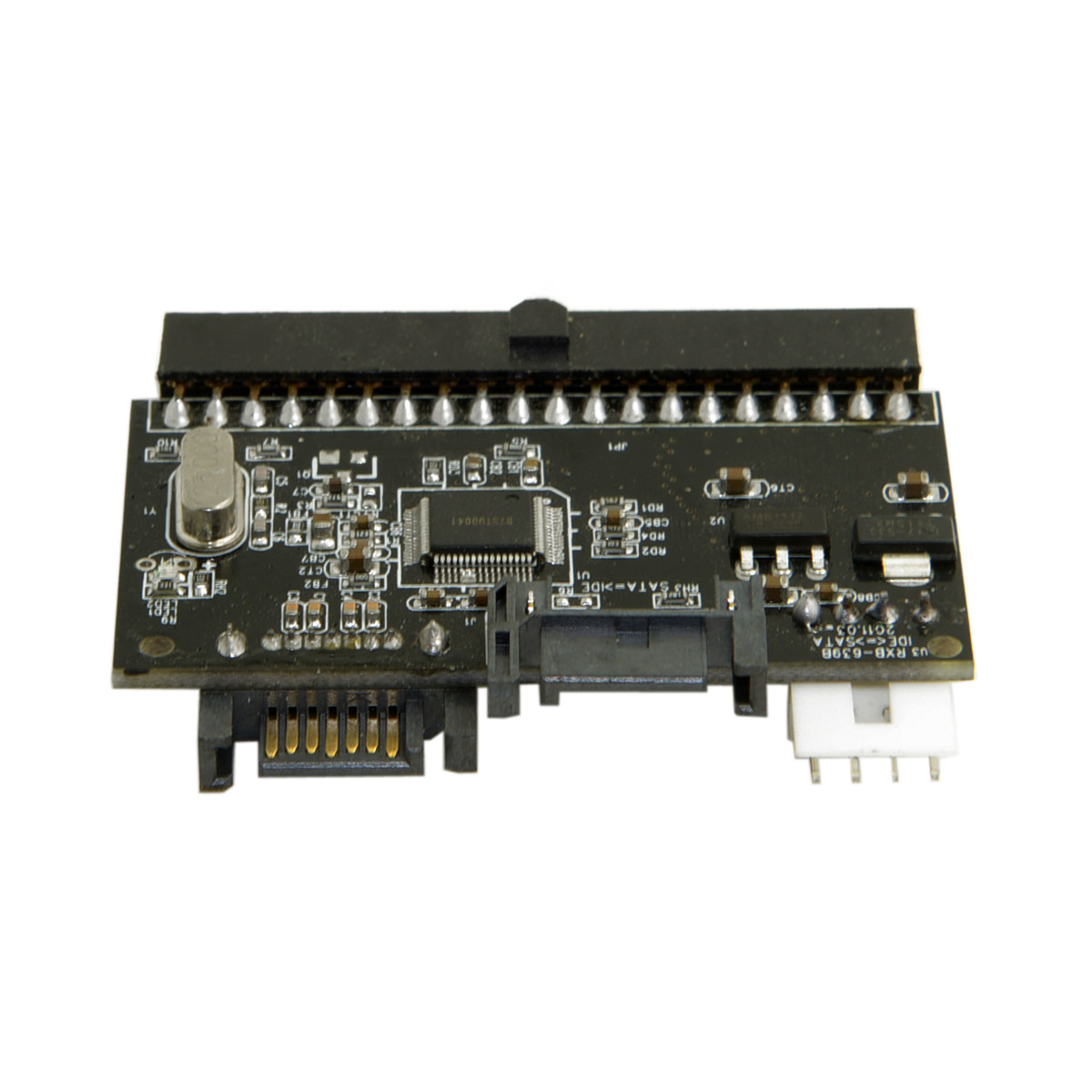

SATA1：SATA主板--IDE设备（即IDE的硬盘使用在SATA的主板上，请将SATA的线接到SATA1接口上，将转换器的IDE口插在硬盘IDE上,用前请将IDE设备的跳线设为MASTER）

SATA2：IDE主板---SATA设备（即SATA的硬盘用在IDE的主板上，将SATA的数据线连接到SATA2上，将转换器的IDE插在主板的IDE上。

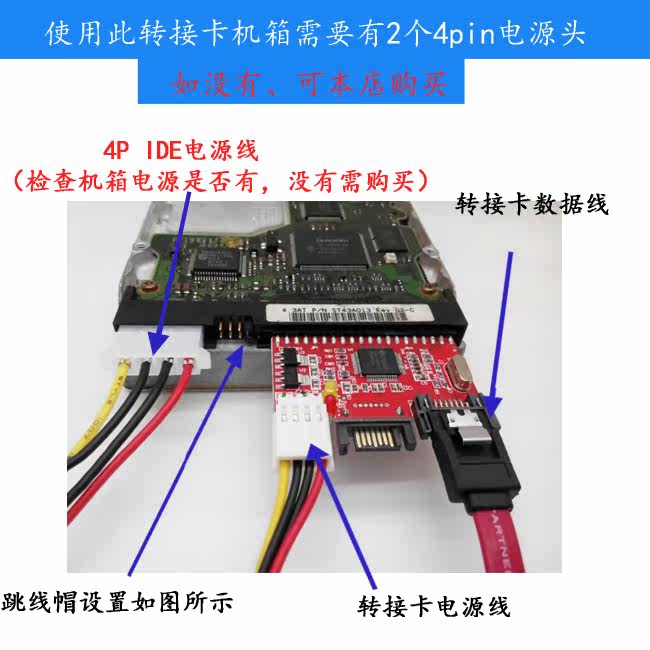

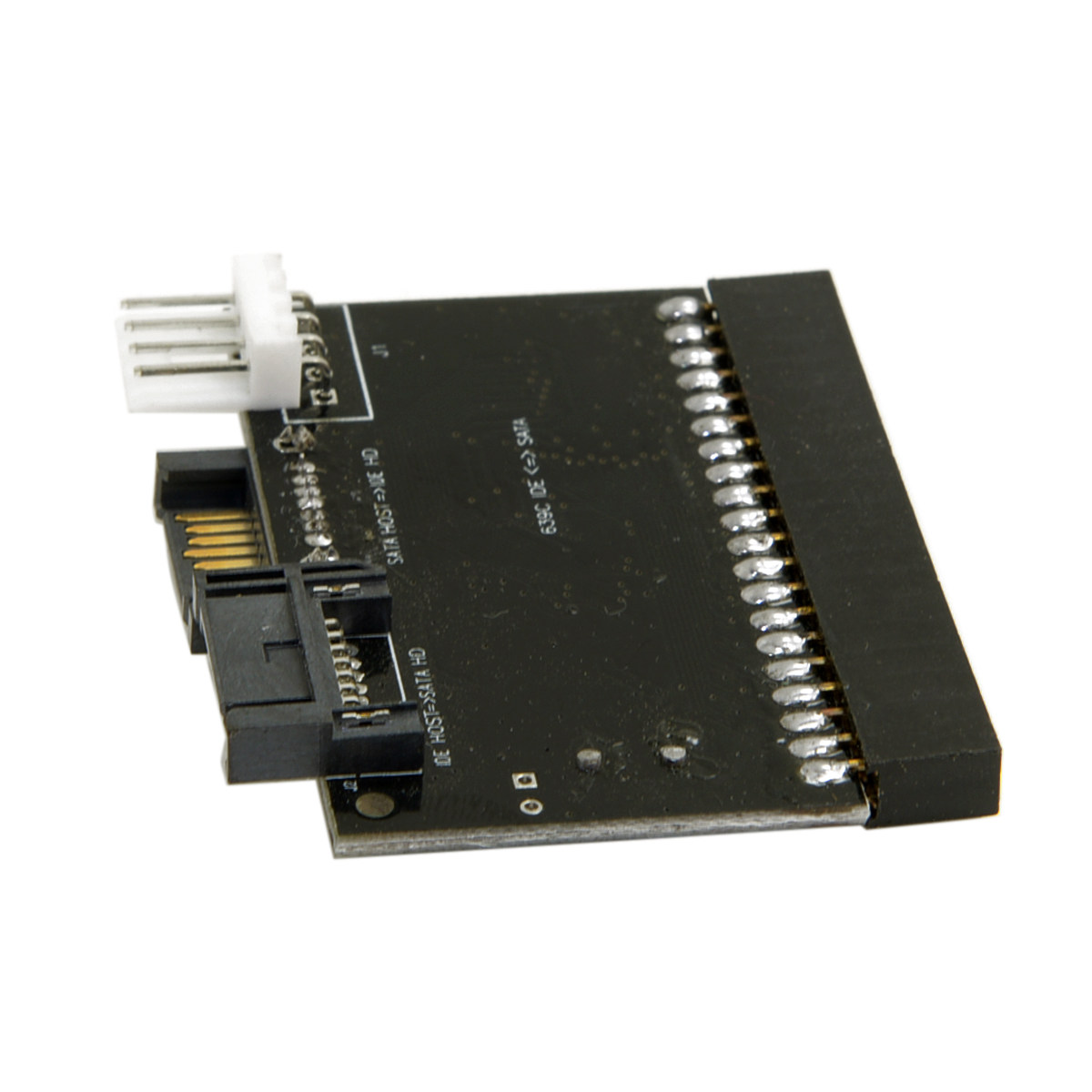

白色的接口为电源接口。

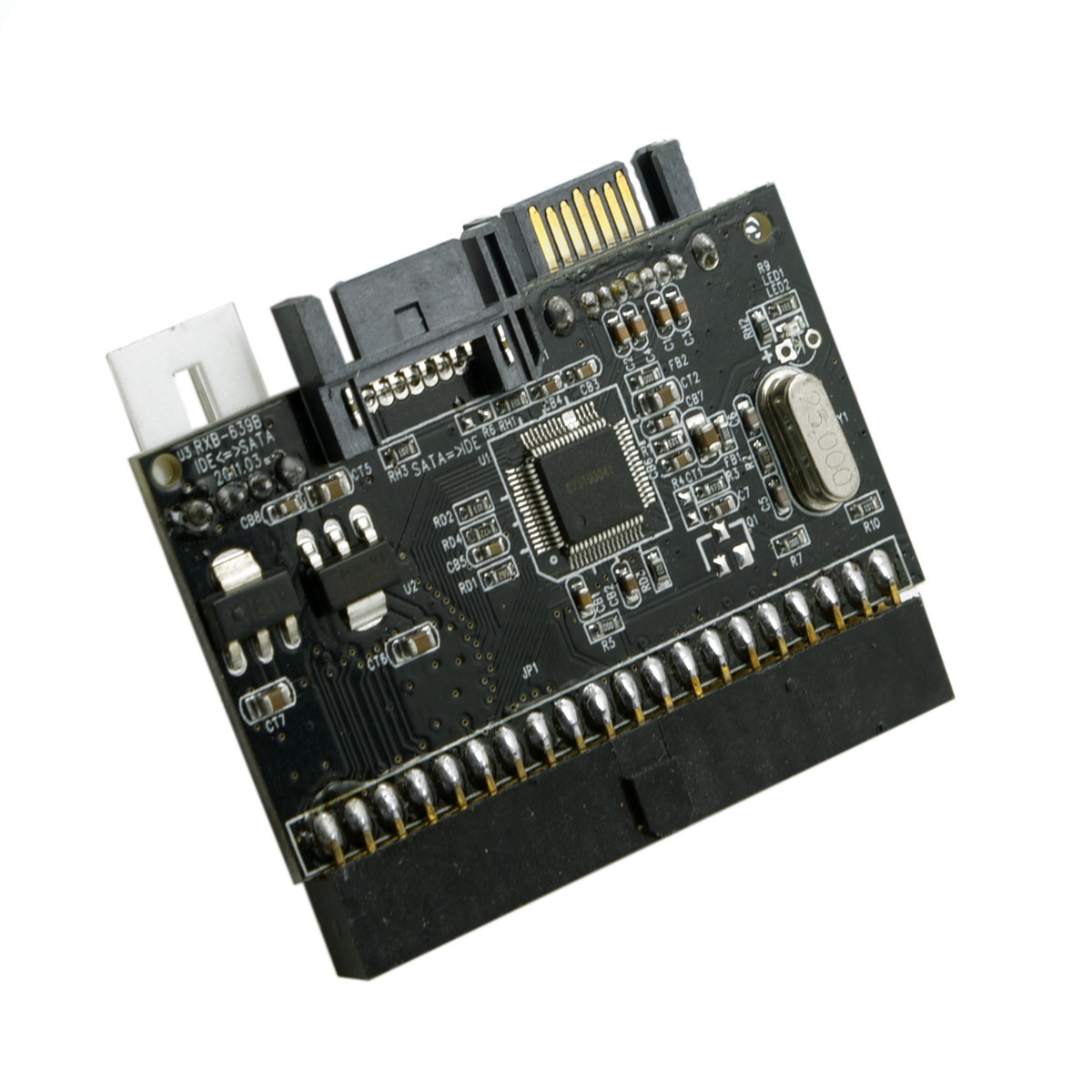

转换卡说明:

支持SATA 100/133 硬盘

支持串行第一代传输率为1.5Gbps(150兆字节/s)

兼容SATA 1.0标准

支持ATA 100/133 硬盘

传输率为1.5Gbps(150兆字节/s)

支持IDE硬盘大于240GB

兼容ATA 1.0标准

SATA1: SATA motherboard - IDE device (IDE hard disk used in the SATA motherboard, please SATA line to the SATA1 interface, the IDE IDE port inserted in the hard disk IDE, please use the IDE device Jumper set to MASTER)

SATA2: IDE motherboard --- SATA device (that is, SATA hard disk used in the IDE's motherboard, the SATA data cable connected to SATA2, the IDE converter plugged into the motherboard IDE.

White interface for the power connector.



Conversion Card Description:

Support SATA 100/133 hard drive

Support serial first-generation transfer rate of 1.5Gbps (150 megabytes / s)

Compatible with SATA 1.0 standard

Support ATA 100/133 hard drive

Transfer rate of 1.5Gbps (150 megabytes / s)

Support IDE hard disk is greater than 240GB

Compatible with ATA 1.0 standard
