Item Descriptions:

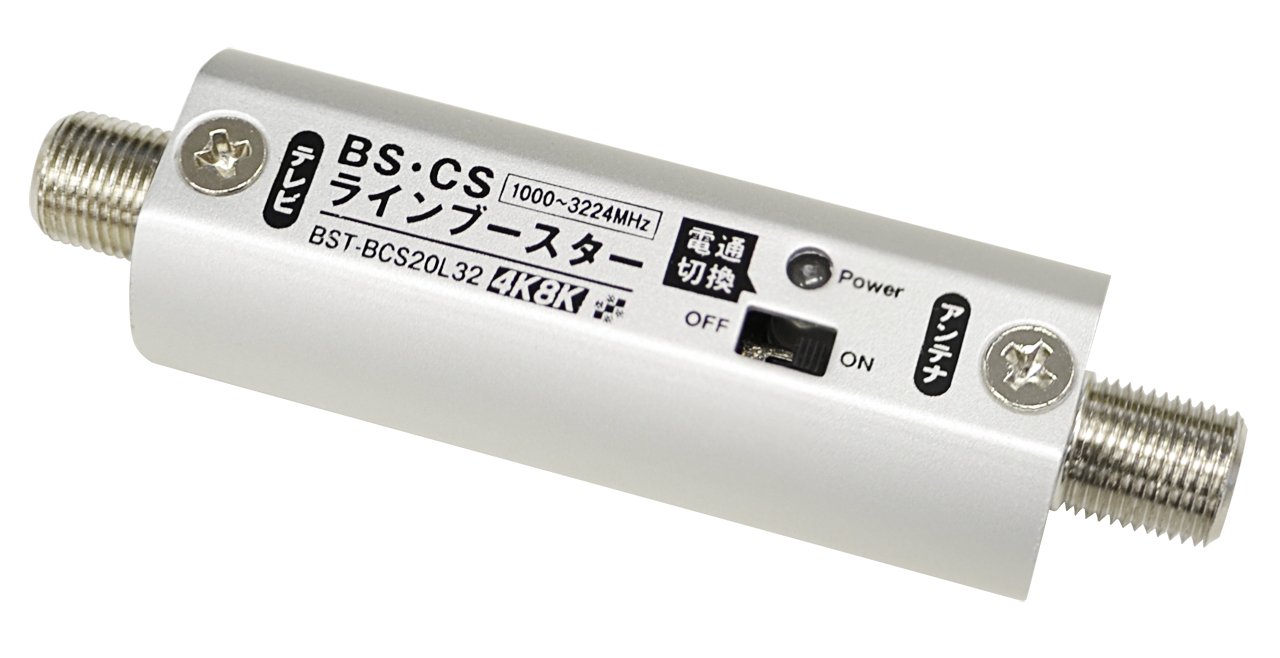

BS · CS It is a line booster that amplifies the signal of BS · CS broadcast (satellite broadcasting) corresponding to left-turn broadcasting (3224 MHz).
Please use it when satellite broadcast signal is weak.
■ Gain: 20 dB or more (950 to 2150 MHz) / 18 dB or more (2150 to 3224 MHz)
■ Noise figure (NF): 7 dB or less
Pass band insertion loss: -3 dB or less (76 to 710 MHz)
■ Convenient double-sided tape is attached at installation.
Since the adhesive strength of double-sided tape is strong, please be careful when pasting it on wallpaper etc, since the wallpaper may peel off at the time of detaching.
※ This product operates with power sent from equipment such as TV · recorder.
Please confirm that the equipment setting is in the state to send power.

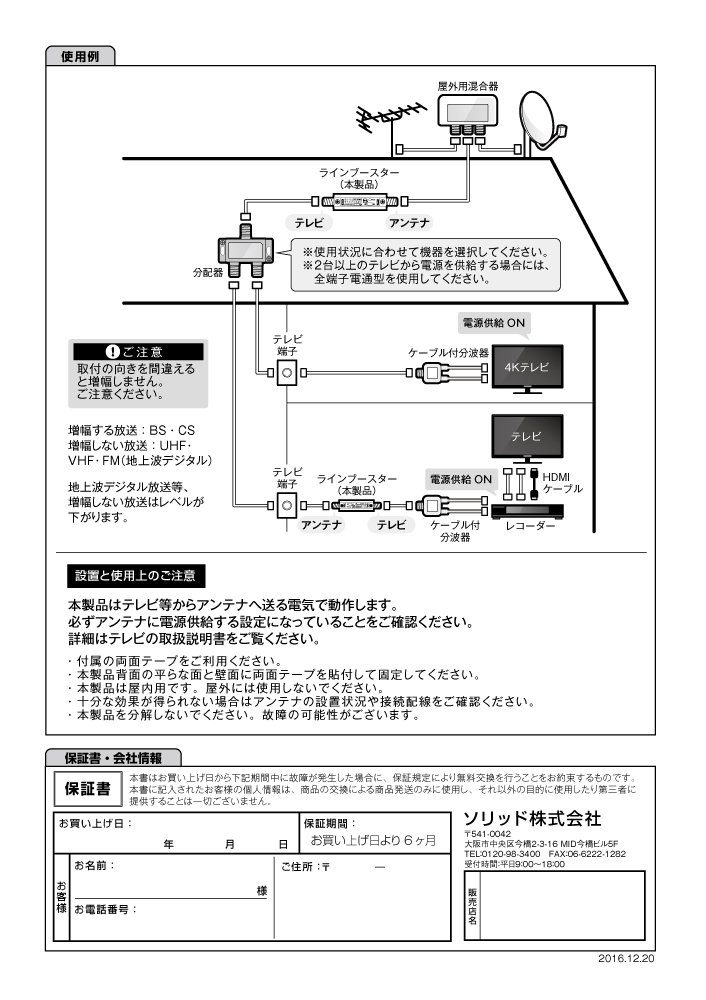

※ The booster should be located close to the antenna on the transmission line.
If installed near the TV or recorder, the noise component may also be amplified, and the reception condition may be deteriorated instead.
* The reception level display of the equipment such as television and recorder is the standard value when adjusting the antenna.
Even if you use this product, the number displayed may not always be large.
* Depending on the reception condition of the antenna and the state of the wiring of the building, even if you use the booster, the full effect may not be obtained.
* Depending on the type of broadcasting service, the frequency used as carrier wave of BS · CS broadcasting may differ from normal (950 to 2150 MHz).
Features:
- Please enter model number Confirm this is compatible:
- It amplifies BS · CS broadcast signal.
- BS · CS Corresponds to frequency 3224 MHz used for left-turn broadcasting.
- Gain: 1000 to 2150 MHz · · · 20 dB or more, 2150 to 3224 MHz · · · 18 dB or more, insertion loss: 76 to 710 MHz · · · -3 dB or less, noise figure: 7 dB or less
- Impedance: 75 Ω, Operating power supply: DC 9.5 to 16.5 V / 45 mA, current passing (maximum): DC 9.5 to 16.5 V / 500 mA, operating temperature: -20 to + 50 ° C
- Body size ··· Full length: 83 mm, OD: 22 mm, Weight: 46 g

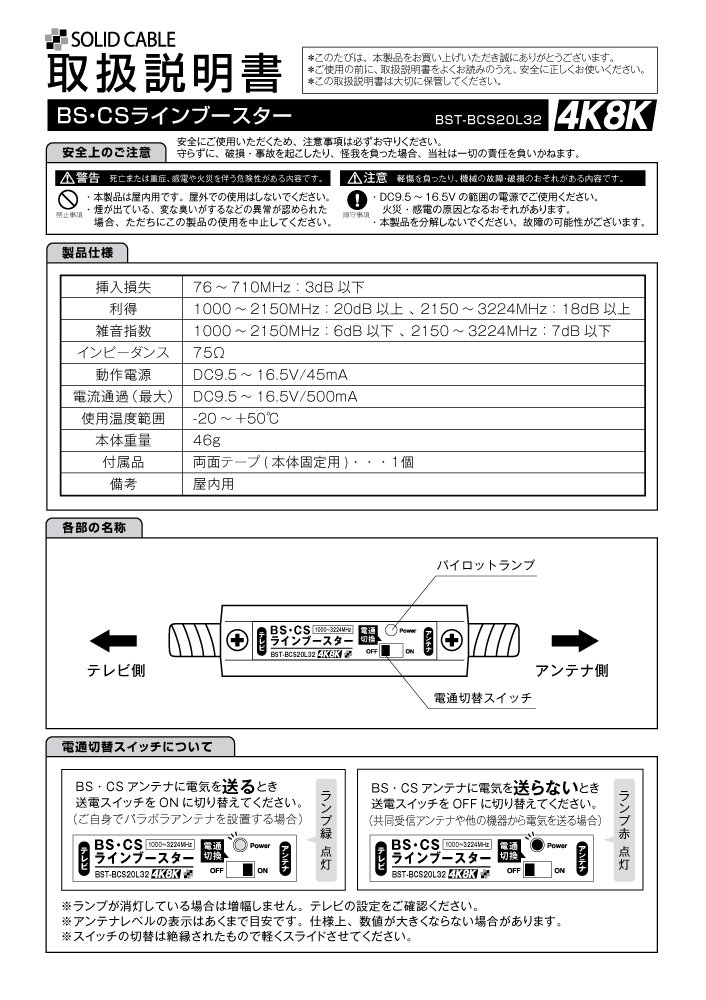

- Accessories: 1 instruction manual, double-sided tape (1 sheet)
Product information:
Shipping Weight: 40 g
Package Dimensions: 2.31 x 3.10 x 9.19 cm
