Product Description

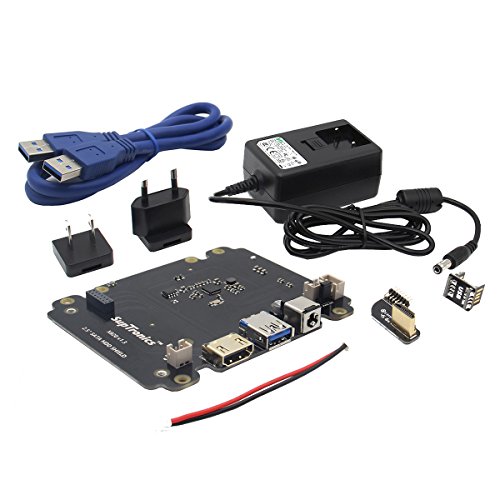

[Packing List]
1 x DC 5V 4A Power Adapter(with EU/US Plug)
1 x X820 Expansion Board
1 x 2 Pin Power Connection Wire(Cable: 10cm)
1 x USB 3.0 Cable (80cm/2.62inch)
1 x USB connector
1 x HDMI Adapter

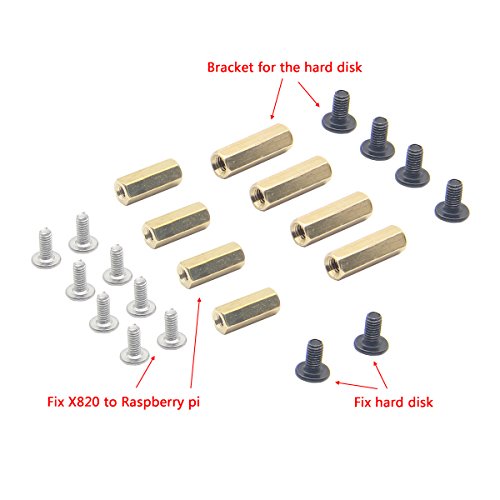

1 x Install Screws pack
(The raspberry Pi 3 Model B board is unincluded, please refer to here: RS Raspberry Pi 3 Model B Board)

[Overview]

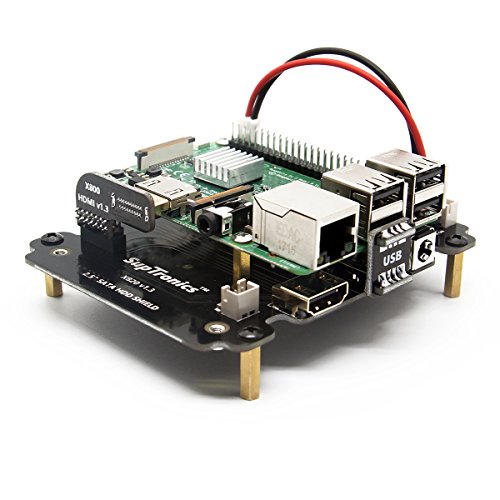

The X820 expansion board provides a complete storage solution for raspberry pi;
For Use With: Raspberry Pi 3 Model B/ 2B / B+
Support USB 3.0 / 3.1 Gen1
Operating System: All Raspberry Pi operating systems
Power Supply Unit(Optional Accessories): please refer to sku: 5V 4A power supply

[Features]
- Supports upto 4TB 2.5-inch SATA hard disk drives (HDD) / solid-state drive (SSD)
- Ideal storage solution for Raspberry Pi
- USB 3.1 Gen1 to SATA 6Gb/s Bridge Controller
- USB 2.0 connectivity offers plug-and-play functionality on your Raspberry Pi
- Quick file transfer with high-speed USB 3.0 connectivity from a PC or a Mac
- External Self Powered - Do not require power from Raspberry Pi USB port
- Powers the Raspberry Pi - no additional power supply for RPi
- Duplicated Raspberry Pi HDMI port

[Specification] - Power supply: +5V 4A dc +/-5%
- Output Ports: 1 x HDMI, 1 x USB , 1 x DC jack

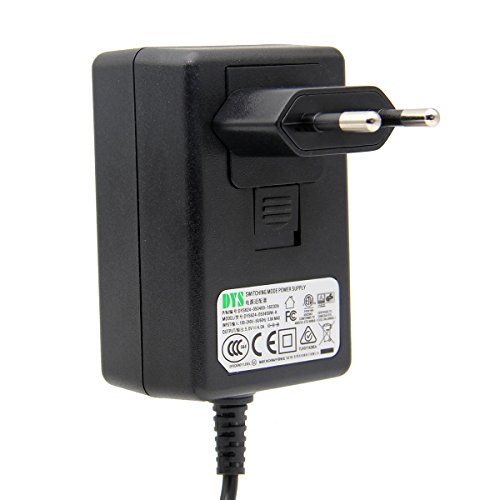

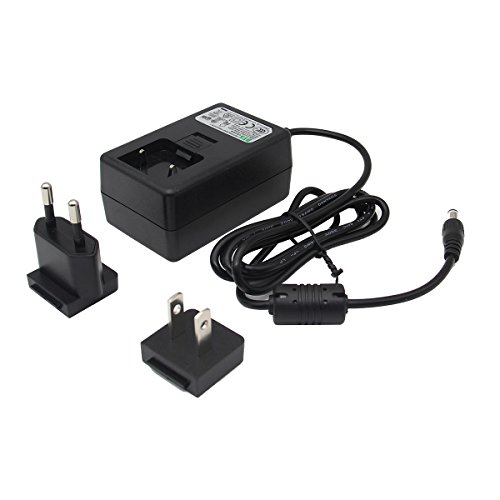

[Power Adapter Features]
- Interface: DC 5.5x2.5 mm
- Input: AC 100V - 240V,~50 / 60Hz;
- Output: DC 5V 4A;
- With 2 exchangeable plugs (US Plug and EU Plug);
- Passed the CE certification;

[For more details, please refer to WIKI Page]
http://www.raspberrypiwiki.com/index.php/X820

Feature

The X820 expansion board provides a complete storage solution for raspberry pi, only 2.5 inch SATA interface HDD/SDD hard disk is suitable for X820 Board;
Supports upto 4TB 2.5-inch SATA hard disk drives (HDD) / solid-state drive (SSD);
Upgraded to USB3.1 Gen1 port(SupportS USB 3.0) w/ high quality USB3.0 cable, Quick file transfer with high-speed USB 3.0 connectivity from a PC or a Mac;
Power Adapter: DC 5.5x2.5 mm; AC 100V - 240V,~50 / 60Hz input, DC 5V 4A output,With 2 exchangeable plugs (US Plug and EU Plug);
For Installation & more details, please refer to our WIKI: http://www.raspberrypiwiki.com/index.php/X820
Brand : Geekworm
Item model num : X820
MPN(PartNumber) : TB-2017-29
EAN : 0642940884809
Product Dimensions(LxWxH) : 16x9x9cm ; 281 g
Package Dimensions(LxWxH) : 16x9x9cm ; 281 g
