Product Description

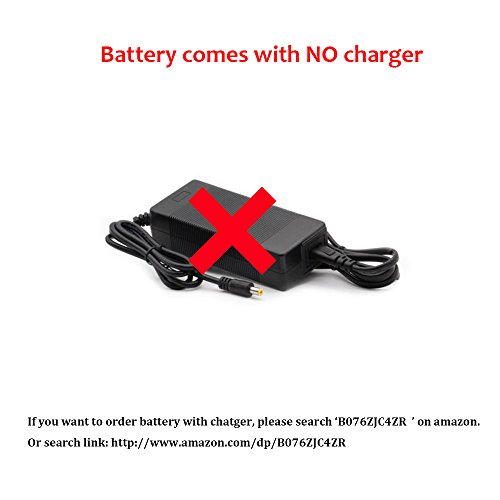

Note：This item is not including the charger.

Fast delivery:

We have warehouse in Los Angeles. Your order will be arrange shipment within 24hours from Monday to Friday.

Order on weekend will be arrange shipment on Monday. You can receive the goods in 2-6 working days after shipment.

Specification:

Battery Type:BOTTLE Lithium-ion

Rated Voltage / capacity:36V / 10Ah

Battery N.W/G.W: 3.22KG/3.62KG

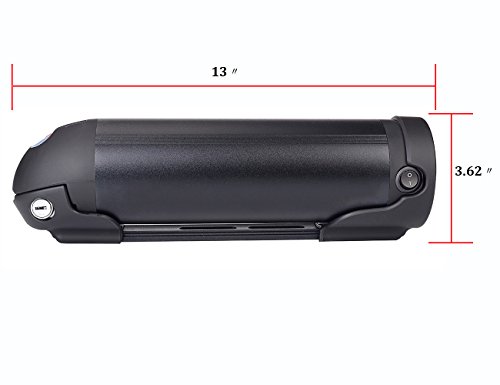

Battery Size（mm):

D90*H340

Case Material:ABS Aluminium alloy

Battery Color:Black

Batteries combinations:10-S,5-P

Component: Li(NiCoMn)O2

Cell quality: 18650-2000mAh

Impedance: ≤150mΩ

Recommend to use:200W-350W

Discharge Standard current:10A-13A

Discharge Max current:28A-30A

Discharge Cut-off voltage:30V

Discharge cycle life:800 times

Discharge method :Bottom discharge

Fuse Installation position:Inside on the PCB

Fuse Diameter(mm):5

Fuse Length(mm):30

Fuse Current: 30A

Certification:

CE,RoHS,MSDS

Working temperature:?

Charging:0°C~45°C

Discharging:-20°C~60°C

Storage:0°C~30°C

Safety:

PCB board Protection:Over charge,over discharge,over load and short circuit.

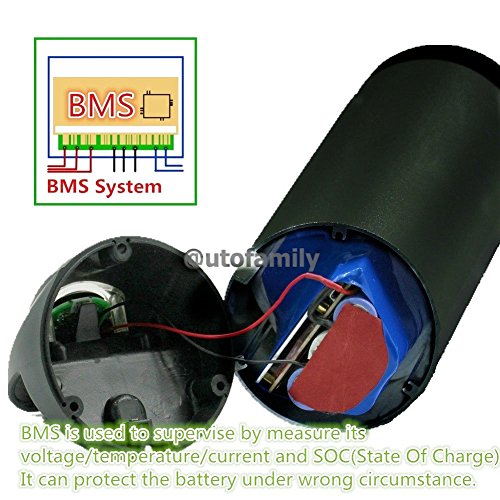

BMS board Protection:BMS is used to supervise battery by measure its voltage, temperature, current and SOC (State Of Charge), give out alarm under wrong circumstance, cut off electric power link in severe situation in order to protect battery and make its life longer. BMS can balance energy among batteries to make them more identical and expand its discharge cycle.

Parts included:

1 x Lithium Battery（Cannon Head）with Aluminum case(Base discharge)
