Product Description
Specifications:

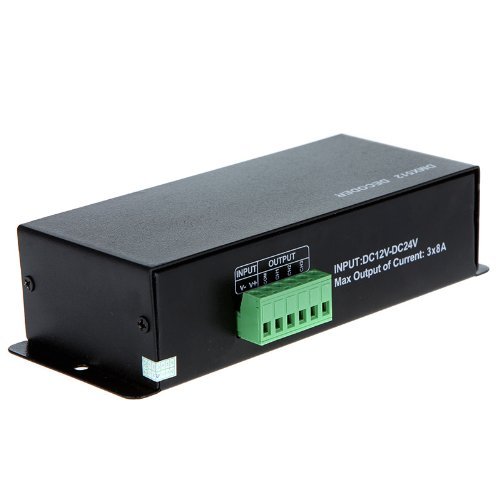

Input voltage: DC12~24V
Max output current: 8A (each channel)
Max output power: 288W~ 576W
Output: 3CH
Connection mode: Common Anode( )
Working temperature: -20-60℃
Material: Metal
Product size: 16.5 * 6.5 * 4cm/ 6.5 * 2.6 * 1.6in
Product weight: 310g/ 10.9oz
Package size: 18 * 7.7 * 5cm/ 7.1 * 3.0 * 2.0in
Package weight: 400g/ 14.1oz

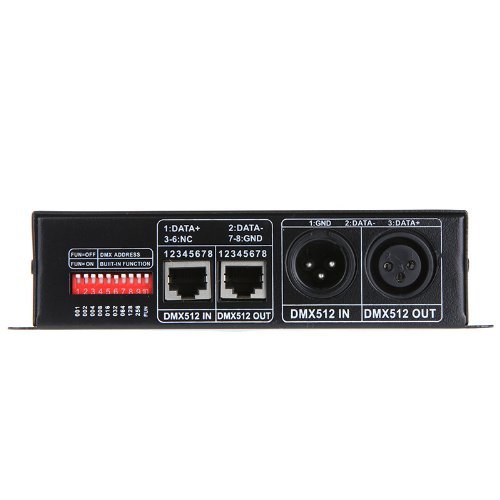

1. DMX signal can be received when FUN(10)=OFF.
2. Built-in function is activated when FUN(10)=ON, the following functions can be set using address codes DIP switch.

Mode selection:
No. 1 2 3 4 Mode No. 1 2 3 4 Mode 0 0 0 0 0 OFF 8 0 0 0 1 3 color jump 1 1 0 0 0 Static ree 9 1 0 0 1 7 color jump 2 0 1 0 0 Static green 10 0 1 0 1 3 color gradual 3 1 1 0 0 Static blue 11 1 1 0 1 7 color gradual 4 0 0 1 0 Static yellow 12 0 0 1 1 Red green color change 5 1 0 1 0 Static purple 13 1 0 1 1 Red blue color change 6 0 1 1 0 Static cyan 14 0 1 1 1 Blue green color change 7 1 1 1 0 Static white 15 1 1 1 1 7 color smooth Speed selection (at dynamic mode) :
No. 5 6 7 8 9 Speed No. 5 6 7 8 9 Speed 0 0 0 0 0 0 0 Steps 8 0 0 0 1 0 8 Steps 1 1 0 0 0 0 1 Steps 9 1 0 0 1 0 9 Steps 2 0 1 0 0 0 2 Steps 10 0 1 0 1 0 10 Steps 3 1 1 0 0 0 3 Steps 11 1 1 0 1 0 11 Steps 4 0 0 1 0 0 4 Steps ..... ..... ..... ..... ..... ..... ..... 5 1 0 1 0 0 5 Steps 29 1 0 1 1 1 29 Steps 6 0 1 1 0 0 6 Steps 30 0 1 1 1 1 30 Steps 7 1 1 1 0 0 7 Steps 31 1 1 1 1 1 31 Steps
Note:
"1"="ON"; "0"= OFF

Package list:

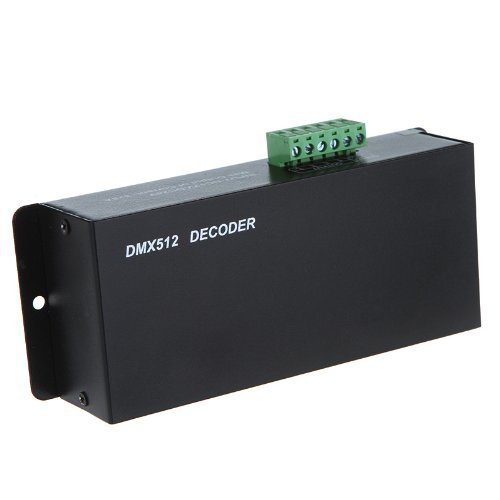

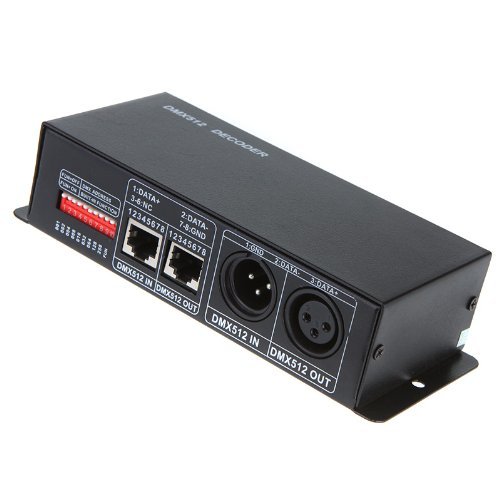

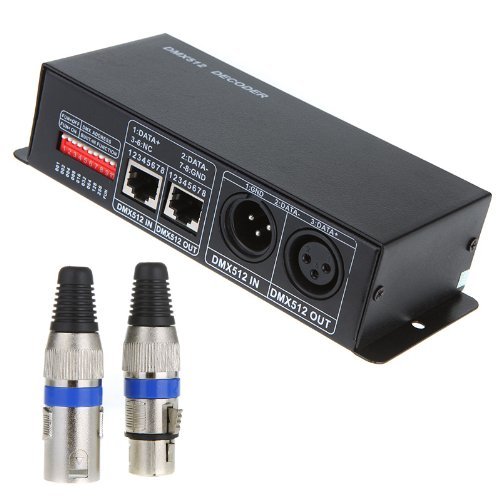

1 * DMX decoder
