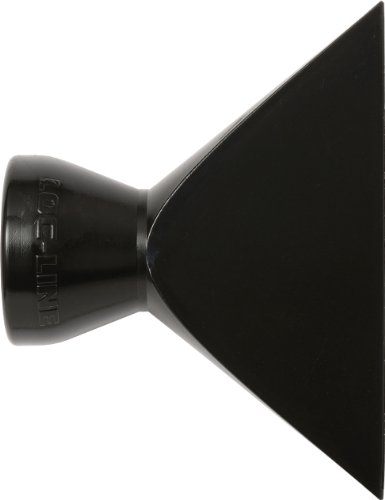

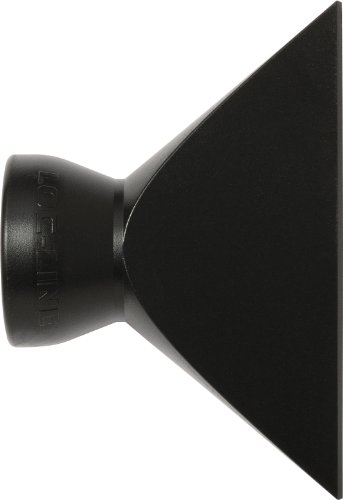

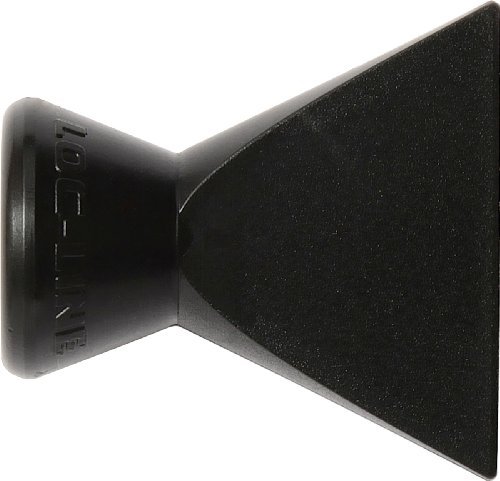

Loc-Line Coolant Hose Component, Black Acetal Copolymer, Flare Nozzle, 1-1/4" Width, 1/2" Hose ID (Pack of 20)
Product Description
The Loc-Line flare nozzle hose fitting is made of black acetal copolymer plastic, connects to Loc-Line modular hose and fittings, and has an extra-wide center and straight edges for outlet flow over a wide area. The acetal copolymer plastic resists corrosion and moisture and can be used with acetone, alcohol, ethyl, greases, oils, commercial dish detergents, gasoline, lacquer solvents, and sodium hydroxide. The fitting has a maximum operating temperature of 170 degrees F. The material meets National Sanitation Foundation (NSF)/American National Standards Institute (ANSI) 14, 51, and 61 specifications for use with drinking (potable) water, and complies with Registration, Evaluation, Authorization of Chemicals (REACH) and Restriction of the Use of Certain Hazardous Substances (RoHS) standards. The component connects to other Loc-Line components by a ball-and-socket design that snaps together for a tight seal.
| Specifications | |
|---|---|
| Maximum Pressure, 1/4" Inner Diameter | 30 psi (up to 110 psi with element clamp) |
| Maximum Flow, 1/4" Inner Diameter | 250 gallons/hour |
| Maximum Pressure, 1/2" Inner Diameter | 20 psi (up to 110 psi with element clamp) |
| Maximum Flow, 1/2" Inner Diameter | 478 gallons/hour |
| Maximum Pressure, 3/4" Inner Diameter | 10 psi |
| Maximum Flow, 3/4" Inner Diameter | 1,140 gallons/hour |
Lockwood Products manufactures the Loc-Line modular hose system of low-pressure hose and couplings used for coolant, air delivery, smoke and dust removal, and other applications. The company, founded in 1981, is headquartered in Lake Oswego, OR.
Feature
Flare nozzle has an extra-wide center and straight edges for outlet flow over a wide area
