Product Description

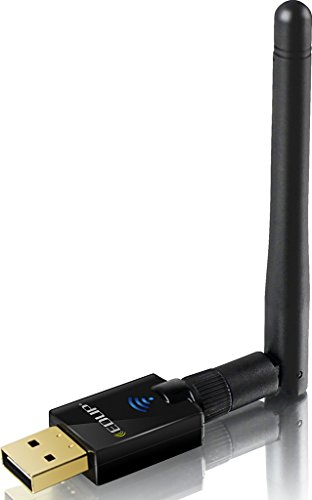

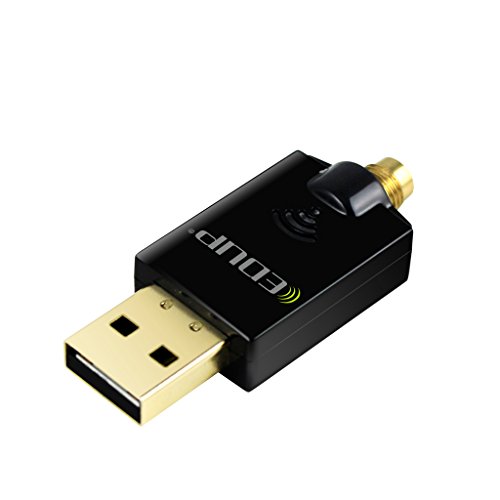

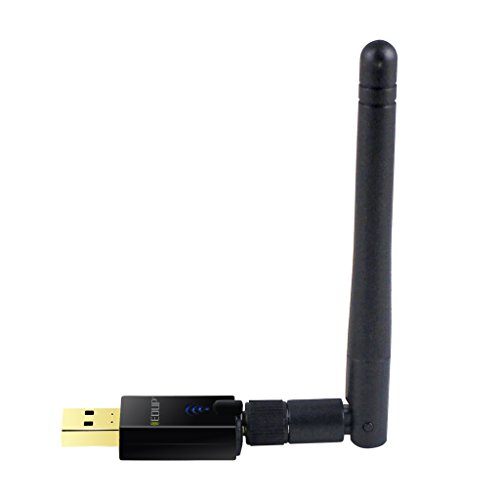

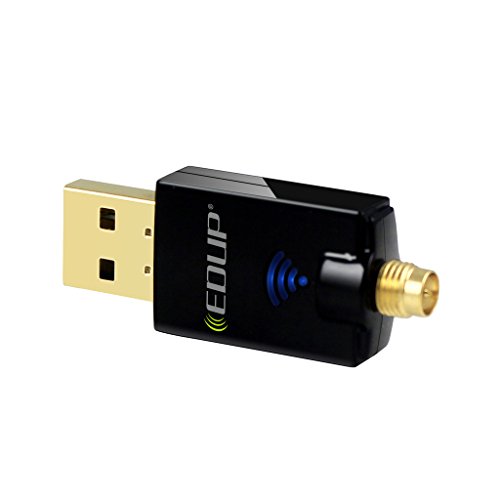

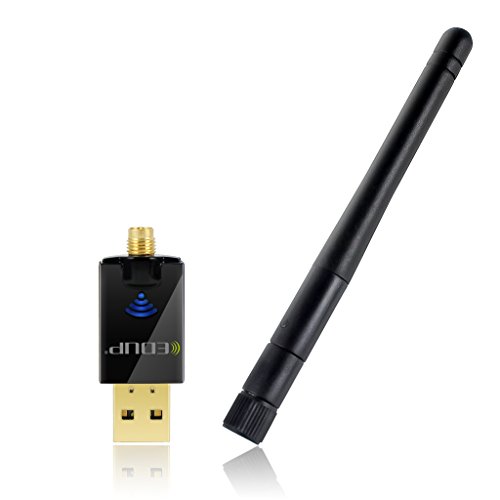

EDUP EP-DB1607 Wireless Usb Adapter ac600 2.4GHz/5.8GHz Dual Band Usb Adapter 2dBi External Antennas 600Mbps Specification: Wireless Standards
IEEE 802.11n
IEEE 802.11g
IEEE 802.11b
IEEE 802.11ac
IEEE 802.11a
Max. Transmit Speed
2.4GHz: 150Mbps
5.8GHz: 433Mbps
Frequency Range
2.412~2.472GHz/ 5.725~5.825GHz (3C)
2.412~2.462Ghz/ 5.15~5.35GHz/ 5.725~5.825GHZ (FFC)
Work Channel
13 at 2.4GHz/ 4 at 5.8GHz (3C)
11 at 2.4GHz/ 12at 5.8GHz (FFC)
Modulation Model
CCK/OFDM/DBPSK/DQPSK/16QAM/64QAM/256QAM
Work Power:17dBm (Typical)
Sensitivity
11n: -68dBm@130M; -68dBm@108M
11g: -69dBm@54M
11b: -85dBm@11M
11ac: -59dBm@867M
Wireless Security
WPA/WPA2,64/128 bit WEP
Support Operation System:Window 2000/XP/Vista/WinCE/Win7/Win8/Mac OS/Linux
Function:WPS, Soft AP
Antenna Type:2dBi Omni-directional Antennas
Environment
Operating Temperature(degree Celsius): 0~40
Storage Temperature(degree Celsius): -40~70
Operating Humidity: 10% ~ 90% RH (Non Condensing)
Storage Humidity: 5% ~ 90% RH (Non Condensing)
Packing list: 1 * usb wifi adapter
1 * CD driver
1 * instruction
1 * warranty card
Feature
Upgrades PCs to 802.11ac, the latest & most powerful Wi-Fi technology - 3 times faster than wireless N speeds. Ideal for gaming online and seamless HD video streaming
Up to 600Mbps Wi-Fi speeds on 5.8GHz (433Mbps) and 2.4GHz (150Mbps) bands. Dual band reduces interference for better connections to more Wi-Fi devices
This dual band wireless usb adapter downward compatability 802.11g/n Internet device
802.11ac Wi-Fi technology and detachable 2dBi omni-directional dual band antenna for increased coverage and stability
Use Roaming technology, promise high effective wireless connect
Brand : EDUP
Item model num : EP-DB1607
MPN(PartNumber) : EP-DB1607
EAN : 0744430500456
