Product Description

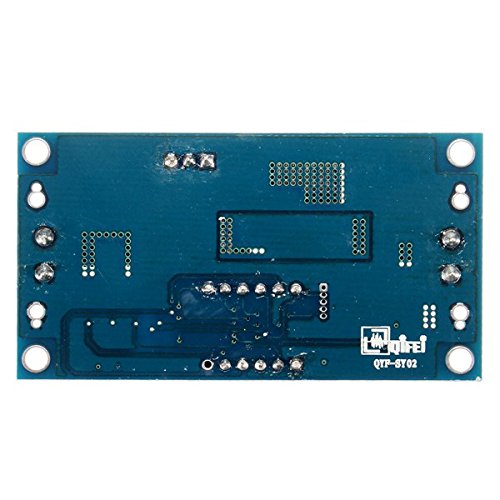

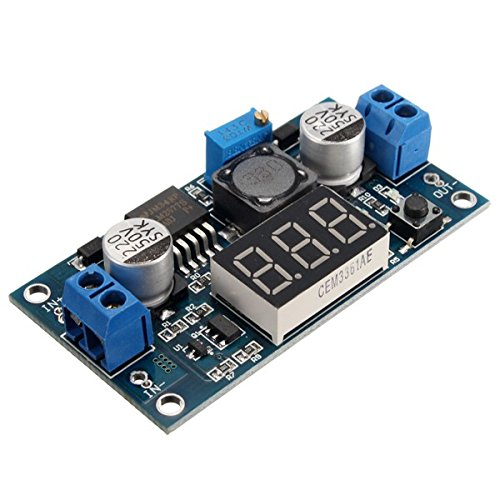

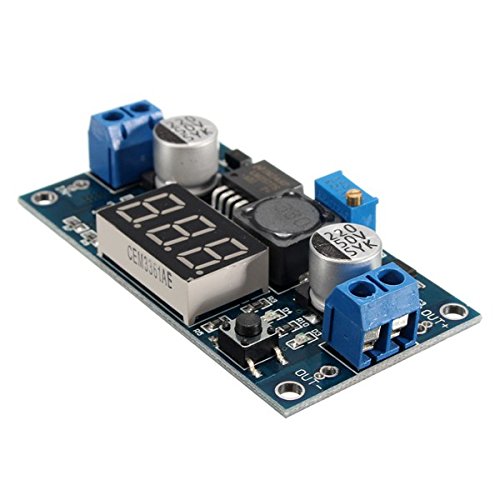

DC-DC 3-34V to 4-35V LM2577 Boost Power Supply Step-up Module LED Voltmeter

Specification:

1. Module nature: Non isolated boost module
2. Input voltage: 3-34V
3. Output voltage: Continuously adjustable (4-35V)
4. Output current: 2.5A (MAX)
5. Input current: 3A (MAX)
6. Module size: 49 (mm) x 26 (mm)
7. Input mode: IN input positive stage, IN- input negative pole
8. Output mode: OUT output positive stage, OUT- output negative pole
9. Adjustment mode: First, the correct connection between the input power supply (3-34V,) and then use a meter to monitor the output voltage and adjust the potentiometer
10. Output voltage: 4-35V continuously adjustable

Package includes:

1 x LCD lm2577 module
