Item Descriptions:

color:

white

3 in 1

It can correspond to 3 types of output with 1 unit

.

Convenient video terminal conversion adapter.

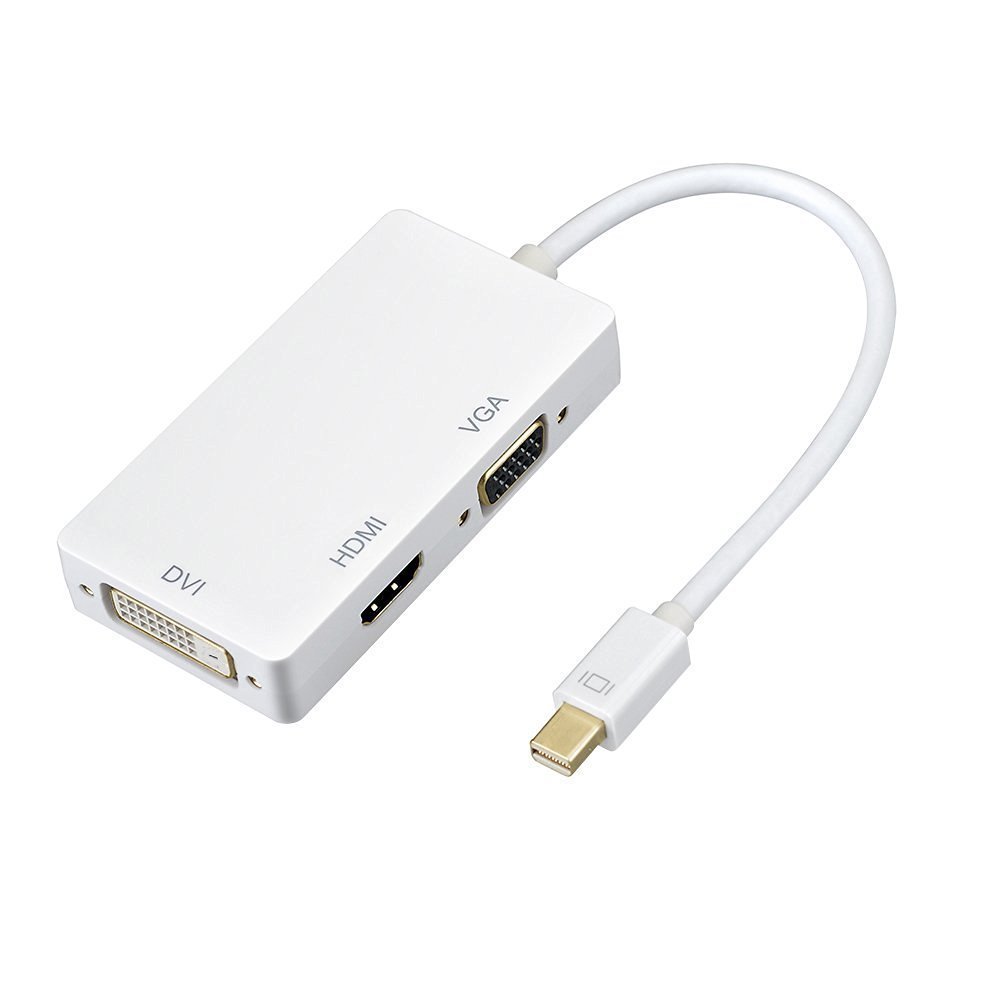

It converts Mini DisplayPort (MiniDP) signal to DVI / HDMI / VGA signal.

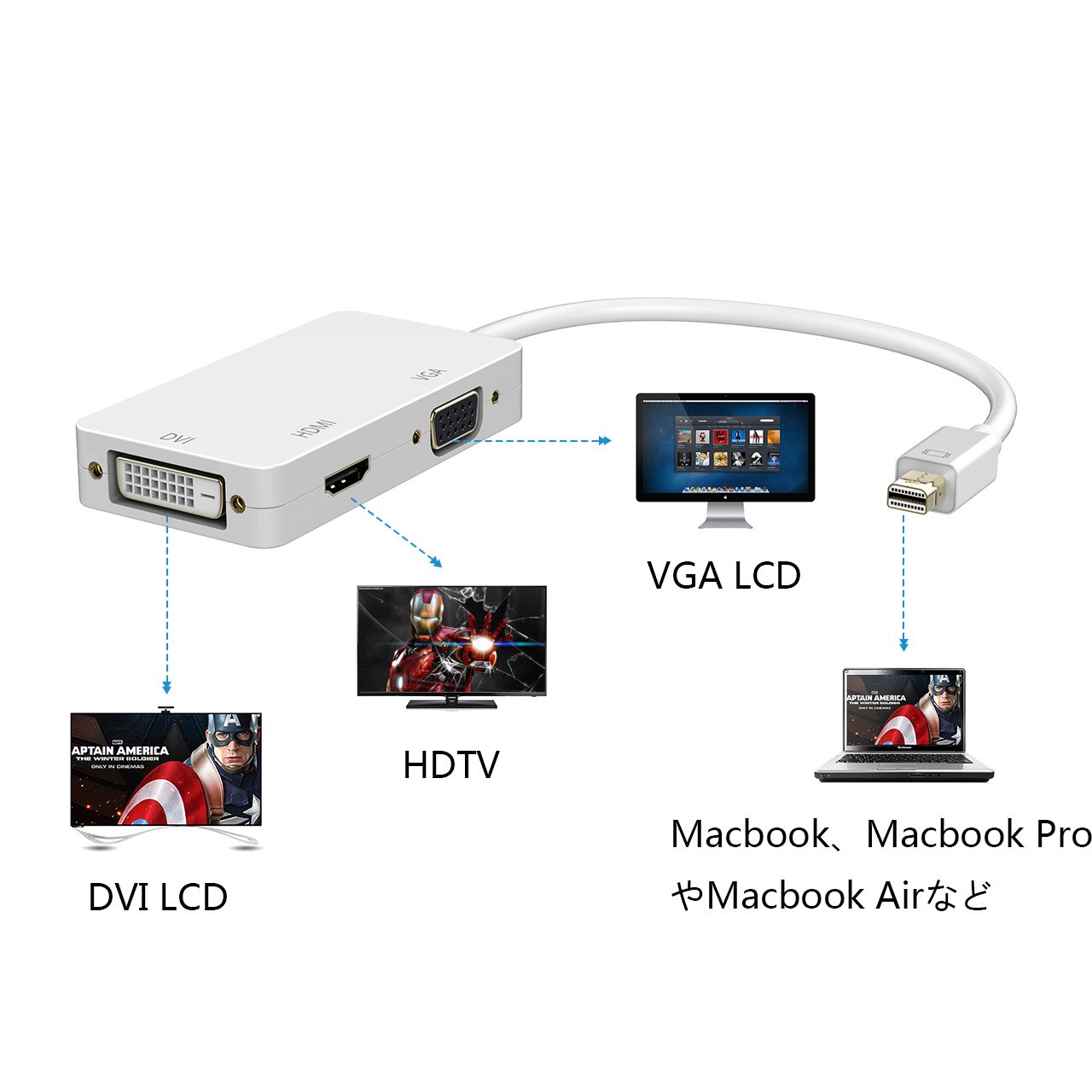

You can enjoy large screen shows, movies, PPT by connecting to HDTV, monitor, projector, LCD display etc. with DVI and HDMI or VGA port.

Easy to use

It is easy to use, servicing Plug and Play, no need for an external power supply.

Supplies power from a mini display port source.

It is lightweight and portable design that carries it anywhere and is very convenient for use.

High resolution

We will support the maximum resolution 1920 x 1080 p @ 60 Hz (1080 p).

The transfer speed reaches 225 MHz / 2.25 Gbps.

Continue to iMac (Late 2009), Mac Book Pro (Mid 2010) and HDMI display and set "Audio" in the "System Preferences" dialog box to support audio output.

Exchangeability

We can support Mac mini (2011) with Mac Book Air, Mac Book Pro, iMac, thunderbolt port.

We also support PC with mini display port.

specification

Input signal: Mini display port 1.1A

Output video: HDMI / DVI / VGA

Input: Mini display port male 20 pin

Output: HDMI female A type 19 pin

Connector: DVI female (24 + 1), VGA female 15 pin

Frequency range: 50 / 60Hz

Video amplifier bandwidth: 2.25 Gbps / 225 MHz

HDMI / DVI / VGA: 480i / 480p, 576P, 720P, 1080i / 1080p

External power supply: no external power source required

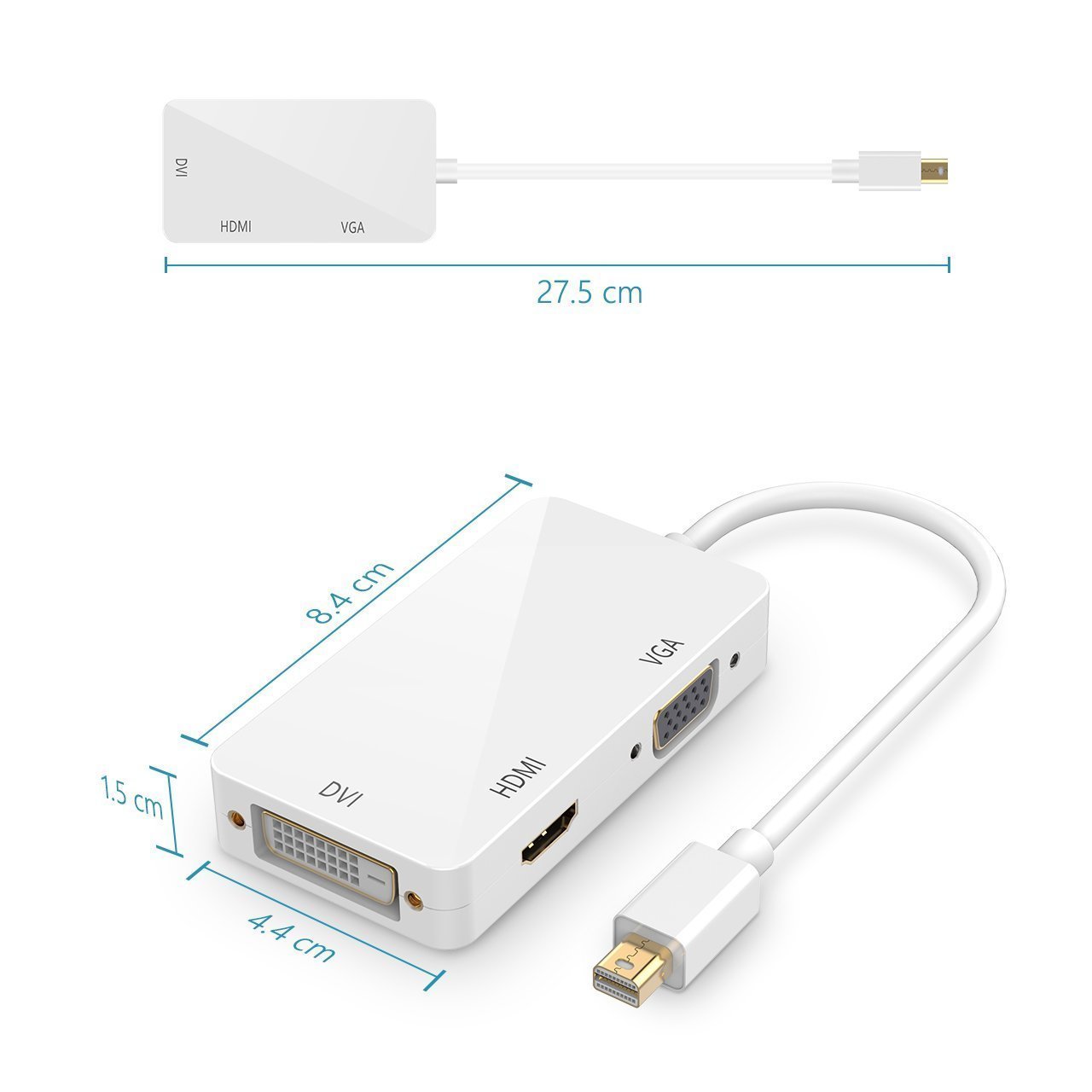

Cable length: 27.5 cm

Color: White

How to use

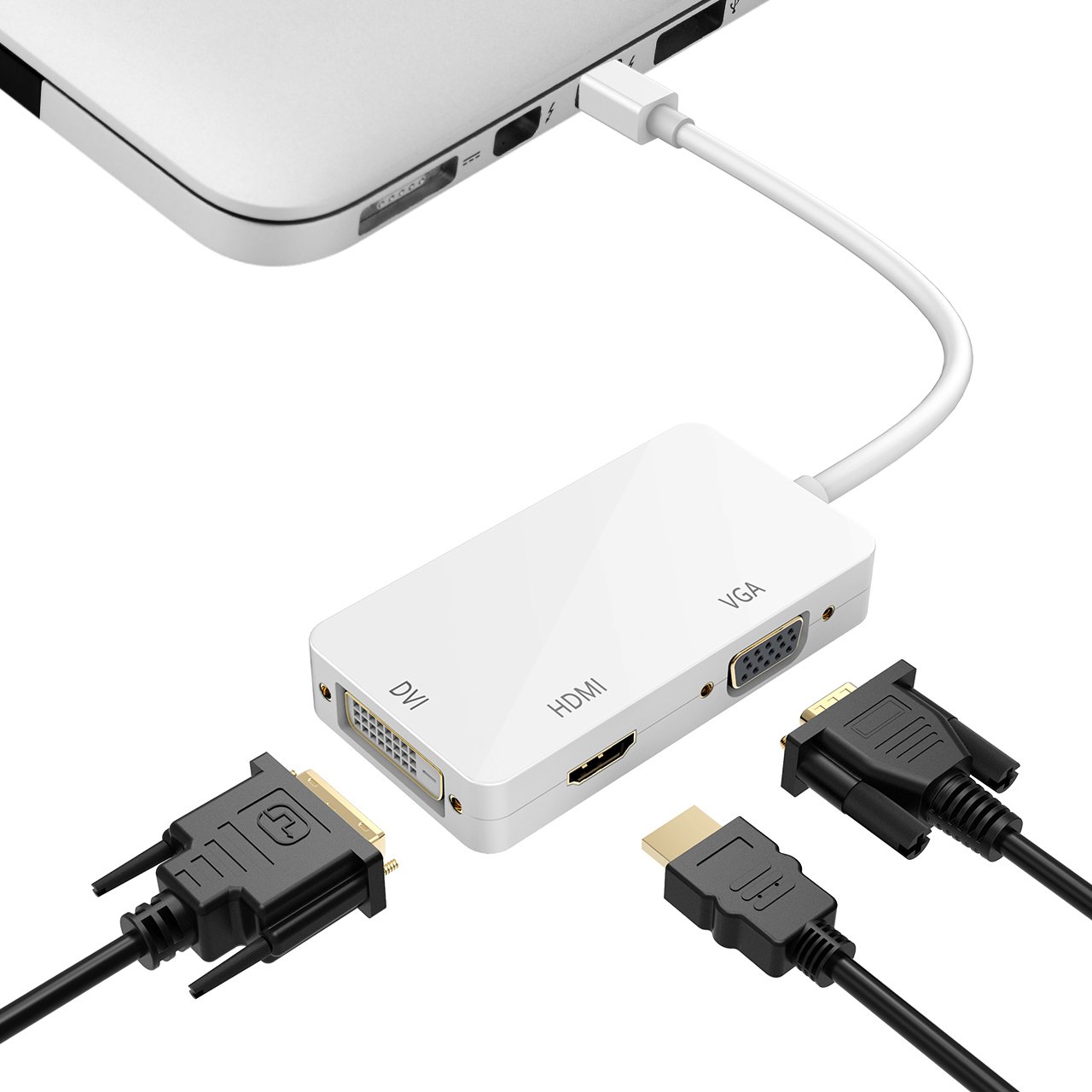

Insert the Mini DisplayPort into your computer and enter the signal.

From adapter to TV, projector, etc. HDMI / DVI / VGA compatible cable also outputs signal with cable (accessory is HDMI cable).

As the specification of this product adopts the plated connector, it not only improves communication performance but also reduces the influence of the number of use and the number of years as much as possible and has specifications with less signal deterioration.

It is lightweight and portable design that carries it anywhere and is very convenient for use.

security

For this product with one year warranty, if there is any problem with the product, please contact us from the inquiry page

Notes on use

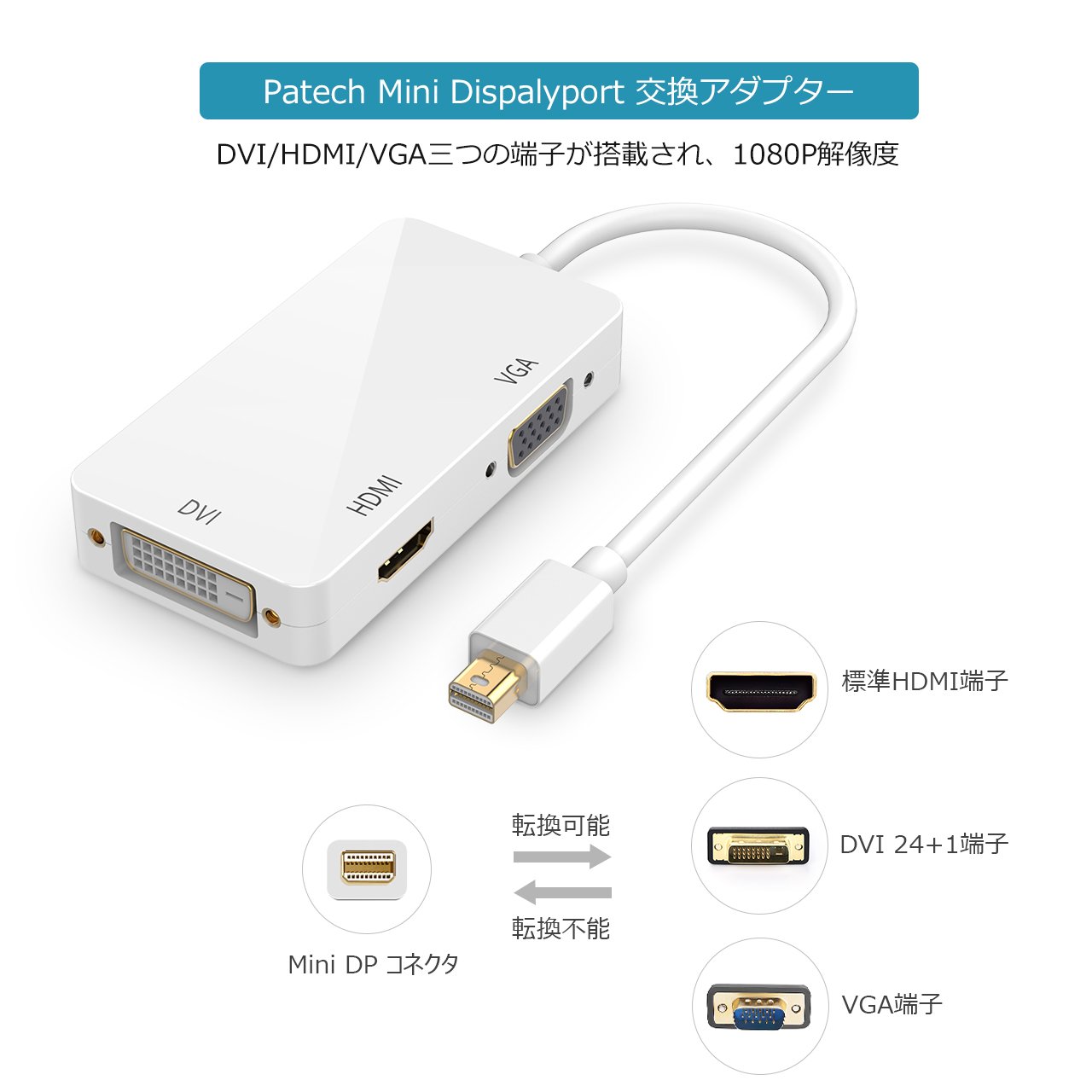

1. It only converts Mini DisplayPort (MiniDP) signal to DVI / HDMI / VGA signal.

Reverse direction conversion is not possible.

HDMI, VGA and DVI can not output at the same time.

2. Please make sure that it matches the shape of the connector of the equipment and purchase it.

3. Do not apply excessive force or apply extreme bending near the base of the cable.

4. Be sure to hold the connector (plug) when inserting or pulling out the cable you use.

5. Do not disassemble or process this product.

Features:

• Please enter model number Confirm this is compatible:
• 【3 in 1】 【There are two colors of white and black】 One adapter can handle three types of output, convenient video terminal conversion adapter.
• It is an adapter that converts Mini DisplayPort (MiniDP) signal to DVI / HDMI / VGA signal, you can enjoy large screen show, movie, PPT by connecting to HDTV, monitor, projector, LCD display with DVI and HDMI or VGA port
• I will.
• You can choose two colors, white and black, and you can be active in various scenes!
• 【High Quality Output】 We will support the maximum resolution 1920 x 1080 p @ 60 Hz (1080 p).
• The transfer rate reaches 225 MHz / 2.25 Gbps.
• Continue to iMac (Late 2009), Mac Book Pro (Mid 2010) and HDMI display and set "Audio" in the "System Preferences" dialog box to support audio output.
• [Gold plated connector] Adopting gold-plated connector improves signal performance with less worry of signal deterioration due to aging.
• It is lightweight and portable design that carries it anywhere and is very convenient for use.
• 【Easy to use】 Insert the Mini DisplayPort into your computer and input the signal.
• From adapter to TV, projector, etc. HDMI / DVI / VGA compatible cable also outputs signal with cable (accessory is HDMI cable).
• As the specification of this product adopts the plated connector, it not only improves communication performance but also reduces the influence of the number of use and the number of years as much as possible and has specifications with less signal deterioration.
• It is easy to use, servicing Plug and Play, no need for an external power supply.
• Supplies power from a mini display port source.

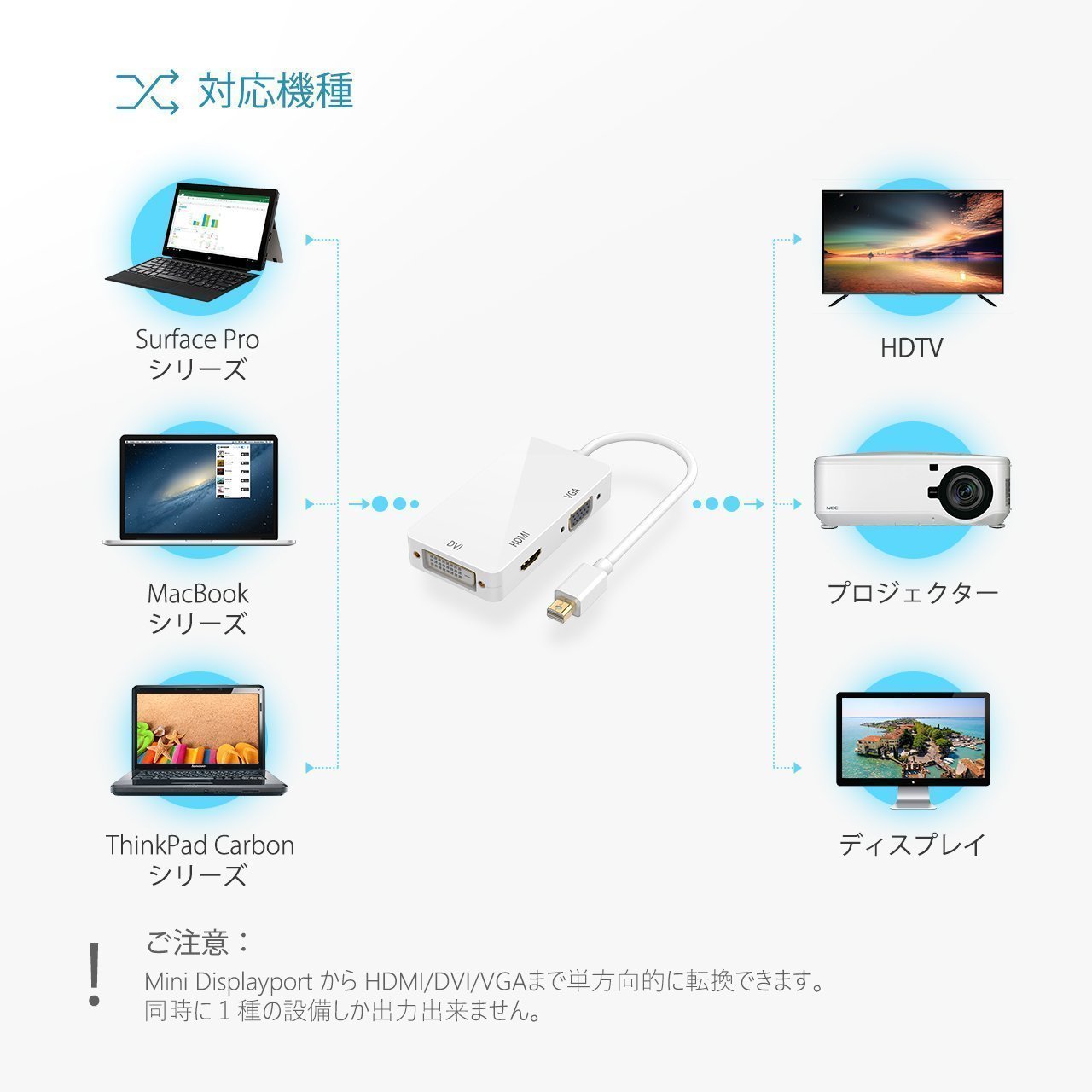

• 【Applicable models】 We will support Mac mini (2011) with Mac Book Air, Mac Book Pro, iMac, thunderbolt port.
• Note: HDMI, VGA and DVI can not be output at the same time.
• One year warranty is attached.
• Customer service

Product information:

Shipping Weight: 54 g

Package Dimensions: 2.01 x 11.71 x 19.51 cm
