Item Descriptions:

size:

Built-in HDD 1 TB

What is AHD

■ Analog High Definition is an abbreviated new technology for analog video transmission compatible with HD video.

■ Product features High image quality with coaxial cable, long distance wiring is possible.

■ AHD Recorder supports connecting to AHD cameras as well as analog cameras

Therefore, without wasting the existing analog monitoring video system,

It is possible to introduce Hi-vision surveillance video system.

【Waterproof specification】

IP66 standards such as heavy rain, water intrusion does not penetrate even by direct jet of strong water from all directions

You do not have to worry about rain even if it is installed outdoors.

* Download of Japanese manual (general version) Click:

www.annke.com/document/XM/DVR/manual/guide_JA.pdf

We would be pleased if you could use it.

* I am pleased if you have inquiries if there is any problem when using the product.

[Infrared camera specifications]

Image sensor: 1/4 "color CMOS

Recording Resolution: 1280 * 720

Signaling method: NTSC

Video output: 1.0 vp - p 75 Ω

Lens: 3.6 MM

Infrared LED Number: 24

Minimum illumination: 0.01 Lux / F 1.2 (0 Lux infrared light on)

Day / Night Function: IR Cut

Infrared range: 20 meters

S / N: ≥ 58 dB

Power supply: DC 12V

Operating temperature: -20 ° C to 50 ° C

Indoor / Outdoor: Both possible

Waterproof standard: IP66

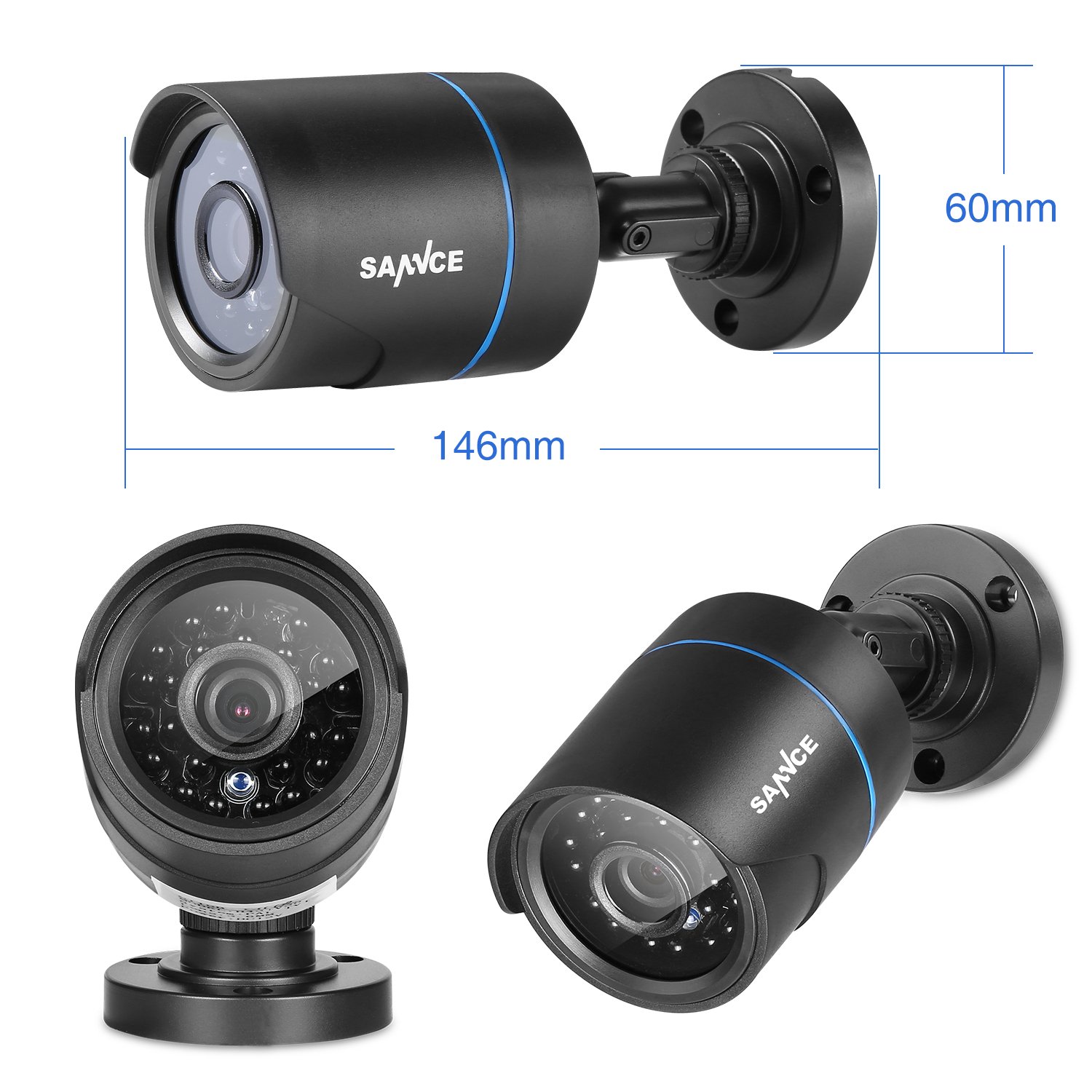

Dimension: 60 * 60 * 146 mm

Weight: 280 g

【Recorder Specification】

Multiple functions: DVR NVR HVR 3 in 1

Signal method: NTSC method

Compression method: H.264

Video input: 4 input BNC

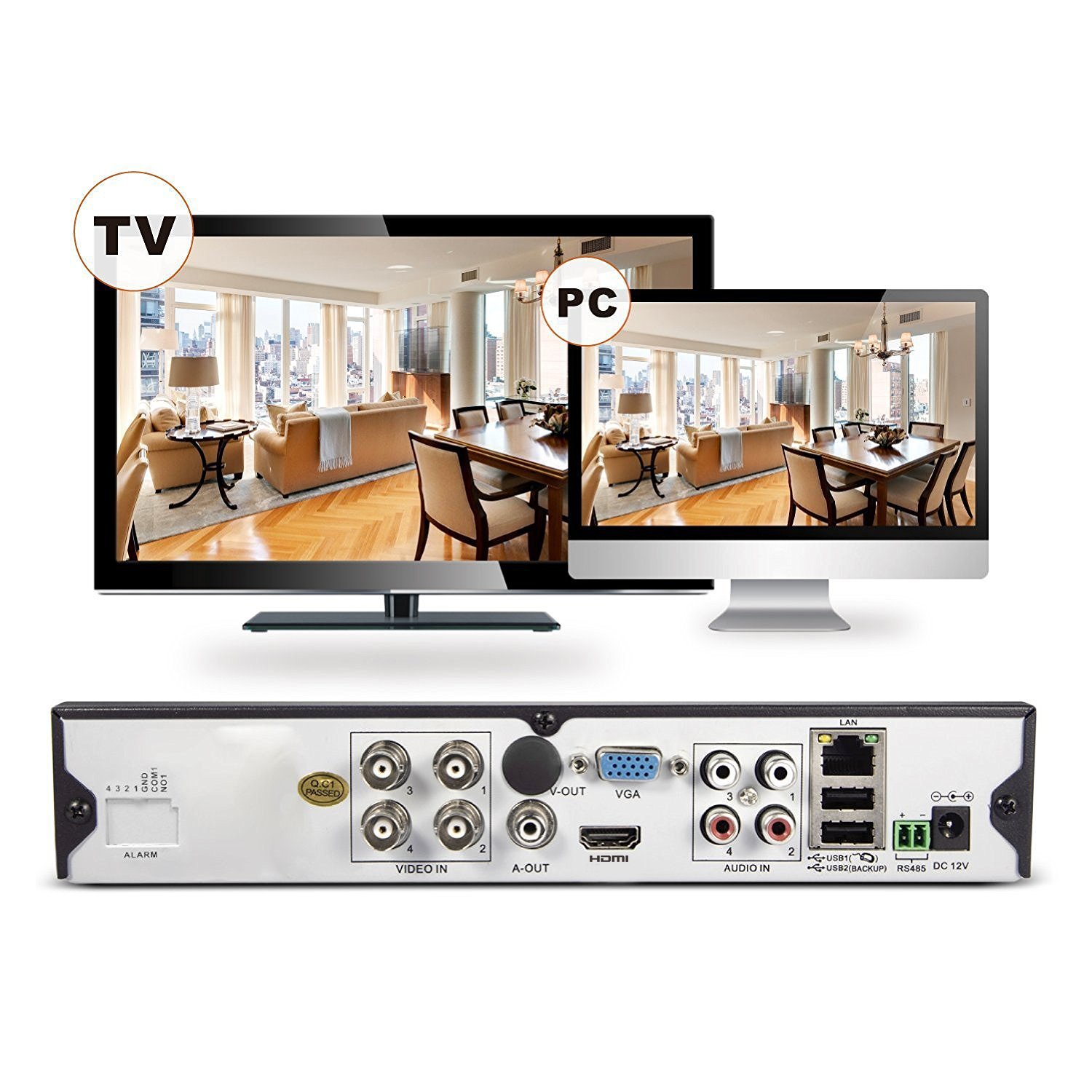

Video output: 2 outputs / HDMI BNC

Image quality: 720P / D1 / CIF 3 step adjustment

Recording type: Always supports recording, motion recording, schedule recording

Recording resolution: 1280 X 1024 1024 X 768 800 X 600

HDD: 1 * SATA port (up to 4 TB compatible)

Voice input: 4 input RCA

Voice sound output: 1 output RCA

Power supply: DC 12V / 2A

Operating temperature: 0 ° C to + 55 ° C

Size: 249 * 220 * 45 mm

Night vision correspondence

When it gets dark it can automatically switch to infrared night vision mode.

You can shoot in the dark or at night.

You can take pictures such as suspiciously.

Also infrared light will flash to exert a threatening effect.

* Night vision of infrared is black and white photography instead of color.

Remote monitoring

You can easily remote monitor with free application installed anytime and anywhere.

Both smartphone and PC compatible.

* Built-in HDD is HDD for surveillance camera system.

A high load different from ordinary PC HDD is applied to HDD for monitoring recorder.

For surveillance systems that work 24 hours a day, 365 days a day or night, HDDs are also required to have stable recording performance.

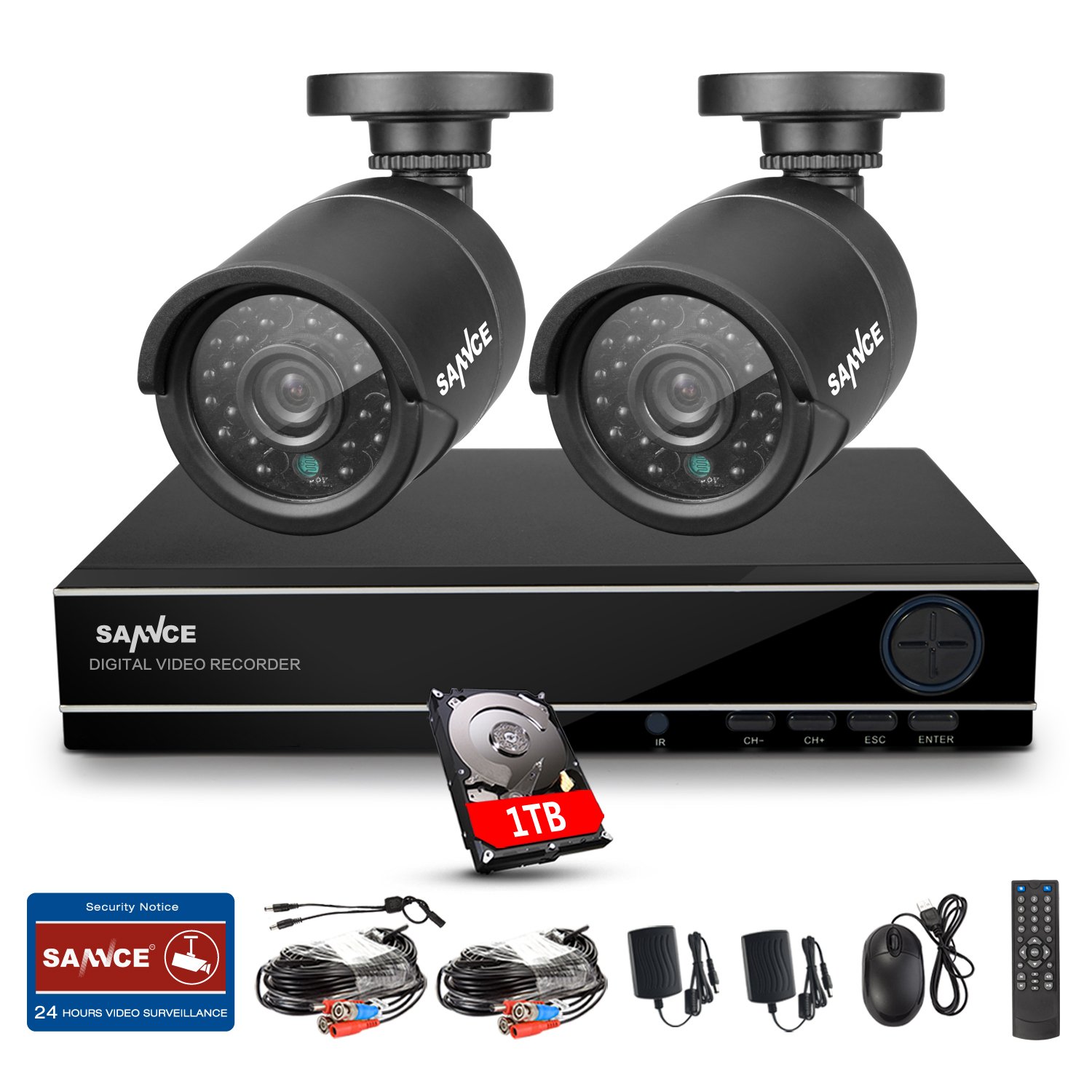

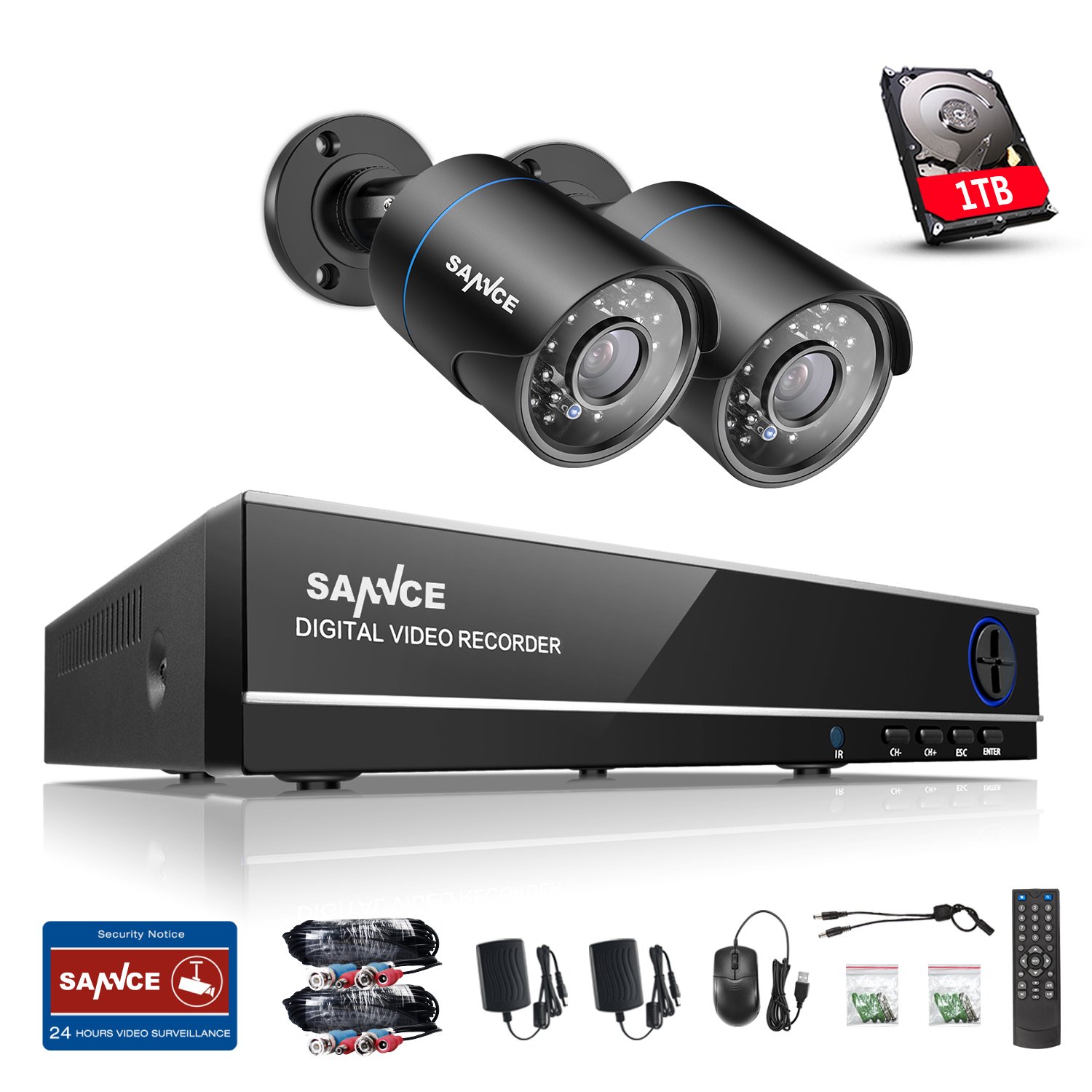

【set content】

720P crime prevention recorder * 1

Security camera * 2

Power adapter * 2

Power cable * 2

Camera mounting screw * 2

Remote control * 1

Mouse * 1

Instruction manual (English version) * 1

【One year warranty】

This product is standard with one year warranty.

Features:

• Please enter model number Confirm this is compatible:
• [Smart Remote Monitoring] When scanning the QR code and installing APP, you can check the video if there is a smartphone (iPhone, Android, Windows Mobile) terminal.
• IE, Chrome, Firefox and Safari etc
• [Practical design] IP66 waterproof / dustproof specification.
• Not only outdoors in a smart shape, it does not feel uncomfortable even if it is installed indoors.
• [Advanced compression method] H.264 real-time high compression model makes image quality beautiful and vivid.
• It saves memory and shortens transmission time.
• 【Clear Night Vision】 Includes 24 high-quality LED lights and a smart IR cut.
• The night vision distance is 20 meters.
• Please note: Currently fraud is rampant at Amazon!
• !
• !
• Malicious dealers will sell popular items at discount prices (less than half the price).
• I cleared my account and escaped when payment was confirmed.
• Of course the goods do not reach.
• Therefore, please check the exhibitor "Security Sannce & Annke" when you want to purchase the item.
• 【Reliable after-sales service】 Beginners will also be able to respond quickly with 1-year warranty & 30 days money-back guarantee.
• If you have any problems with using it, we would be pleased if you could contact us.

Product information:

Shipping Weight: 3238 g

Package Dimensions: 9.80 x 33.20 x 45.01 cm
