Product Description

WINGONEER® trademark Reg.NO:4747611

WINOGNEER Serial Port Expansion Board RS232 for Raspberry Pi 3 Model B / 2 B / B+ GPIO UART Shield With IR receive

Features:

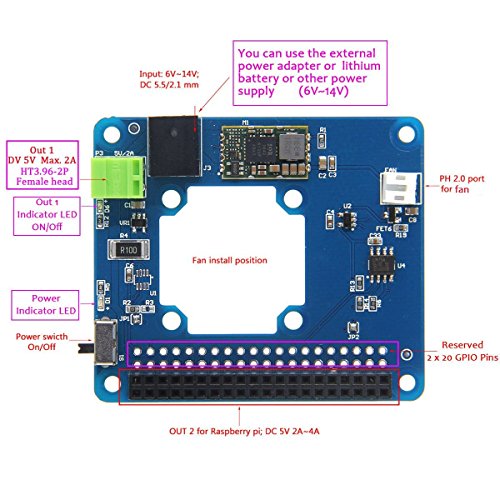

1. Wide input range: 6V~14V, with power switch
2. Output: DC 5V Max. 4A. There are two channel outputs:
OUT1 for external device such as servo, motor, robots, mechanical arm, intelligent car etc. (output interface: HT3.96);
Max current is 2A, and can be programmed via GPIO programing to control the output of power supply
OUT2 (GPIO output for Raspberry Pi);
CAN'T be programming control, it will be output to the pi directly if the switch turned on;
3. Built-in temperature sensor, with active cooling fan, you can control flexibly the ON/OFF of mini fan via I2C command and GPIO programming
Temperature range and accuracy:
Accuracy is ± 2 ℃ when the Temperature range is -25 ℃ ~ +100 ℃
Accuracy is ± 3 ℃ when the Temperature range is -55 ℃ ~ +125 ℃
4. The cooling fan can be replaced, please refer to FAN SPECIFICATIONS;
5. Standard HAT size;

Fan Specification:
Side length is 30mm;
Thickness is 7mm;
PS: The thickness should be in 8mm

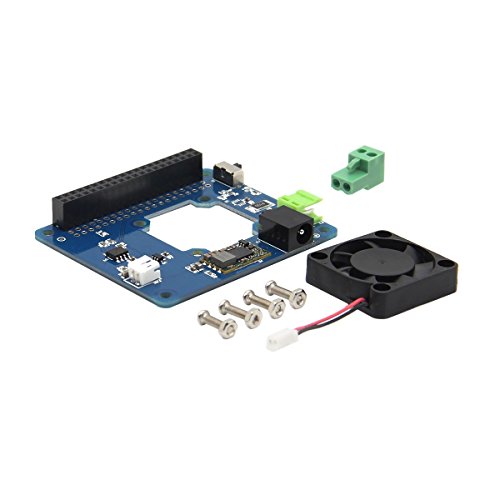

Packing List:
1 x Pi Power HAT
1 x HT3.96-2P Male Head
1 x Mini Fan (with install screws)

Warning: DO NOT use the micro USB power supply when the Pi Power HAT is using on the Pi,
or the Pi Power HAT may be damaged

Feature

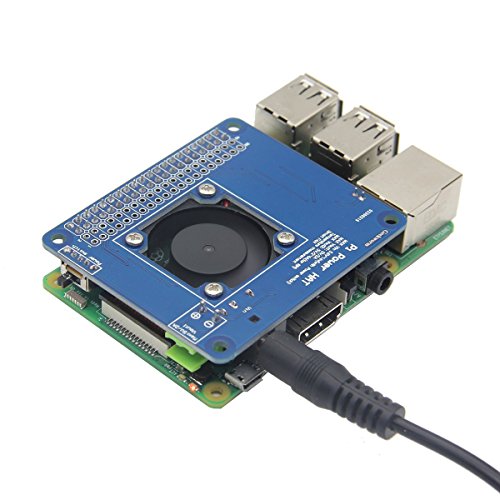

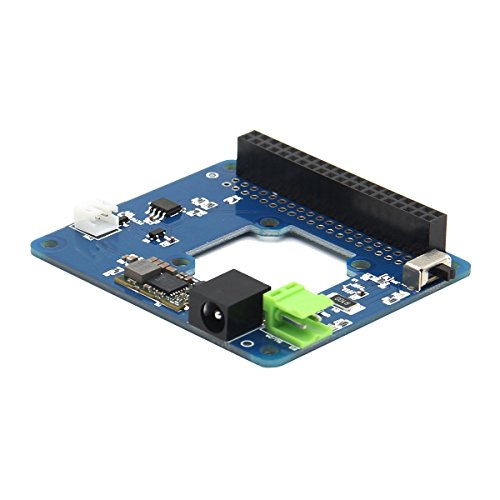

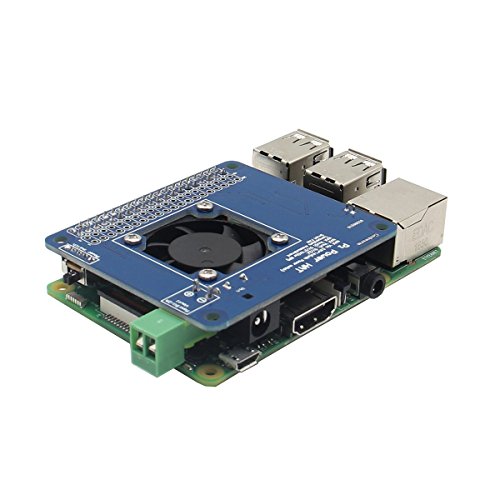

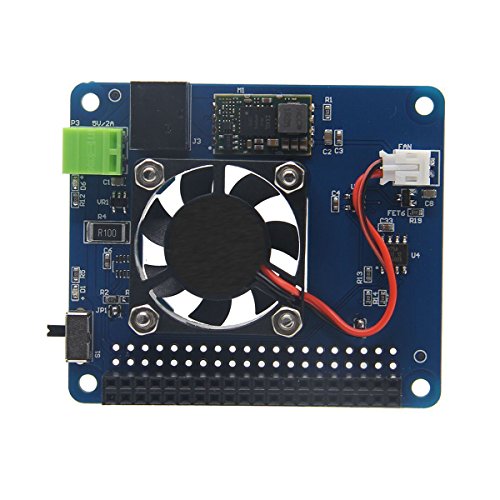

Pi Power HAT is designed for power supply with smart fan.
It features wide input range: 6V~14V, and not USB - it sticks out in all directions and is ready to break with any movement. One HT3.96 output for servos and GPIO output for Raspberry Pi.
The HAT is compatible with Raspberry Pi 3 Model B / 2B / B+.
Brand : WINGONEER®
MPN(PartNumber) : 1
EAN : 0723466645591
Package Dimensions(LxWxH) : 6x6x4cm ; 50 g
