Item Descriptions:

size:

37-52 inch correspondence

| Color:

black

For LCD TV only!

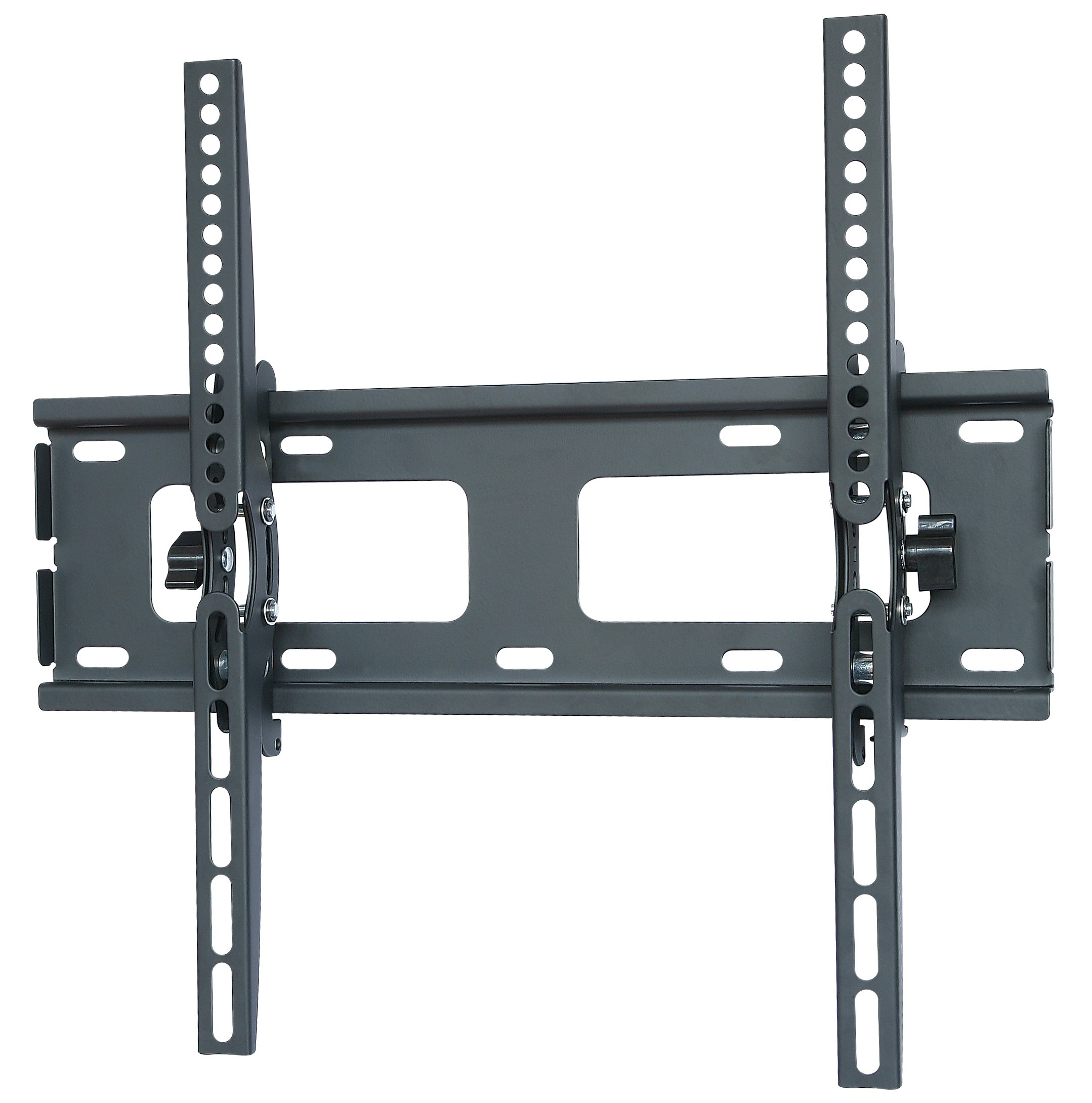

Television Wall Mount Bracket

Super popular classic simple model!

[Item point]

· 50mm thinness while maintaining vertical angle adjustment

· Tilt function is essential when wall is hanging on a high place TV

· If the back of the TV is flat and there are 4 screw holes, it is suitable for most television.

Adjustment is necessary to adjust the vertical angle

To adjust the tilt, you need to put your hands and loosen or tighten the lock each time.

Wiring before wall hanging!

Although it is possible to connect various codes such as an antenna wire and an HDMI cable to a TV, it is difficult to insert a cord after hanging because the gap between the back of the TV and the wall is narrow and the hands do not enter.

It is a good idea to hang it on a wall beforehand.

Japanese manual and necessary screws are all included

【Installation method】

① Attach the monitor bracket to the back of the TV

② Install the base plate

③ Hook the monitor bracket to the base plate and fix it

Basically it can be attached to a single stud

If the distance between the studs is 406 mm (inch module), it is possible to install over two studs.

In the case of 455 mm (scale module), 500 mm (meter module), it is not possible to install over two studs.

When installing on a single stud, please prepare a gypsum board anchor etc. separately and use it as an auxiliary.

Be sure to check before purchasing!

[Full-fledged vibration test implementation]

One of the things that customers are worried about when hanging on TV is "earthquake resistance".

In this product, vibration waveform inspection which reproduces the seismic waveform of seismic intensity 7 observed at the time of the Great East Japan great earthquake as much as possible is carried out,

In order to communicate as much security as possible to everyone, we really do genuine safety inspections from the customer's point of view.

[Relief goods that you can rest assured]

If you can not install it even though it meets the following conditions, we will respond to returned items.

· Threaded holes on the back of the monitor

· Removable stand (television with built-in stand is rare)

· The back of the monitor must be flat

· The monitor size is 37 to 52 inches.

· The weight of the monitor is 45 kg or less

· The distance between the screw holes on the back of the monitor is within the range of "length: 75 mm to 400 mm width: 75 mm to 400 mm"

Features:

• Please enter model number Confirm this is compatible:
• 【Product features】 TV setter tilt 1 M size.
• Standard angle adjustment function is included.
• 【Contents of contents】 TV setter body | Mounting screw set | Clear installation instructions
• [Product specifications] General purpose type | Applicable inch: 37 to 52 inches | Applicable weight: up to 45 kg supported | Body weight: 1.8 kg.
• For details on dimensions, please see the image at the top.
• 【Reliable Returns】 It is a safe returnable product with a 3 year warranty.
• For details, please refer to our "Returns and refunds" column.
• [Corresponding number of inches] 37 inches 38 inches 39 inches 40 inches 41 inches 42 inches 43 inches 44 inches 45 inches 46 inches 47 inches 48 inches 49 inches 50 inches 51 inches 52 inches
• 【About STARPLATINUM】 It is a specialized shop of TV wall hanging metal fittings, ceiling hanger metal stand, DIY.
• Such as SHARP "AQUOS", Toshiba "REGZA", HITACHI "Wooo World", Mitsubishi "REAL", PANASONIC "VIERA", Sony "BRAVIA (BRAVIA)", LG Electronics "OLED"
• We deal abundantly with TV fittings that correspond to any TV maker.

Product information:

Shipping Weight: 1827 g

Package Dimensions: 5.99 x 15.01 x 47.50 cm
