Item Descriptions:

color:

orange

Where is the OBDII interface?

In general the OBD 2 port is under the dashboard or under the panel below the side brake on the center console.

How do you start?

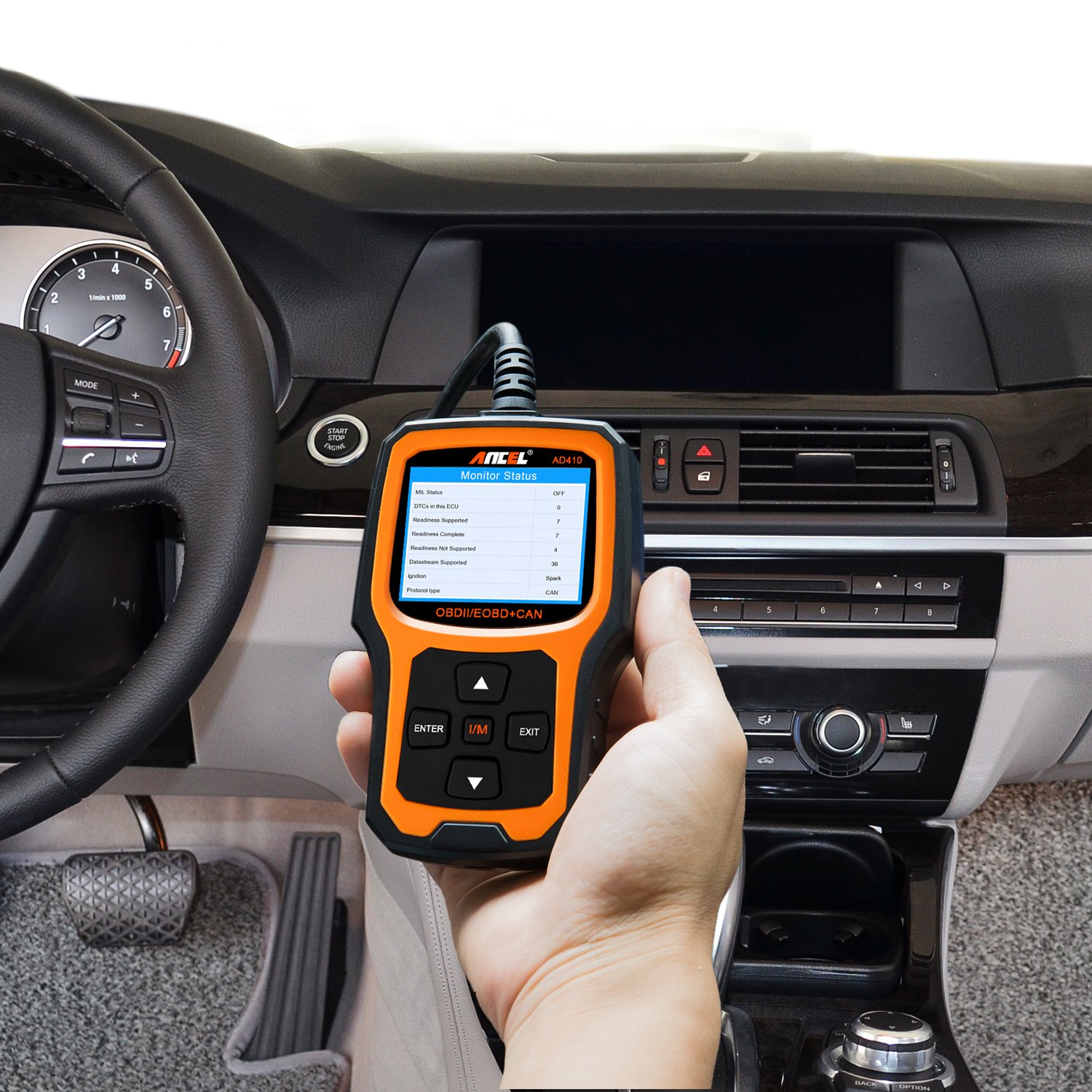

Easily plug it into the OBD II port of the car and start the ignition.

That's all, ready.

Why can not I erase the error code?

First, you must repair the error code that is displayed, then erase the error code.

please note:

It is only applicable to 12V car battery.

16 PIN OBD II protocol is required.

The ANCEL AD 410 was upgraded on top of the basic diagnostic scanning tool.

It is useful to clear the trouble code when clearing the check engine lamp, reset the monitor.

The live data reported by the ECU, engine temperature, readings of the O2 sensor, etc. are displayed.

Even beginners can use this unit to check problems.

It saves time.

Main function

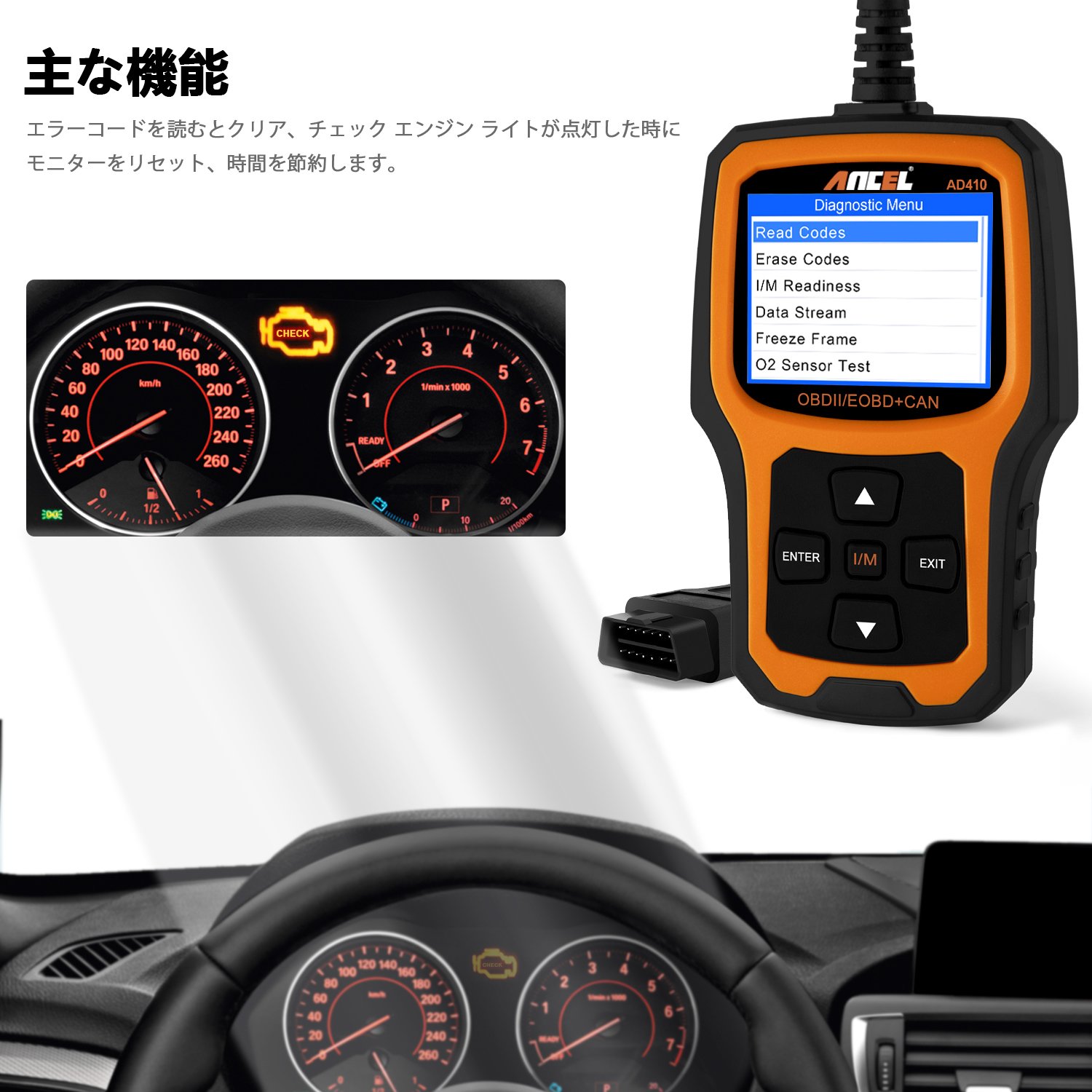

It reads and clears the check engine's light code including the usual code, the manufacturer's special code.

Reset the monitor.

OBD-II DTC reference library built-in has detailed code explanation.

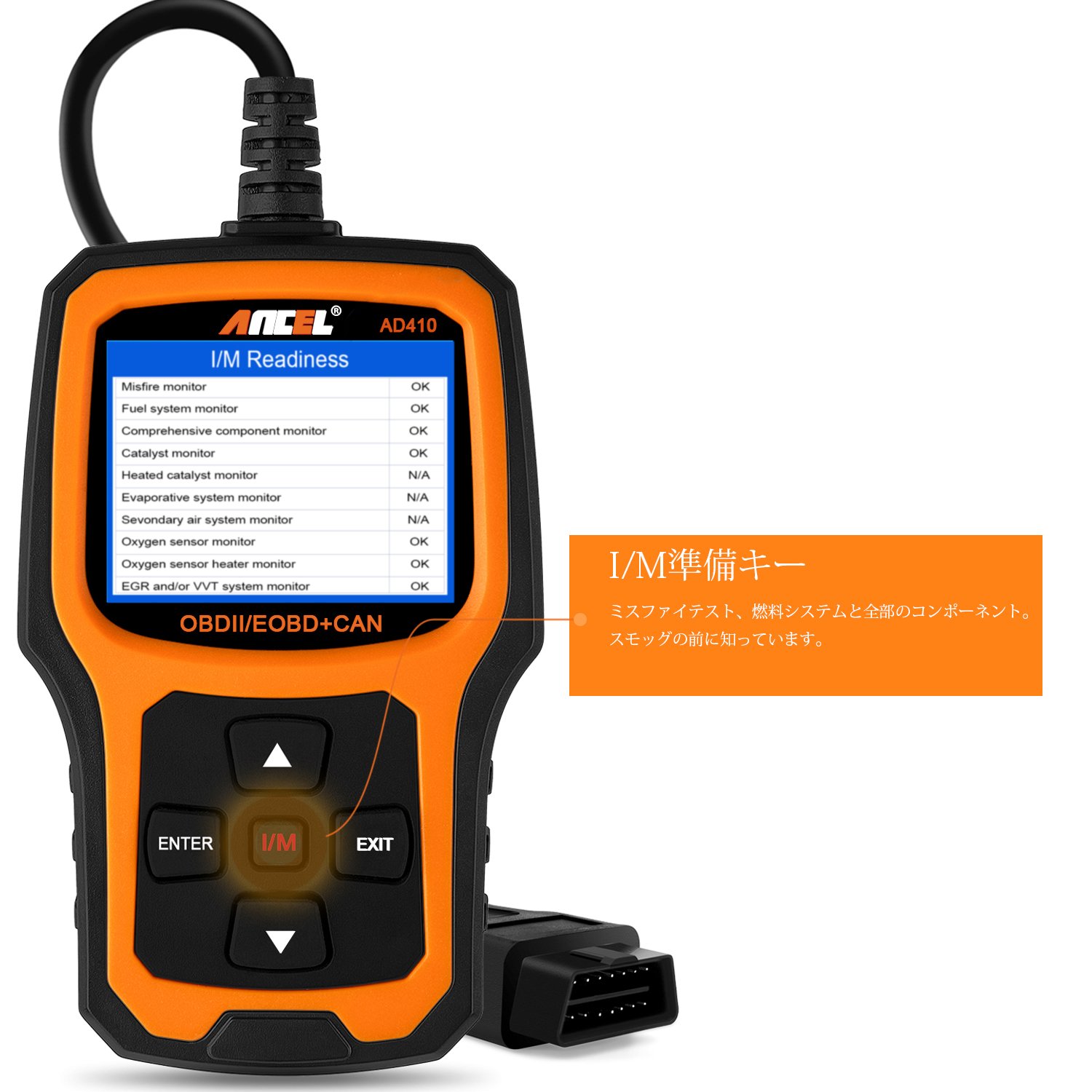

I / M readiness tests misfire, fuel system, integrated components.

Select specific live data in the graph to display all data stream items.

When emission related faults occur, the vehicle parameters recorded by the ECU showing freeze frame data are displayed.

For the most frequently executed tests from automotive computers O2 sensor test can display and display O2 sensor monitor test results.

You can use the on-board monitor test to read the results of on-board diagnostic monitoring.

The EVAP system test can start the leak test of the EVAP system of the vehicle.

(Not all vehicles support the EVAP test, which depends on the manufacturer installed on the OBD II system.)

Vehicle identification number (VIN), CID (calibration ID), CVN (calibration verification number) are displayed in the vehicle information.

Code definition

Sakishin OBD-II DTC reference library built-in, update timely.

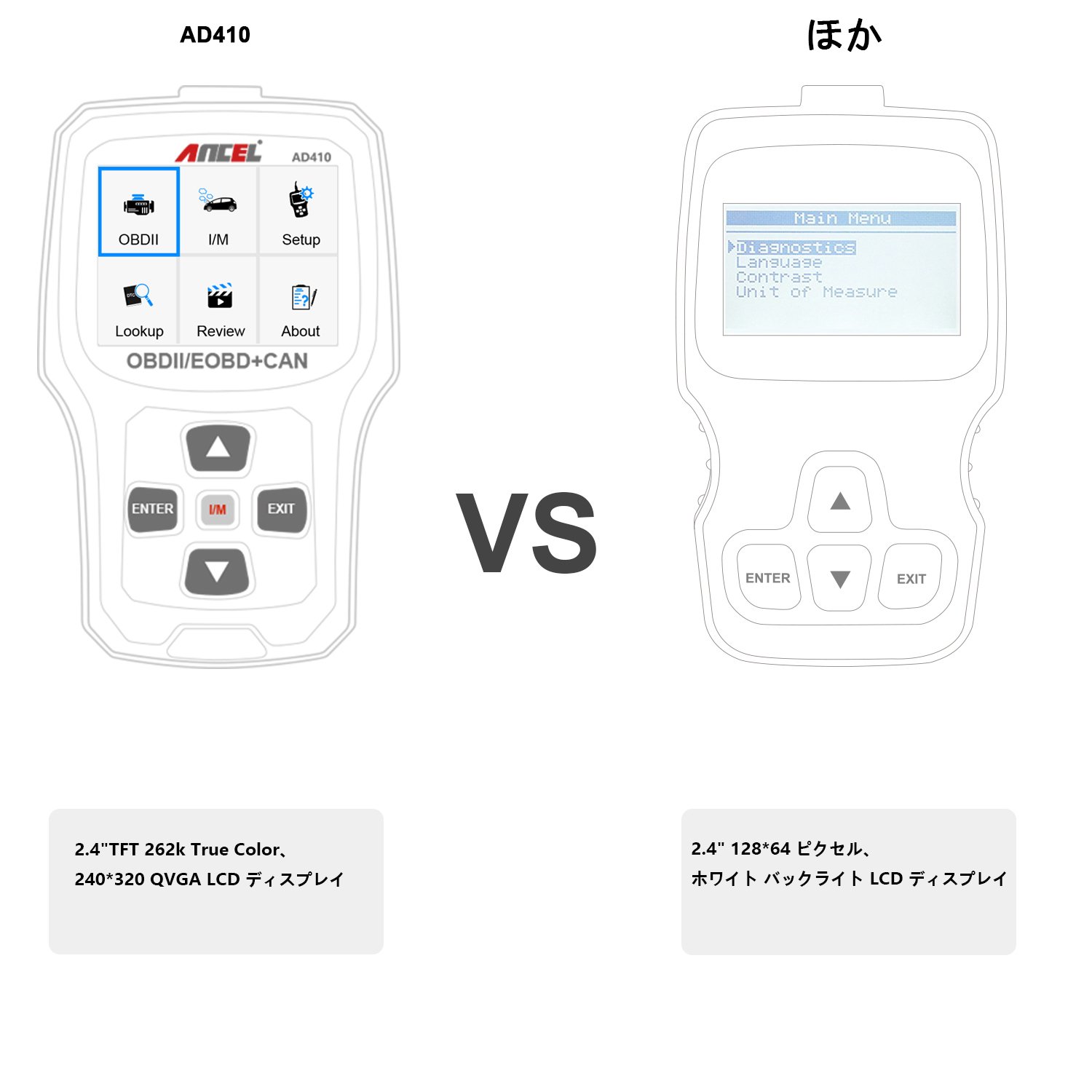

2.4 inch TFT true color (262 K) Displays codes on LCD display and shows its meaning directly.

Once the code is found, click on the selected error code to display the definition directly.

Unlike other cheap, old versions, the ANCEL AD 410 scanner has a more advanced SMT 32-bit CPU, has high speed, compressed volume, stable performance.

Is there a problem with your car?

Just by selecting the "FEEDBACK" option in the settings and sending the problem file recorded on the PC, you can get help in a few days.

The AD410 code reader provides software updates (English support only) free of charge for lifelong, corrects major bugs, and adds new DTCs or parameters.

Note: After connecting to the computer with the USB cable, the LCD screen will not light until the update is completed.

Features:

• Great compatibility - It applies to American cars since 1996, European cars since 2001 and Asian cars since 2008.
• Supports all OBDII protocols: ISO 9141, KWP 2000, J 1850 PWM, J 1850 VPW and CAN. It corresponds to English, German, French, Spanish, Finnish, Dutch, Russian and Portuguese.
• I do not need a battery and charger, I connect directly to the car's 16 pin OBD II interface.
• Turn off the engine light: Clear when reading the code, clear the code, display the definition of the code, turn off the check engine light, check that the monitor is set before smogging the monitor and make regular smog check easy
• You can pass it to.
• We support exclusive OBD II diagnostic machine - O 2 sensor (O 2 Sensor) and EVAP (Evaporative Control) system test.
• The AD410 code scanner starts the EVAP system of leak test vehicles by monitoring the integrity of the fuel tank system.
• The O2 sensor test monitors and regulates the air / fuel mixture, it can identify troubleshooting related to fuel efficiency and vehicle emissions.

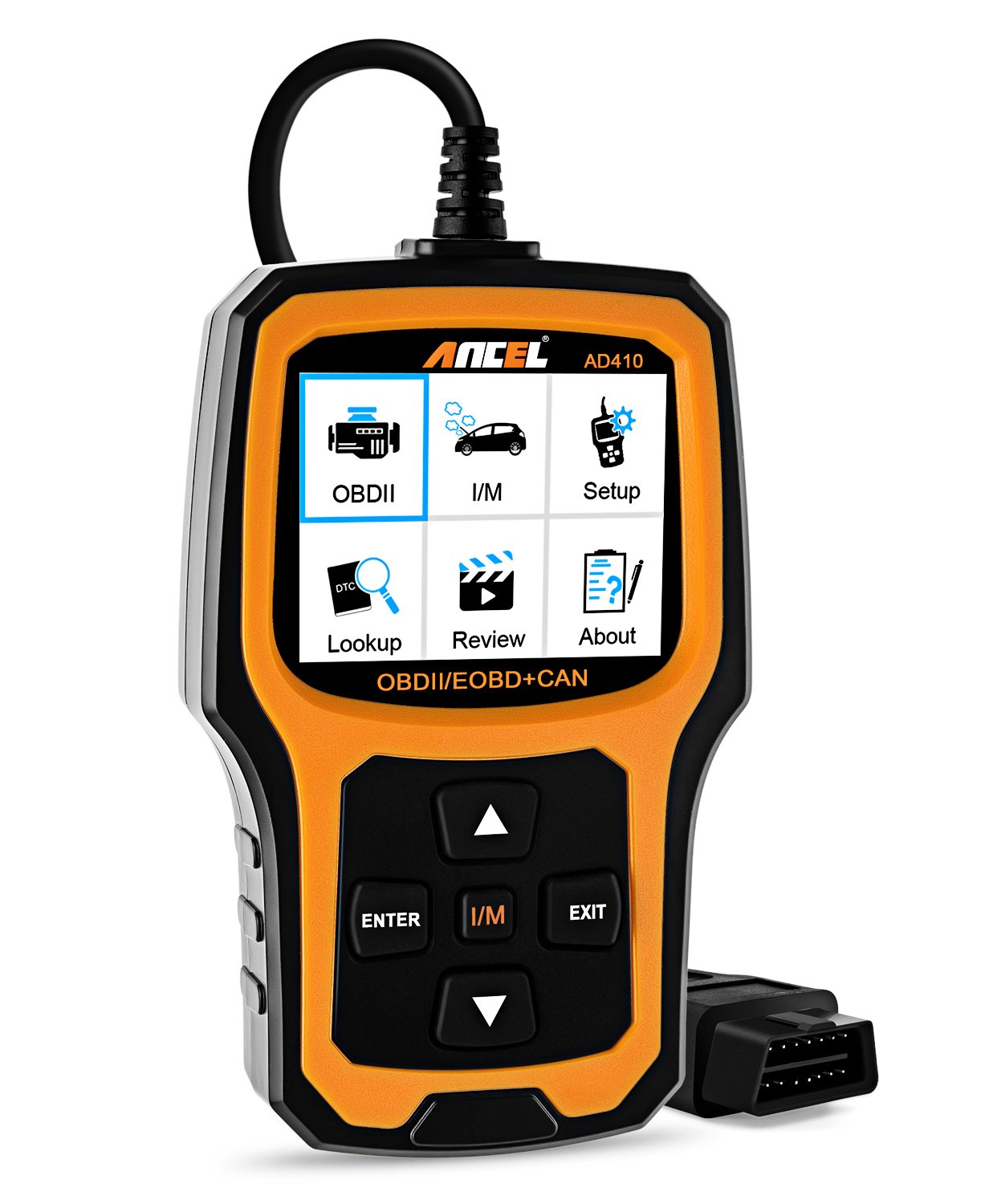

• QVGA Display & New UI - AD410 has been significantly upgraded from more basic diagnostic scanning tools.
• 2.4 "TFT color (262K) There is LCD display, the test result is more clearly displayed.Easy to access such as setup, OBDII diagnosis, I / M preparation, DTC reference, etc. by using easy to read UI
• But you can use it without having to read any manual.
• Diagnostic Report and Update - Click the Review & Print option and save or print the required diagnostic report.
• This unit provides free software updates to fix the latest bugs and add new parameters.
• Please download the software from the ANCEL website and follow the instructions on the screen.

Product information:

Shipping Weight: 340 g

Package Dimensions: 3.81 x 16.79 x 23.09 cm
