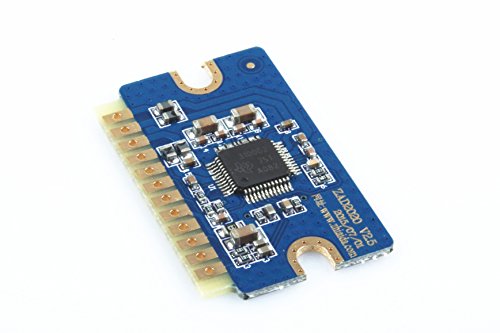

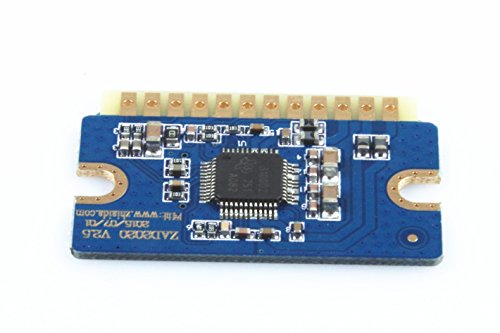

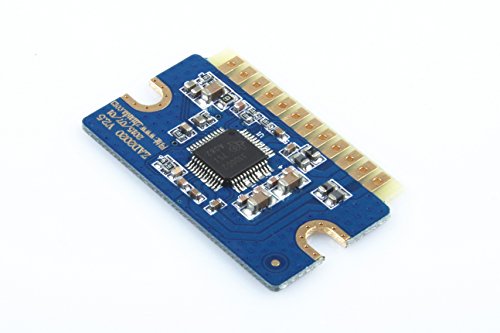

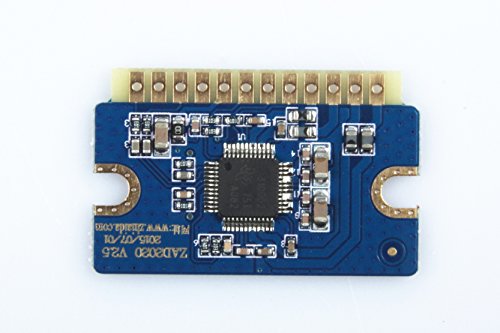

Product Description
Power supply voltage: DC12V-22V.
Chip voltage range: DC8V-26V.
Rated power: 20W 20W.
Output Impedance: 4-8 Europe.
Peak power: 35W 35W.
Maximum dynamic current: 4A.
Quiescent Current: <40mA.
Shutdown Current: <1uA.
Gain: 35db.
Output impedance: about 20K Euro.
Size:38*20*2.8mm(L*W*H).
Weight:3g/0.1oz.

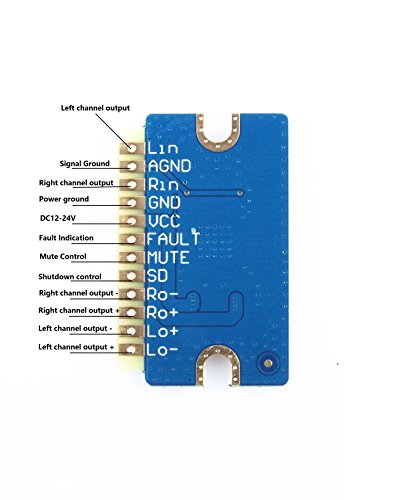

Pin Description:.
Lln: Left channel output.
AGND: Signal Ground.
Rln: Right channel output.
GND: power ground.
VCC: DC12-24V.
FAULT: Fault Indication.
MUTE: Mute Control.
SD: shutdown control.
Ro-: Right channel output -.
Ro : Right channel output .
Lo-: Left channel output -.
Lo : Left channel output .
Fault indication: the output is shorted output high.
Mute Control: Active High.
Shutdown control: active low.
