Product Description

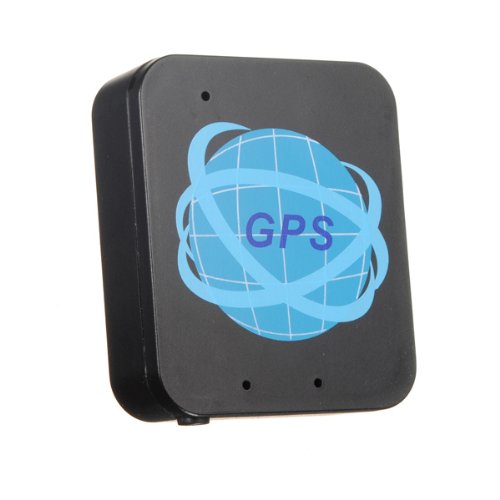

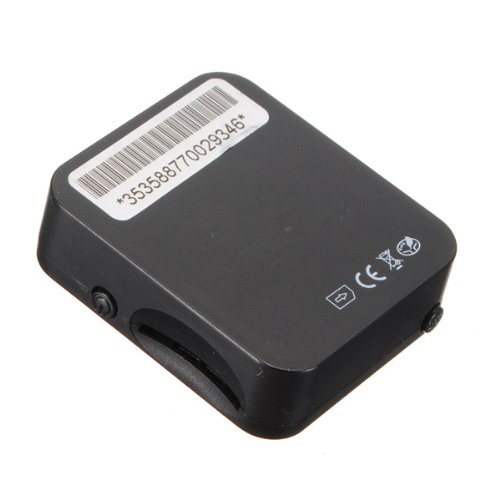

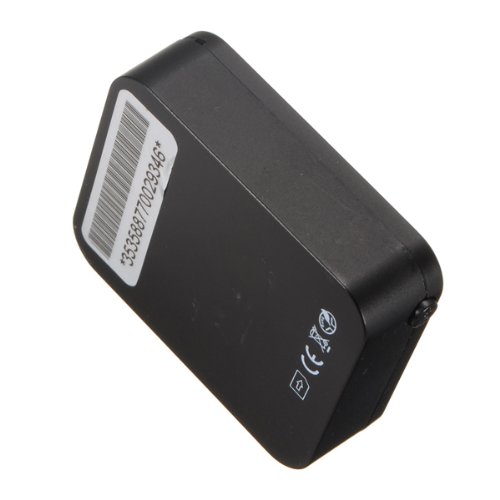

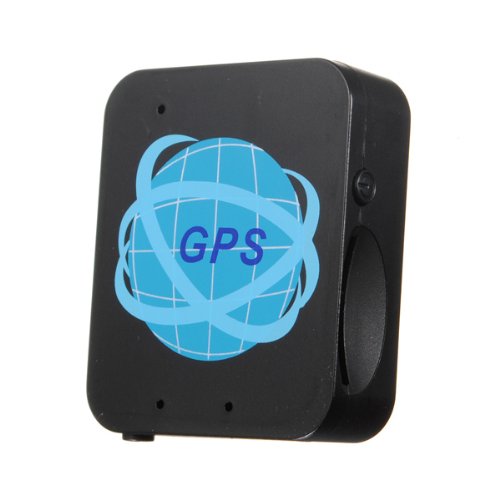

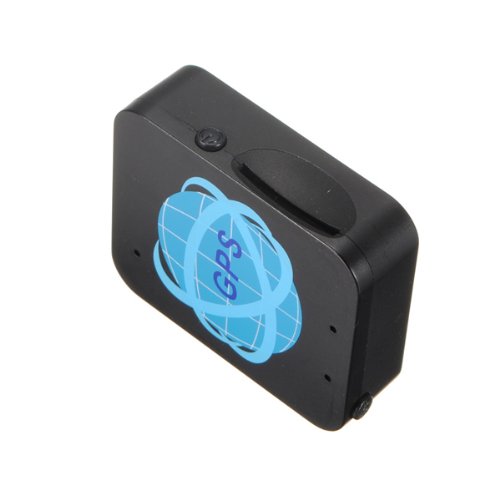

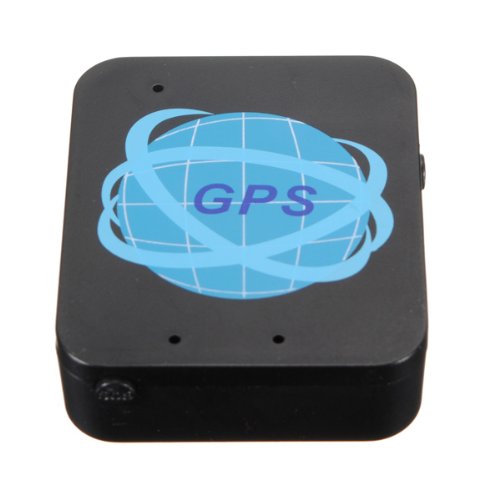

Car GSM GPRS Tracker TK101 with Charger and USB Cable
Description:
Internet positioning service center, used to receive and send positioning information. GSM /GPRS modem supports Quad frequency bands, i.e.850/900/1800/1900 MHz. Can work effectively in limited space such as urban canyon. Low energy consumption. Fast signal acquisition. Supports single positioning and continuous tracking. Supports alarming and remote monitoring. Supports fast dial button. Supports the location information inquiry by SMS and Internet. May monitor without disturbing the tracked person and realizes real-time tracking. Can position the holder by call or SMS. In emergency, press the SOS button to have an accurate positioning. Technical Specifications. Specification:
DIM:42mm×36mm×13mm Weight (Kg):0.085 Network:GSM/GPRS Band:850/900/1800/1900Mhz Applicable Vehicle Power:12 V -24V Storage Temp:-40°C to +85°C Operation Temp.:-20°C to +55°C Humidity:5%--95% non-condensing
Notice:
It is not a real GPS tracker, but track by GSM.
How to use:
1.Insert the GSM card in the card slot and starting up.
2.Through the Web platform:Enter the Web platform: http:gps588.com
Then input trackers'IMEI (last 10 digits) and password (123456). So that we can view the history records.
3.Through the cell phone: Send SMS: LE to device, it will reply English version now.
Send SMS: Send APN: AA, XX, YY; AA is the operator APN,XX is the username,YY is the password;
for example:APN:web.pro.be,mobistar,mobistar
Send SMS: DW to device,it will reply SMS, including absolute street address.
Sene SMS: GOOGLE to device ,it will reply SMS including map link.
Package Included:
1 X Tracker

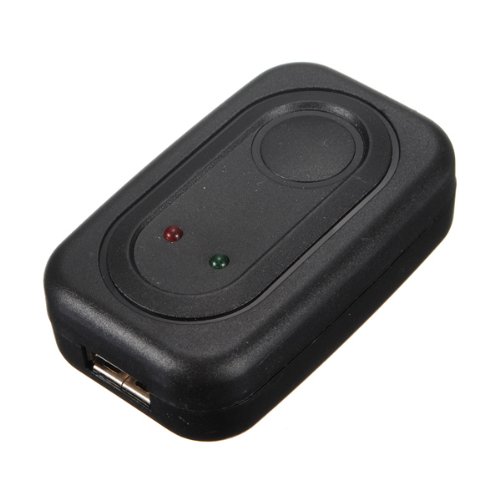

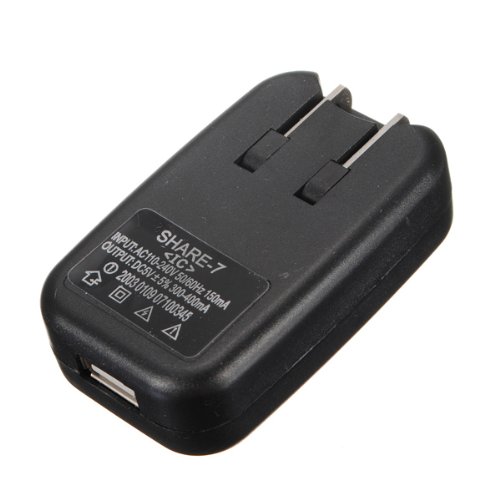

1 X Charger 1 X USB Cable
1 X Manual


Brand : Bcn
MPN(PartNumber) : 63920
EAN : 0602131829378
