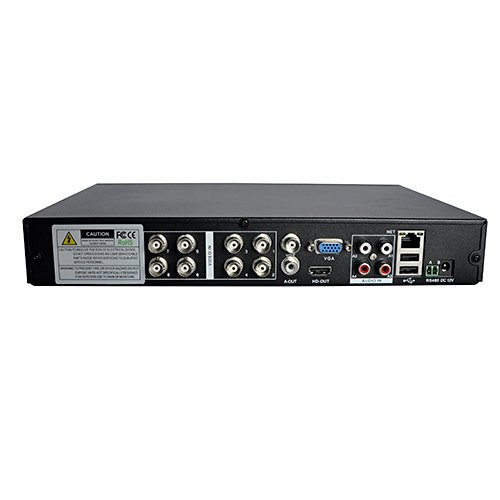

Liview® 8CH HDMI 960H Network DVR 700TVL Outdoor Day/Night Security Camera System




Product Description

Record Mode: Manual/Schedule, Motion Detection, Time Schedule

Mobile Device OS Support: Blackberry, Windows 7, Windows Mobile, Symbian, Android

Network Function: Live Monitoring, IE Viewer, Mobile & Email Function, DVR Setting

Network: RJ45, 10M/100M

Net Protocol: DHCP and TCP/UDP, IPv4, PPPoE Client

Remote Access: Remote Client Software and IE Browser

PTZ Control: RS-485

HDD Interface: SATA, Support between 250GB and 2TB

HDD Port: 2

Built-in HDD: No

Playback Mode: Frame by Frame, Fast Rewind, Fast Forward, Normal Play

Synchronous Playback (Channel): 8

USB: USB Backup/USB 2.0

Power Supply: 12V DC

Dimensions (LxWxH): 310mm x 220mm x 45mm

Bullet Camera Image Sensor: 1/4" Color CMOS

TV System: PAL/NTSC

Effective Pixels: NTSC: 960 (H) x 582 (V)/PAL: 976 (H) x 494 (V)

Lens (mm): 3.6mm

Maximum IR Distance (m): 25M

Features: Waterproof, Auto White Balance, Auto Gain Control, Back Light Comp

Minimum Illumination: 0.0 Lux

S/N Ratio: ≧ 45dB

Video Output: 1.0Vp-p, 75ohms

Operating Temperature: 14°F~122°F / -10°C ~50°C

Power: 12V DC

Material: Metal Shell


Feature

Video Input:8 Channel; Audio Input / Output:RCA 4-Channel Input / RCA 1-Channel Output
Display Frame Rate:NTSC: 240 fps @D1 / PAL: 200 fps @D1; Display Resolution:NTSC: D1(704 x 480)/ PAL: D1(704 x 576)
Recording Frame Rate:NTSC: 240 fps @D1 / PAL: 200 fps @D1;Bullet Camera Image Sensor:1/4" Color CMOS
OSD Languages: Swedish, Greek, Dutch, Thai, Japanese, Chinese, Arabic, Russian, Portuguese, Italian, Spanish, German, French, English
What's in the box: 12V Power Supply × 3, 66ft Cable × 8, Bullet Camera × 8, 1 To 4 DC Line × 2, User Manual - English × 1, Software CD × 1, Remote Control × 1, Mouse × 1, DVR × 1
Brand : Liview
MPN(PartNumber) : SB-126
