Product Description

Product Specifications
Voltage of Plug-in Receiver: 110V
Transmitter power consumption: <10mw
Sound Volume: 30-110dB, 4 levels
Working frequency: 433.92MHZ
Wireless distance: 1000 feet in open air
Working temperature: -30℃-70℃

Doorbell pairing instruction
Before use the product you should paired the transmitter with the receiver and you can set the receiver for separate tone
1,Short press the music button to choose the your favorite music.
2,After you choose the music then long press receiver volume button about 5-7 second till the you can hear receiver "ding" and the blue light will be flash.
3,when the blue light flashing you should immediately short press transmitter more than 3 times and finish the paired.
(notice:receiver will exit pairing mode automatically if it doesn't get signal from transmitter in 5 seconds)
Press the transmitter to have a final check about pairing works.
If you want to set the receiver for separate tone then you should on this receiver to choose another music
and make it paired with another transmitter,just following the above pairing steps.

Customer Notice
1.Please use high quality alkaline batteries, poor batteries will reduce the maximum operating range
2.Please do not install transmitter on metal doors since metal is not easy to transmit the signal

Product Include
2*transmitter
4×receiver
2*12V alkaline battery(included)
2*screws
2*double-sided adhesive tape
1*Screwdriver
1*user manual

Warranty Promise
This units sold with 30 days money back and 1 year warranty from the date of purchase.

Feature

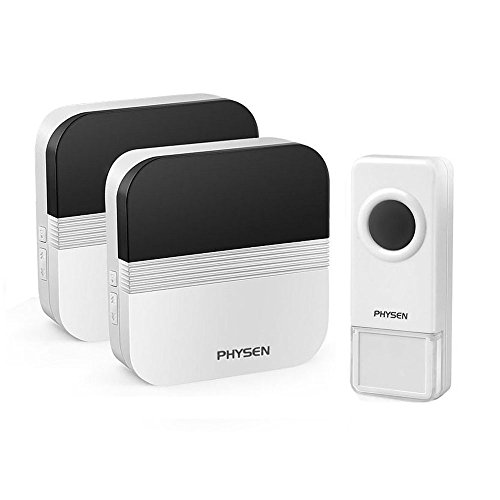

1 transmitters and 2 receivers wireless doorbell set is a good ideal for large house,elder call button or other using purpose as you like

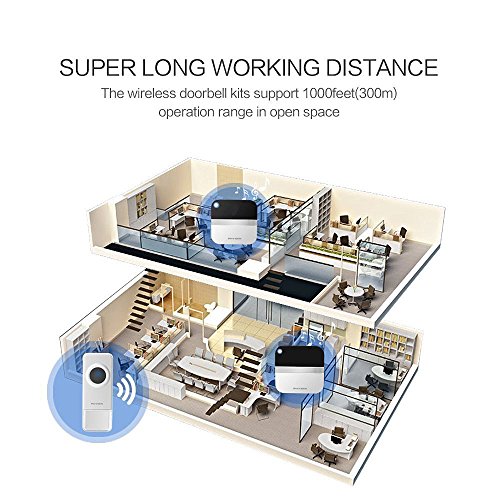

Doorbell can work within 900 feet in open area.Generally,it can work within 200-700 feet through the metal security doors and walls depending on te specific using environment

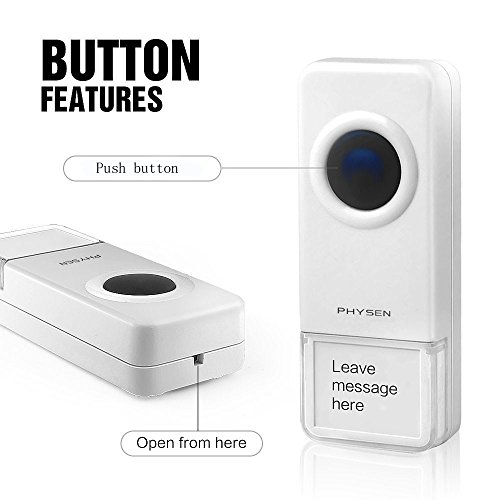

IP55 Waterproof Transmitter:can use in indoor or outdoor and at the bottom allowing you to leave a message when you are not at home
4 adjustable volume levels from 30dB to 110dB[much louder],52 charming melodies is available and choose your favorite music directly by pressing forward/back button[more choose]

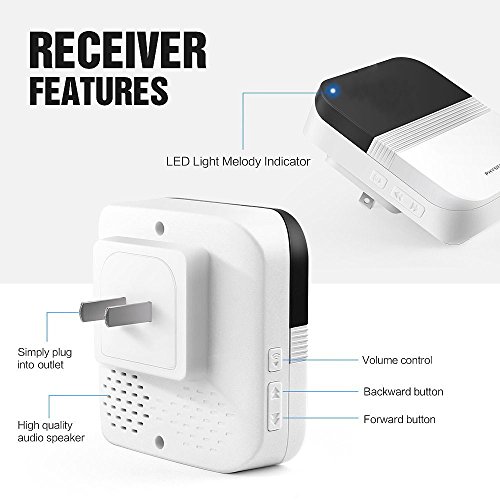

Easy Installation:Just plug-in the receiver in electrical outlet and use double-side adhesive tape at the back of the transmitter,also you can use the screw to install it.CE, FCC, RoHS certified
Brand : Physen
MPN(PartNumber) : FX-B7
EAN : 0711978751909
Package Dimensions(LxWxH) : 19x10x9cm ; 272 g
