Product Description

Description

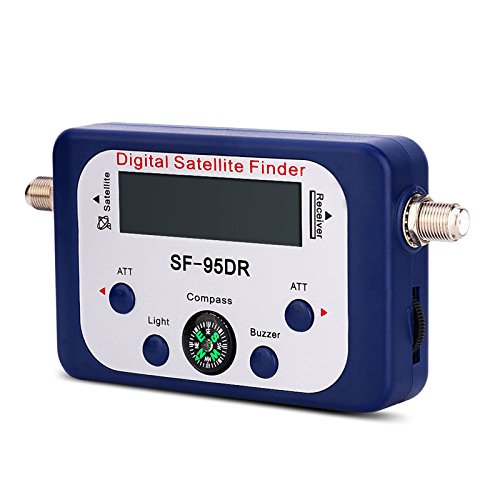

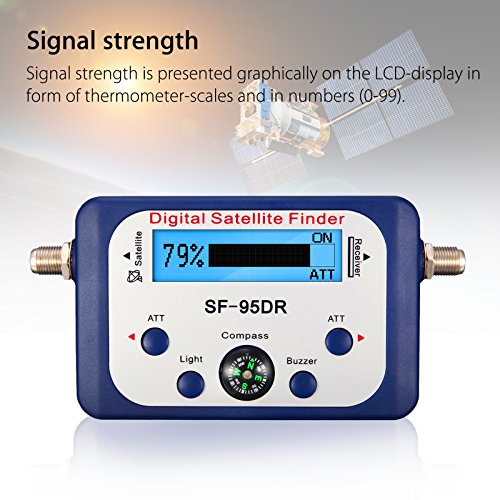

The digital satfinder is microprocessor controlled, making it very reliable and accurate. Signal strength is presented graphically on the LCD-display in form of thermometer-scales and in numbers (0-99). It can also present pitch tones (the higher tone the better signal) on a buzzer. The digital satfinder is very sensitive and can detect the weakest of signals, strong incoming signals (powerful satellite, big dishes) can easily be attenuated for better readout.

Specification

Condition: New

Type: Digital Satellite Finder

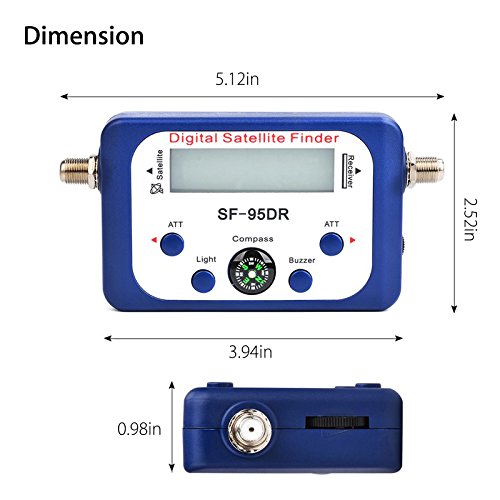

Dimension: 5.12*2.52*0.98in (130*64*25mm)

Weight: 3.13oz (89g)

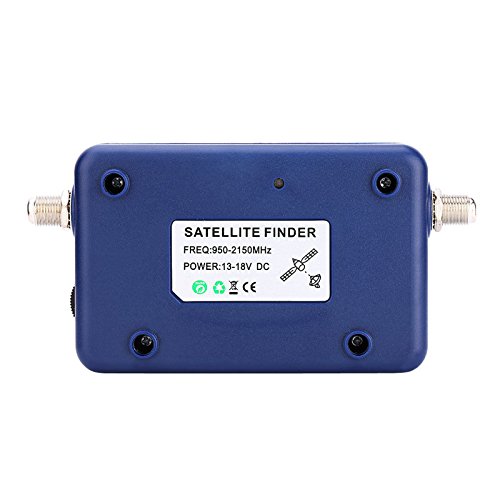

Frequency: 950-2150Mhz

Input level: -40dBm to -10dBm

Impedance: 75|￢Gain: ￢Y10dB

Power: 13-18V DC

Operating temperature: 0-40 Celsius Degree

Features

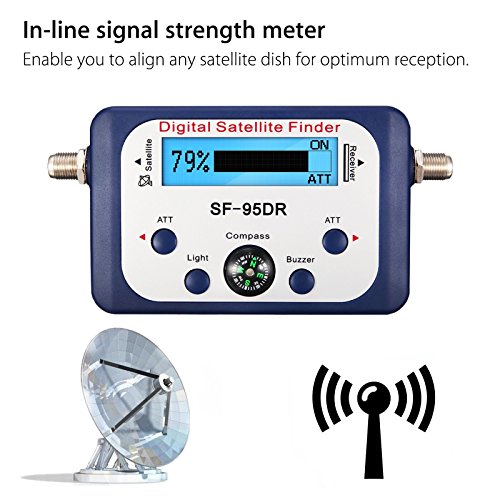

In-line signal strength meter.

Enable you to align any satellite dish for optimum reception.

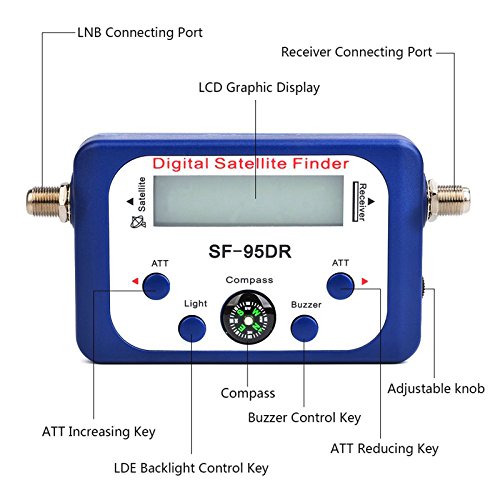

With LCD backlight, buzzer and attenuation control function.

Built-in amplifier compensates insertion loss.

Sensitive meter for in-line use.

Easy operation, attenuation, audio tone and back light.

Back light Illuminated meter display for night using.

The signal meter never needs to be recalibrated nor does it need complicated programming.

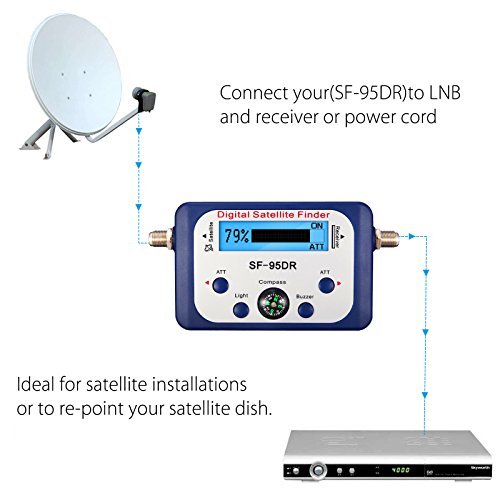

Powered by the receiver, nice tool for campers.

Lightweight and portable.
