Product Description

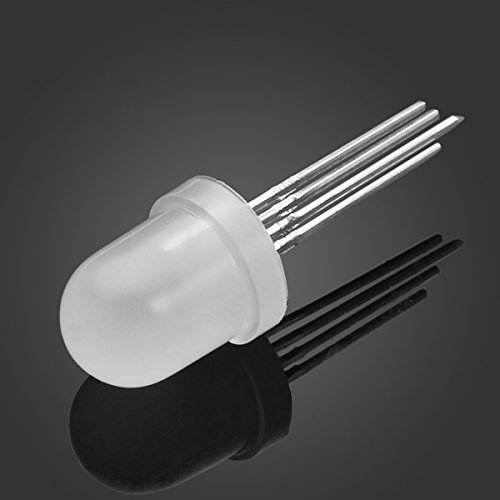

20Pcs RGB LED Diode 8mm Red/Green/Blue 4 Pin Light Emitting Diode

Feature:

Size: 8mm
Shape: Round
Emitted Colour : Red / Green / Blue
Lens Color : Diffused
Luminous Intensity: 200-300/800-100/300-400mcd
Forward Voltage (V) : 1.9-2.1v 3.0-3.4v
View Angle: About 25 degree.

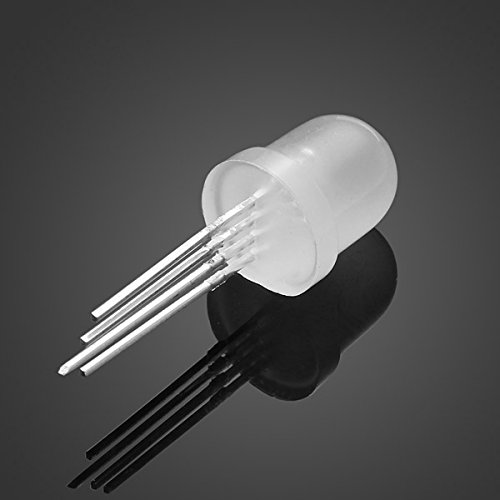

Pins sequence: RED / Common Anode (positive terminal, longest pin) / Green / Blue
Maximum reverse voltage: VR 5 (v)
Forward DC current: 20mA

Description:

Red
2.0V-2.2V minimum forward voltage, 20mA
622-625nm dominant wavelength

Green
3.2V-3.4V minimum forward voltage, 20mA
520-525nm dominant wavelength

Blue
3.0-3.2V minimum forward voltage, 20mA
465-468nm dominant wavelength

Common Anode (postive input) - LEDs have separate Ground connection (negative input)
Use separate resistors for each color to limit current to max 20mA

Package included:

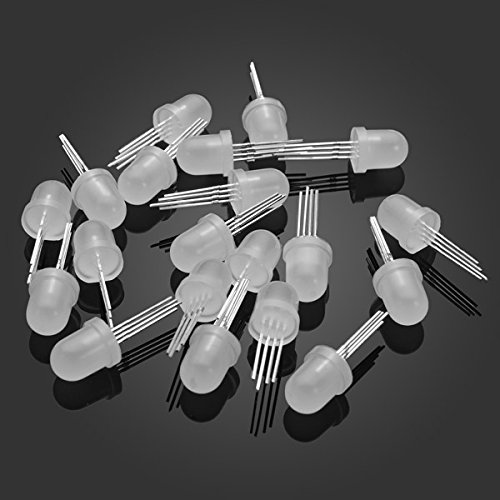

20 x LED Diodes
