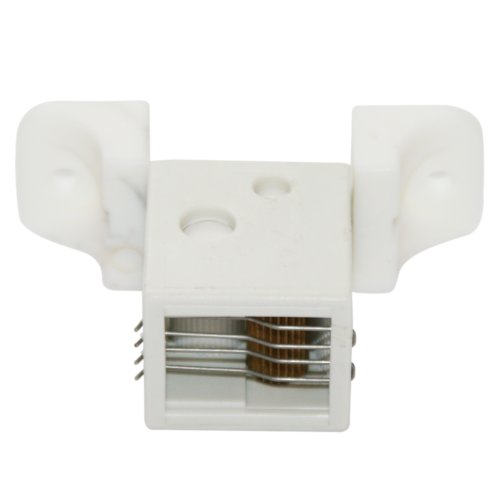

ROMAN SHADE CORD LOCKS-5 SLOTS-MAX 10 CORDS

FEATURES

  • Heavy Duty Professional Cord Locks
  • Maximum number of 10 cords, maximum shade lifting weight is 22 lbs
  • White Cordlock is 1 inch wide x 2 3/4 inch long x 2" drop
  • Easy to use for DIY projects
  • Can be used with 1.4mm and 1.8mm cord

SPECIFICATION

Model No.1314
Product Size3 Slots: Up to 6 Cords
Item Dimension15.24 x 7.62 x 15.24 Cm
Package Dimension5.33 x 1.78 x 9.65 Cm
Package Weight0.01 ~ 0.01 Kg
Product GroupHome
AvailabilityAvailable (Usually ships in 1-4 business days)

DESCRIPTION

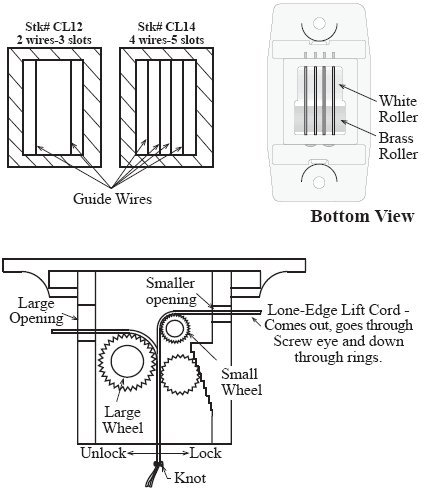

Minimum board projection front to back is 1 1/2" for mounting. Maximum number of 6 cords (CL11) and 10 cords (CL14) that can be used per lock. If there are more than the max cords, another cord lock can be used. Maximum shade lifting weight is 20 lbs for (CL11) an 22 lbs. for (CL14) .Mounting base width of CL11 is less than 3/4, but can be mounted on the edge of a 1"board. Cord lock is unique because the cord on the side of the shade enters the cord lock on one side and the other cords enter from the opposite side. This design allows moving the mechanism away from the end of the head-rail and makes locking the shades easy when inside mounted. Can be mounted on the right or left side of shade and cords will still run smoothly. Unique design resists sticking or jamming of cords inside the cord lock. Made from a durable, UV stable, high-tech polymer resin. Fast and easy to install. Cord lock also swivels forward and backwards to allow smooth operations of the shade and prevent cord jamming.
