Item Descriptions:
【specification】
● Composite Video Input Terminal Model: RCA
● Input:
Composite video x1 1.0 V pp 75 ohm, PAL / NTSC auto compatible
S video x 1 Y: 1.0 V p - p 75 Ω, C: 0.6 V p - p 75 Ω, PAL / NTSC auto compatible
HDMI x 1 DDC: 5 Vp - p TTL TMDS 0.5 V - 1.0 V p - p
● Output: HDMI x1
● One of the three inputs is output to HDMI.
● The HDMI input is delivered to the HDMI output as it is.
● PAL / NTSC compatible
● Resolution that can be input to HDMI 480p @ 60 Hz, 480i @ 60 Hz, 576 i @ 50 Hz, 576 p @ 50 Hz, 720 p @ 50/60 Hz, 1080 i @ 50/60 Hz, 1080 p @ 50/60 Hz
● Output resolution 720P / 1080P switchable.
State indicator lamp present.
Red 720 P, Green 1080 P.
Switch circulation switching at 720 P / 50 Hz, 1080 P / 50 Hz, 720 P / 60 Hz, 1080 P / 60 Hz.
● Frame rate conversion function from 50 Hz to 60 Hz
● Power indicator LED installed
● Power consumption 3.4 W or less
● Power supply DC 5V
● Dimensions 129 x 85 x 25.5 mm
● This equipment is based on design and manufacture of HDMI Association Adviser Shenzhen Technology Co., Ltd.
The advertiser has a position to accurately acquire the technical information of HDMI and reflect it in design manufacturing.
【Packing Contents】
● Main body
● AC adapter
● Manual
● Original manual for creating Aisil
[Usage Notes cable length]
If the wiring length of the HDMI cable exceeds 6 m, the control signal may not be transmitted correctly even if the image and sound are transmitted correctly.
In that case, images and sounds are occasionally interrupted, and there are times when it looks like a breakdown of equipment.
When HDMI exceeds 6 m, please use the HDMI extender to obtain stable operation.
Features:
- Please enter model number Confirm this is compatible:
- VBS - HDMI 363a converts composite video and S video to HDMI signal.
- It converts LR's stereo audio to HDMI at the same time.

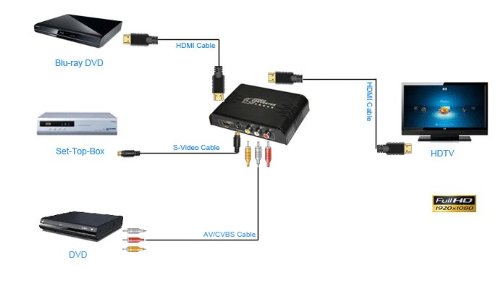

- If you use this, you will be able to see the output of cameras and analog video recorders on Hi - vision televisions, projectors, PC monitors and enjoy audio with digital amps.
- With high-performance processing technology, Hi-Vision images display beautiful images without flicker or roughness.
- It is also easy to add to the existing wiring as it is possible to output the HDMI you entered as it is.
- The output can be easily switched between 720P and 1080P (full high vision) resolution with a switch.
- The operation status can be confirmed by character information appearing in the output image.
- It is initial failure 2 weeks correspondence.
Product information:
Shipping Weight: 340 g
Package Dimensions: 7.01 x 15.19 x 19.81 cm
