Product Description

Product Dimension

Length 115mm
Width 120mm
Depth 23mm

Hardware Specifications

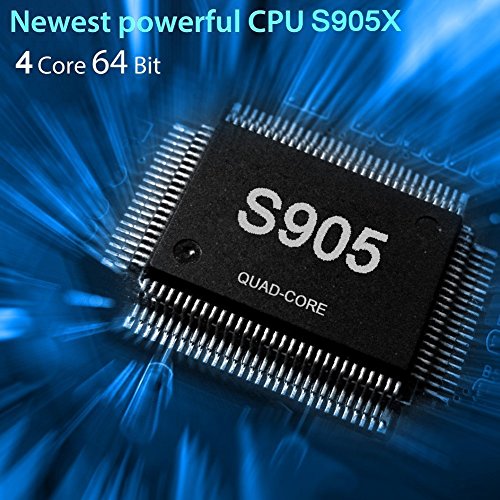

Chipset AML S905X Quad-Core ARM Cortex-A53 up to 1.5GHz
GPU Penta-Core ARM Mali-450 up to 750Mhz
Storage 16GB EMMC
Memory 1GB DDR3
Output Resolution 4K x 2K up to 60fps
OS Android 6.0.1

VideoAudio Format

Video Decoder VP9/H.265 up to 4Kx2K@60fps, H.264/MPEG-1/2/4 VC-1/AVS/RealVideo up to 1080p@60fps
Support Video Format mkv/wmv/mpg/mpeg/dat/avi/mov/iso/mp4/rm
Audio Decoder MP3/AAC/WMA/RM/FLAC/OGG
Support Photo format HD JPEG/BMP/GIF/PNG/TIFF
OSD type of languages English/French/German/Spanish/Italian/ etc multilateral languages

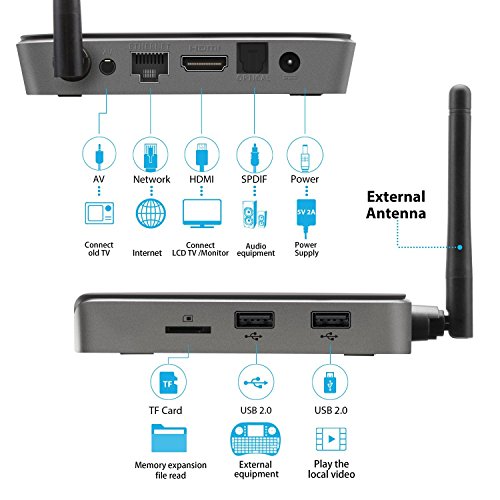

Output Input

USB host 2 High speed USB 2.0 (1 OTG and 1 HOST), support USB Flash Drive and USB HDD
Card reader SD/SDHC/MMC cards
HDMI HDMI 2.0a With 3D,HDR,CEC and 4Kx2K@60fps max resolution
LAN 10/100M standard RJ-45 Ethernet

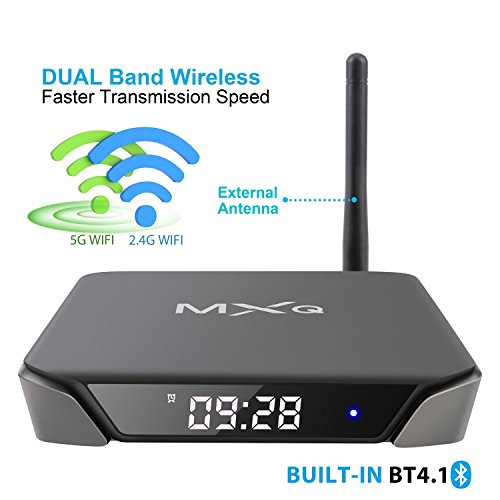

Wireless 802.11ac/a/b/g/n Dual Band Wi-F
AV Support Stereo Audio and CVBS 480i/576i SD Video
SPDIF Support Optical Output

Others

Power Supply DC 5V/2A
Accessory

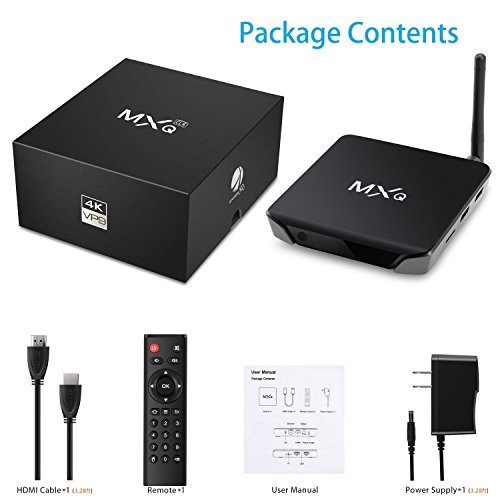

Remote control, User manual, Power supply, HDMI cable
Option:
Support mouse and keyboard via USB or BT;Support 2.4GHz wireless mouse and keyboard via 2.4GH
