Item Descriptions:

size:

Ver 2.1

| Color:

Black

TWS (Version 2.1) designed for athletes performing intense sports

High sound quality complete wireless earphone designed considering athletes performing intense exercise

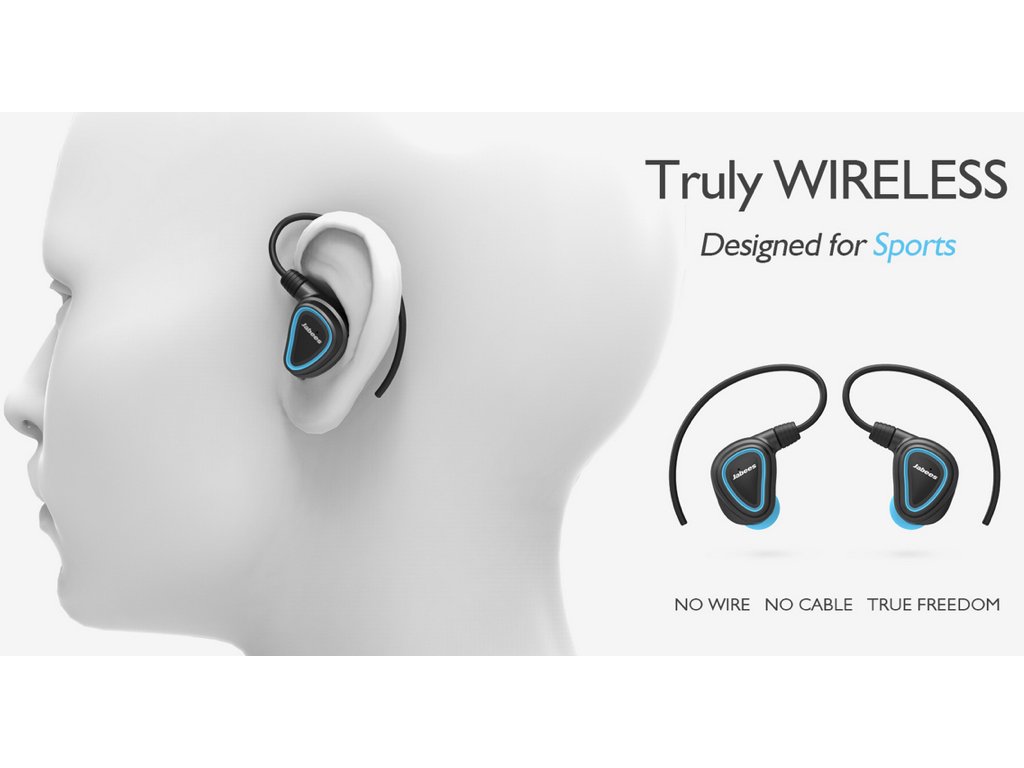

Complete wireless

Perfect wireless is ideal for sports use where wires interfere

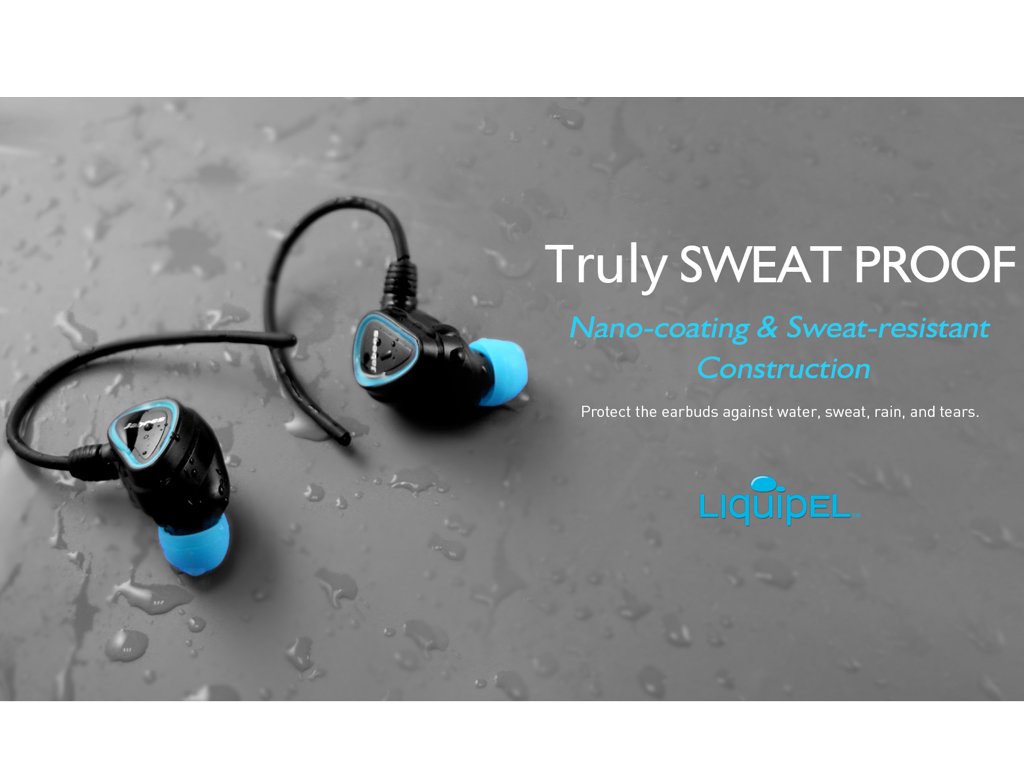

Sweat Design & Nano-Coating's antiperspirant design also accommodates sweat and sudden rain during exercise

PX 4 is protection against splash.

We sprinkle water from all angles with a water volume of 0.07 L / min and guarantee that it will not be submerged by sprinkling for at least 5 minutes.

With ergonomic design, firmly worn in the ear

Even in non-wearing ear hooks, it is designed to have a shape that will not fall off the ear if under normal use.

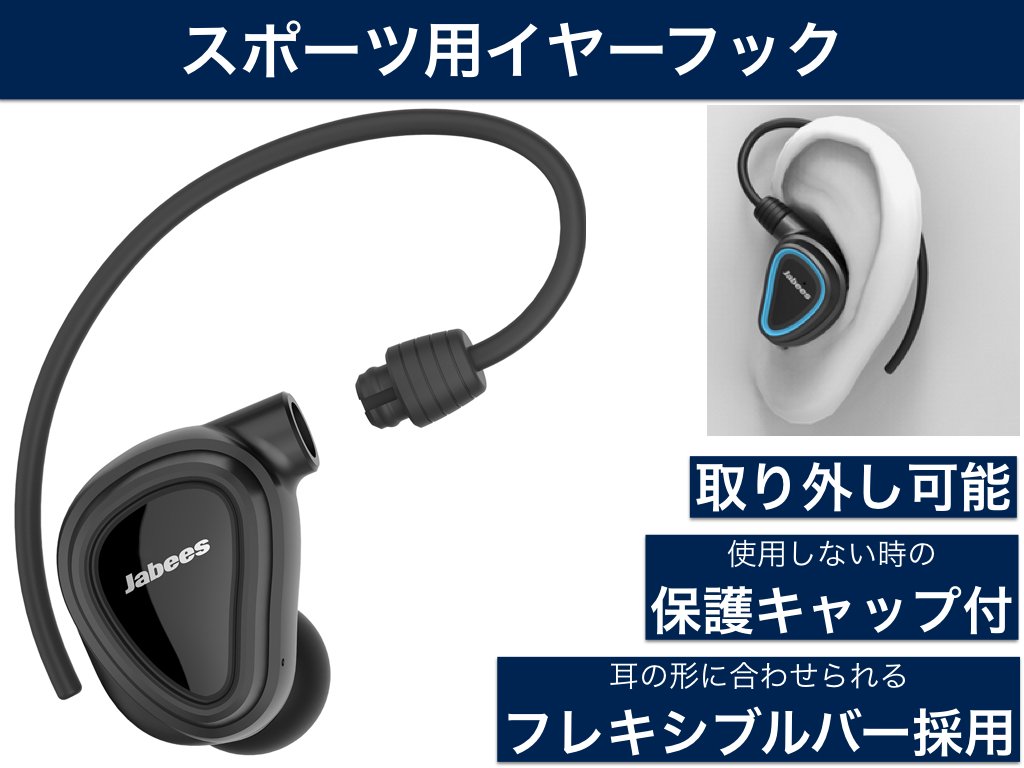

Removable ear hook

Materials that can be adjusted in shape

Even against intense exercise, prevent falling

Flexible type in which problems with fixed type discomfort and pain are improved

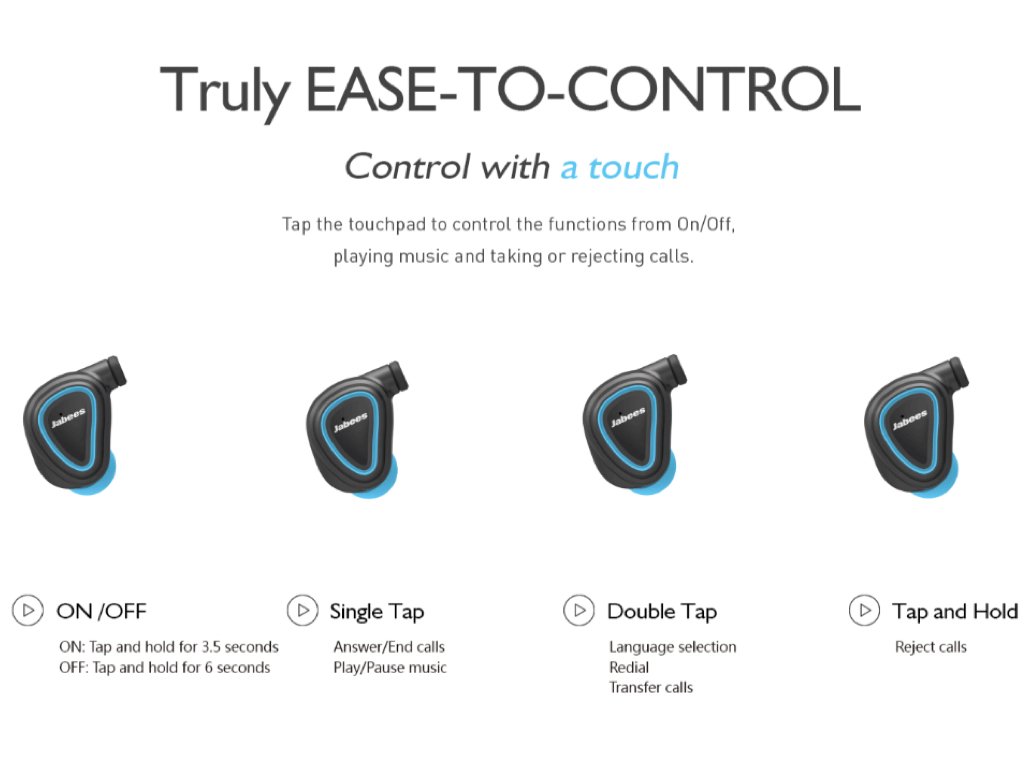

Remote control operation

Music: Play / Pause

Telephone: Receiving / End / Reject / Redial / Call Waiting

The call waiting function is available only when there is a contract with a communication carrier.

Switching: Switching speaker of smartphone / earphone

Caution: Because it was designed mainly for miniaturization and weight reduction, there is no volume adjustment function.

Note: The position of the microphone of the complete Wyres earphone is physically located in the ear and away from the mouth, so depending on the situation, many noises enter.

Calling is possible, but it is not a product for calling purposes.

For calling purposes, it is recommended not to use a complete wireless earphone, but to select a device where the headset or microphone position comes to the mouth.

About main differences in version

Version 1.0: Global model

In the case of using the city center in Japan, radio interference was a concern, so it is not sold in Japan

Version 2.0: Global model

Unified global model in the US, Europe and Asia.

Voice guides and user manuals are in English / Chinese.

Version 2.1: Regional model

In Japan, Europe and the United States, since there were many inquiries by language switching of version 2.0, the audio language was only English, the user manual was English / Japanese

Excellent practicality

While being compact / lightweight, Jabees Sheild has improved the problems that many of the conventional full wireless earphones had.

High-quality sound

Realization of high sound quality in TWS by latest chip adoption and Jabees sound engineer

Use latest Bluetooth chip

Compared with conventional products, we are improving the stability.

Note: Since the stability varies depending on the radio wave condition in the surroundings, it is not the content to guarantee.

Maximum usage time

Music playing 3 hours

Call 4 hours

Standby for 50 hours

Charging 2.5 hours

Package / Jabees Brand

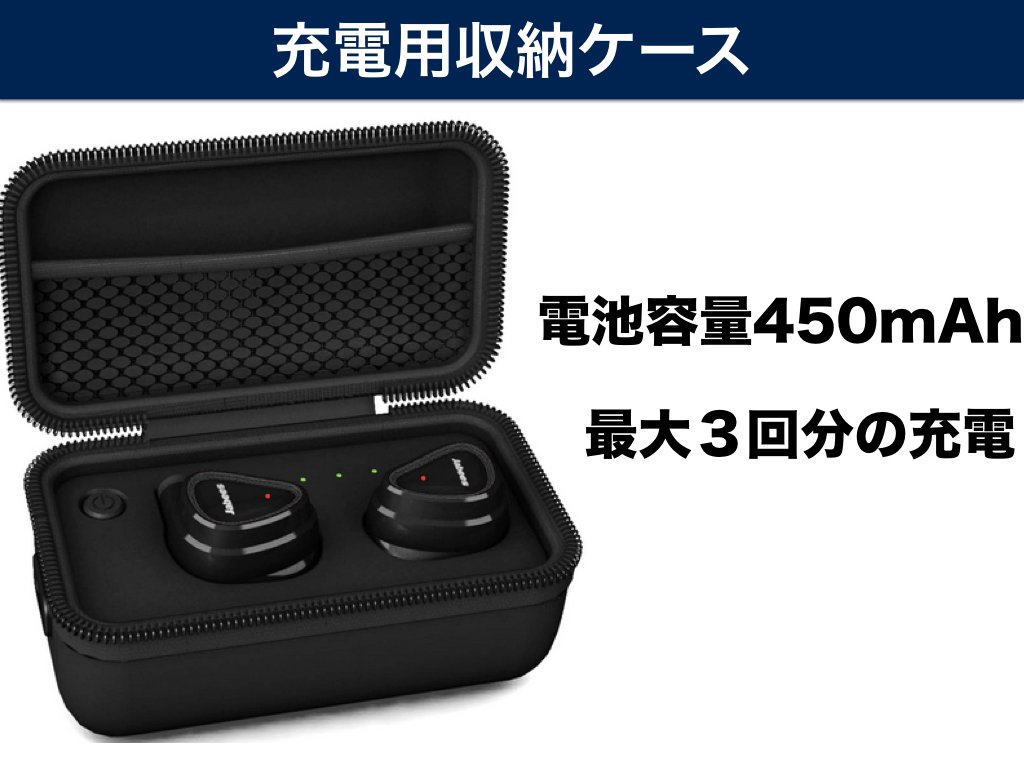

A battery of 450 mAH is built in the storage case of Jabees Sheild.

With full charge, you can charge up to 3 times

Even with use in outfield, you can use without worrying about outlet

CAUTION: Never use the cable supplied with IQOS.

Cables attached to IQOS are highly likely to have different resistance values, leading to destruction of non-compliant products regardless of Jabees Sheild.

Be sure to charge with supplied cable.

how to use

Jabees Sheild can be used with simple pairing.

There is also a factory setting to return to the shipping state, so you can easily solve problems with incorrect settings.

Japanese User Manual

PDF version is available from the website of Senseability in the Japanese user manual of Version 2.0.

Jabees brand

Founded in 2004, it is a private brand of a well-established OEM / ODM factory Freetek International Inc specializing in wireless and sound.

Many manufacturers shut down their own factories from the 2000s, and the form was entrusted to outsource from development to production.

It will be a company that has supported various brands including the US major national brand behind the scenes and continues to grow.

There is only one OEM / ODM factory possessing the sound development center, Freetek is one of them.

Jabees will become a private brand right under this factory and it will become a noteworthy brand where dealers are increasing all over the world at once.

In case

In using True Wireless Earphone (TWS)

Jabees Sheild (Version 2.0) has been quickly changing to the latest Bluetooth chip.

As a result, the TWS version has been greatly improved against the problems of sound quality and stability that the conventional TWS had.

However, since the battery (output) and the antenna are physically very small in TWS, disturbance may occur due to ambient radio wave interference.

In this case, improving may be improved by placing the smartphone near the left earphone and turning the back side with the antenna outward.

(The main of Jabees Sheild is on the left side, the sub is on the right side, the human body becomes an obstacle against radio waves.)

Although the complete wireless earphone has the advantage of being released from the wire, there are minus points such as the physical position of the microphone and the number of function keys.

It is important that product purpose and purchaser's purpose of use match.

Jabees Shield is a product designed for athletes who exercise intensely.

Regions not recommending TWS (not only Jabees Shield, but all TWSs)

Regions with many wireless companies (eg Tokyo area around Kanda)

Areas where security cameras and automatic doors are muddy (places where the 2.4 GHz band calling equipment is in an uproar)

Highways and warehouses (problems with long distance truck radio equipment)

Crowd with many Bluetooth equipment users

Devices not recommending TWS (not limited to Jabees Shield, all TWSs are targeted)

Samsung S6

Samsung S7

Note: Samsung S8 (In case of connection failure or noise problem in 1-2 months after Bluetooth earphones in general, there are cases reported to be restored by S8 initialization.) In this issue,

The firmware update schedule is disclosed, so please refer to it.)

Frequently Asked Questions

Q1】 Only one sound flows.

【A1】 Shield has one ear mode and binaural mode, it is one ear mode.

【Q2】 Two Shields are displayed on the Bluetooth pairing setting screen.

【Q2】 The left and right Shields are not In-Sync (Pairing), it is in one ear mode.

【Q3】 I want to switch to binaural mode

[A3] We recommend that you enter the pairing mode manually.

procedure

(1) Preparing an easy-to-configure environment

(1-1) Delete the registered Shield from the smartphone's Bluetooth setting screen.

(1-2) Turn off surrounding Bluetooth equipment including smartphone

(2) In-Sync (synchro · pairing) the left and right earphones.

(2-1) Turn on the left and right earphones.

(2-1-1) Red LED blinks

(2-2) Touch both earphones for about 3 seconds to forcibly enter the pairing mode.

(2-2-1) The green LED lights up.

(2-3) Wait for pairing completion.

(2-3-1) The pairing completion status is successful when the blinking green lights on the right side and the red / green blinking state on the left side.

(2-3-2) The time required for pairing completion depends on the surrounding radio wave environment.

(2-3-3) Even if you wait for about 1 minute, if it is not successful, turn off the power of both earphones once, turn it on again, and repeat from (2-1).

(3) Connect with the smartphone.

(3-1) Turn on the power of the smartphone and turn on Bluetooth.

(3-2) When Shield is displayed, pairing setting is done.

(3-2-1) In Shield in In-Sync state, the left earphone performs Bluetooth pairing with smartphone, so there is only one display.

(4) When pairing setting can not be made easily

(4-1) Smartphone side

(4-1-1) On / Off of smartphone side Bluetooth

(4-1-2) Power on / off on the smartphone side

Please do the above work.

(4-2) Earphone Side

(4-2-1) If you turn off / on both earphones, the earphone already set up in (2) will automatically become In - Sync (Sync / Pairing).

(4-2-2) Turn on smartphone side Bluetooth setting.

Note: There are models that are difficult to connect to Bluetooth, depending on the firmware and software on the smartphone side.

As bugs in smartphones are eliminated by updating, please always update to the latest firmware.

(We will separate by performing connection test with other equipment such as PC.)

【Q5】 When using an ear hook, it falls backwards

【A5】 Wrong ear hook attachment will cause falling.

When wearing hooks, lightly hit the inner side of the helicopter, and install it so that the force is applied from the outside (ear ring) to the inside (ear hole).

On the contrary, if you touch the head side and attach it, the force will work from the inside (head) to the outside, causing it to fall.

【Q6】 Noise is generated

【A6】 Many reasons for noise can be assumed.

【A6-1】 Physical problem: This is a case where the sound unit becomes a problem.

When this trouble occurs at the time of initial purchase, we will exchange as initial failure support period.

For more than one month, the possibility of a user failure is increased.

Physically falling, damaging, juice and other liquid contamination results.

【A6-2】 Radio Frequency Interference: There are many crowds of people using Bluetooth, electronic equipment, radio, Wifi, household appliances, radar etc. go up.

It will be resolved by moving the place.

【A6-3】 Channel: Bluetooth channel may not be properly set when pairing.

When it is set in a state somewhat different from the actual frequency, there are various factors such as bounced radio waves, radio waves passing through obstacles such as the human body, ghost phenomenon and so on.

It will be repaired by pairing again.

【A6-4】 Playback machine side problem: There is a possibility that the music radio wave is collapsed when it is sent from the playback machine.

There are direct obstacles such as the Bluetooth antenna part on the playback machine side, but in many cases indirect fault cases caused by electrical system faults and software / firmware side bugs are more likely.

As an example, using the MFi unauthorized product in the case of the iPhone will damage the internal electric circuit and cause noise.

Because Galazy S6 and S7 are weak Bluetooth radio waves, we refrain from purchasing as non-compliant.

Besides Shield, reports from Galaxy S8 users that Bluetooth earphone problems will occur in 1 to 2 months are also received.

At the same time we report that it can be repaired by initialization.

Since the update time differs for each country in Samsung, we recommend that you refer to Galaxy's English site for more information.

[Q7] Switch from English to Chinese.

【A7】 Shield (Version 2.0) It became a unified model, both English and Chinese are supported.

Double-clicking in a state where no Bluetooth connection is made after turning on the power changes the language.

Version 2.1 has been changed to English only.

【Q8】 I can not make a call in a clear state.

【A8】 Complete wireless earphone is not a device designed for calling purpose.

Although the position of the microphone of the equipment for calling is set at the mouth, the position of the microphone is far away from the ear side of the complete wireless earphone.

Orientation of microphone sound collection

Features:

• Please enter model number Confirm this is compatible:
• It became a product which improved the problem of the conventional TWS, and it is a True Wirelss Earphone
• Bluetooth 4.1 / Profile HFP / HSP / A2DP / AVRCP
• Considering the use in sweat and rain, design with enhanced antiperspirant properties and sweat / dustproof design with nanocoat (IPX 4)
• Maximum music playback: 3.5 hours / maximum calls: 4 hours / maximum wait: 50 hours, 5.2 g lightweight design
• CAUTION: Since the current for the fast charging cable for iQOS + quick charger is different, there is a danger of circuit damage if connected to non-compliant products.
• Be sure to use the supplied cable for charging.

Product information:

Shipping Weight: 258 g

Package Dimensions: 5.69 x 10.11 x 18.59 cm
