DEUTSCH 2-PIN (3 COMPLETED SET) CONNECTOR KIT WITH HOUSING, PINS & SEALS CRIMP STYLE TERMINALS 14-16 GAUGE

FEATURES

  • Deutsch 2-Pin (14-16 Gauge) ( 3 Set )
  • Temperature: Operating at temperatures -55°C to +125°C
  • Durability: No electrical or mechanical defects after 100 cycles of engagement and disengagement.
  • Insulation Resistance: 1000 megohms minimum at 25°C.
  • Immersion: IP68 rating

SPECIFICATION

Model No.2-Pin (14-16 Gauge) (3Set)
Package Dimension7.62 x 0.64 x 10.16 Cm
Package Weight0.07 ~ 0.09 Kg
Product GroupBISS
AvailabilityAvailable (Usually ships in 1-4 business days)

DESCRIPTION

Item Overview
DEUTSCH DT series connectors o er eld proven reliability and rugged quality. The DT design strengths include optional ange mounting, multi-pin arrangements, and design exibility. The DT series o ers the designer the ability to use multiple size 16 contacts, each with 13 amp continuous capacity, within a single shell.

Feature:
Accepts contact size 16 (13 amps)
14-16 AWG (2.00-0.50 mm2)
2 Pins arrangements
In-line, ange, or PCB mount
Rectangular, thermoplastic housing
Integrated latch for mating
Wedgelocks con rm contact alignment and retention
Product speci cation document: 108-151009

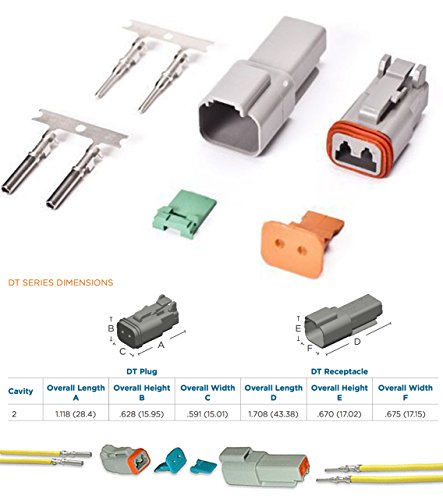

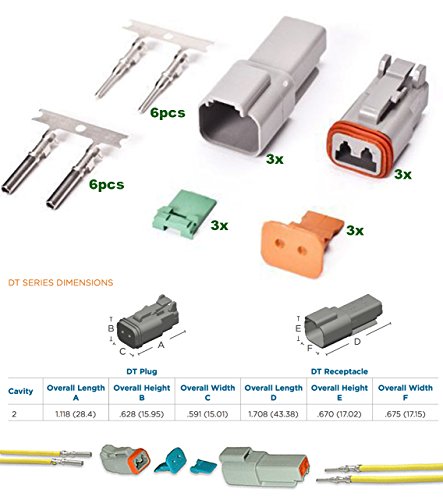

What's is included:
1x (2 pin) Deutsch Male Connector

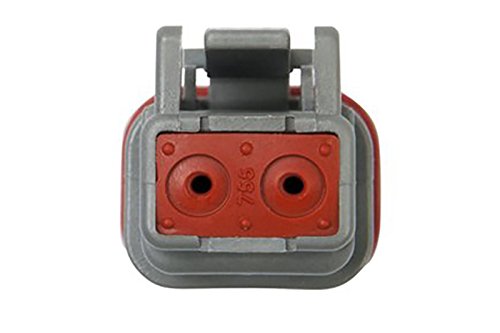

3x (2 pin) Dectsch Female Connector
3x Wedge for Lock Female
3x Wedge for Lock Male

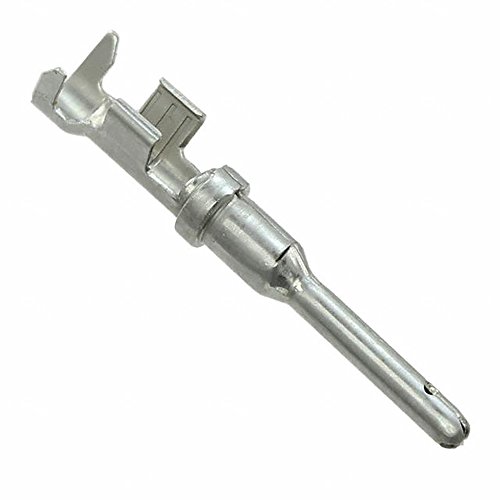

6x Male Crimp Type Terminals
6x Female Crimp Type Terminals
