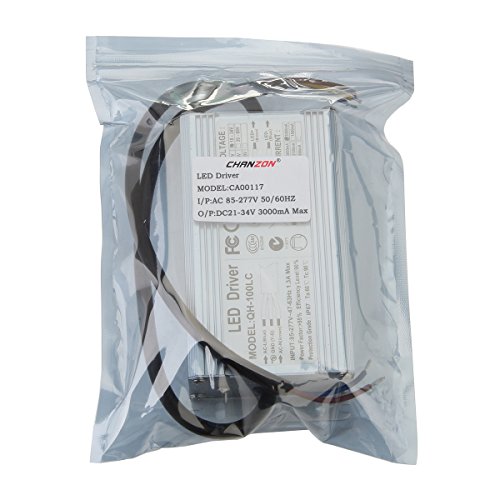

Chanzon LED Driver 3000mA (Constant Current Output) 21V-34V (In85-277V AC-DC) (7-10)x10 70W 80W 90W 100W IP67 Waterproof High Power Supply 3000 mA Lighting Transformer for 100 W COB Chips (Aluminium)





Q) 3000mA(Constant) 21-34V (7-10)*10 (100W COB)


A) 300mA(Constant) 3-20V (1-6)*1


C) 300mA(Constant) 36-66V (12-20)*1


D) 300mA(Constant) 60-120V (20-36)*1

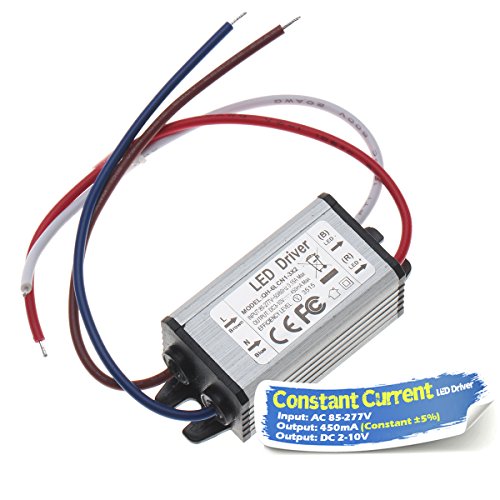

E) 450mA(Constant) 2-10V (1-3)*2W

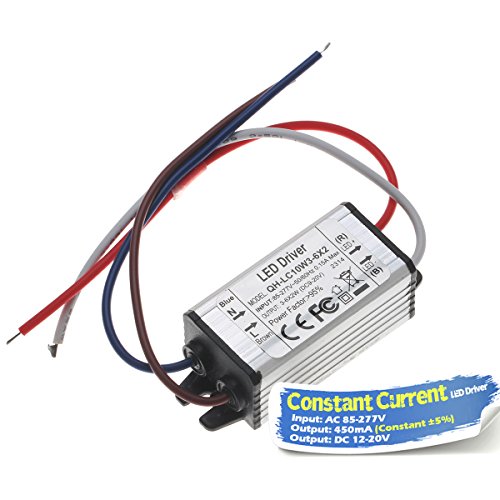

F) 450mA(Constant) 12-20V (4-6)*2W

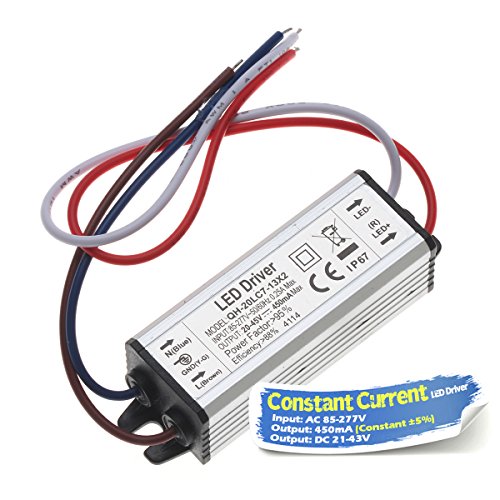

G) 450mA(Constant) 21-43V (7-13)*2W


H) 450mA(Constant) 39-83V (13-25)*2W

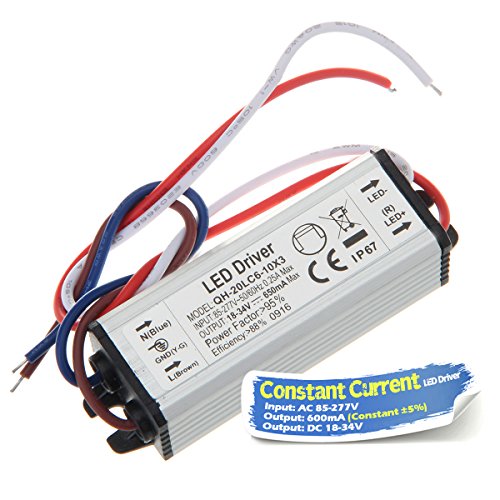

I) 600mA(Constant) 9-13.6V (3-4)*3W


J) 600mA(Constant) 18-34V (6-10)*3W (20W COB)


K) 600mA(Constant) 30-57V (10-18)*3W

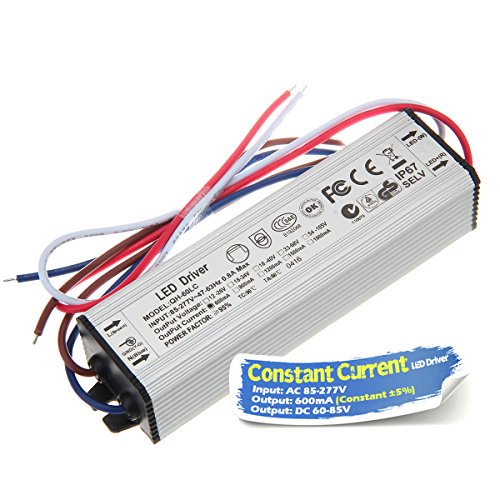

L) 600mA(Constant) 60-85V (18-25)*3W

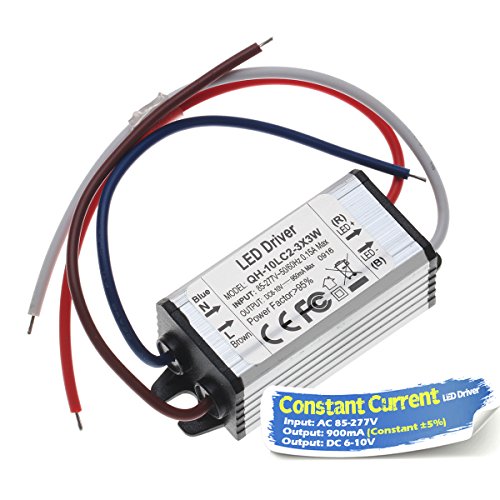

M) 900mA(Constant) 6-10V (2-3)*3 (10W COB)


N) 900mA(Constant) 12-20V (4-6)*3


O) 900mA(Constant) 18-39V (6-12)*3 (30W COB)


P) 1500mA(Constant) 18-34V (6-10)*5 (50W COB)

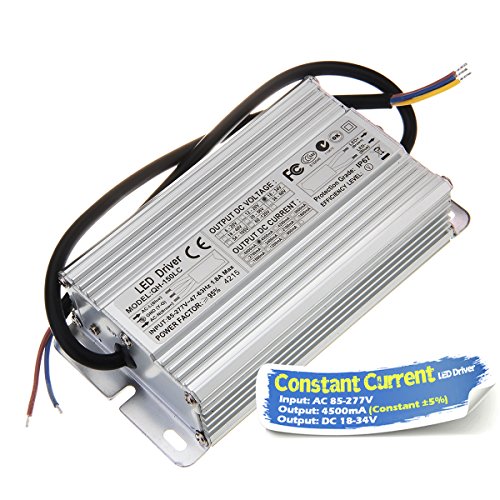

R) 4500mA(Constant) 18-34V (6-10)*15 (150W COB)

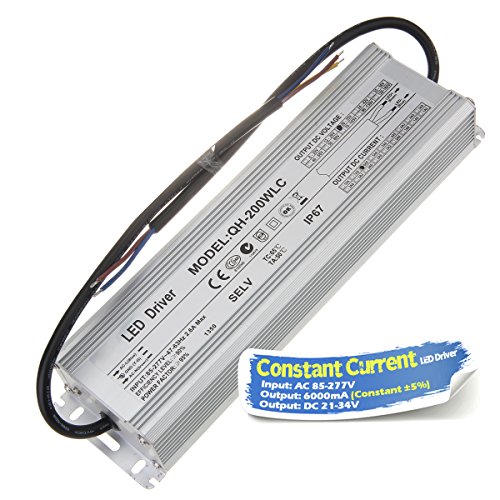

S) 6000mA(Constant) 21-34V (7-10)*20 (200W COB)

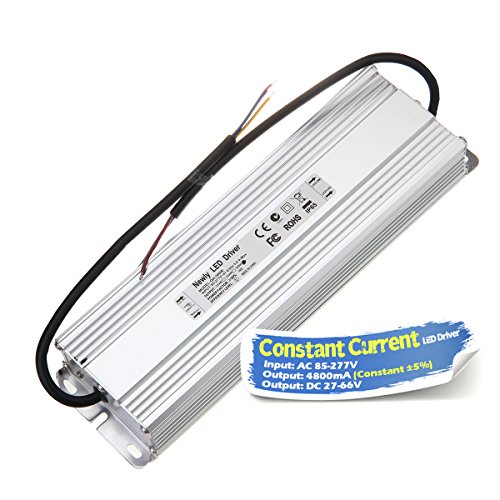

T) 4800mA(Constant) 27-66V (10-20)*16 (300W COB)

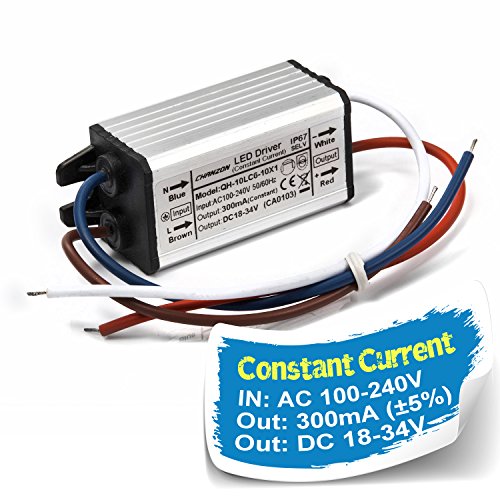

B) 300mA(Constant) 18-34V (6-10)*1

Product Description

Constant Current LED Drivers are known for their easy installation and are preferable because they supply the same amount of current regardless of how many or few lights are connected to it. LEDs work safest and most efficiently with a Constant Current LED Driver.

For many LED applications, it is desirable to utilize constant current drivers. Constant current LED drivers are ideal in that they offer designers more control for applications, providing them with the ability to design displays with almost no variation in brightness across the display.

Chanzon constant current LED drivers are high quality.

All of our power supply are CE certified in order to provide best support to your business!

CE :Complies with all the Essential Health and safety requirements from all the directives that applies to our products.With certain product quality control &; verification process.


Features:


Kindly Reminder:

  1. Please be aware of the positive (anode +) and negative (cathode -) of led products, install accordingly to avoid damage.
  2. Do not exceed the maximum voltage or current,otherwise the led Diode may burn out.
  3. For IP67 Waterproof LED drivers, be able to use in wet & &; rain eviroment but avoid underwater usage.
  4. Search for "chanzon constant current led driver" for more our led drivers (300mA,450mA,600mA,900mA,1500mA,3000mA,4500mA,6000mA).



Feature

Input: AC85-277V 50/60Hz • Output: Current 3000mA (Constant) ; Voltage 21-34V ; Power 70/80/90/100 W Watt

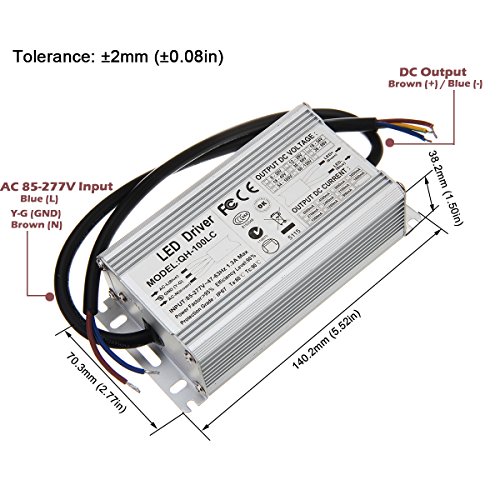

Size: 140.2*70.3*38.2 (mm) / 5.52*2.77*1.5 (inch) • Net Weight: 550g / 19.4oz
High Quality With CE Certificates • Long Life Span • No Noise • Isolation Protection • Safety
Efficiency:more than 90% • Insulated(Low Heat) • High Power Factor(PFC):more than 95% • Reliability
Constant Current Power Supply LED Drivers are used for most LED Products
Brand : CHANZON
MPN(PartNumber) : 1DY-CF-LC7-10X10
Product Dimensions(LxWxH) : 15x8x4cm ; 340 g
Package Dimensions(LxWxH) : 18x14x5cm ; 340 g
