Item Descriptions:

specification

Distance range: 5-1000 yards

Speed ​​measurement range: 0 - 300 KM / h

Magnification: 6X

Eyepiece size: 16 mm

Exit pupil diameter: 3.8 mm

Distance measurement accuracy: ± 1 Y (± 0.2%)

Speed ​​measurement accuracy: ± 5 KM / h

Weight: 224 g Battery included / 214 g battery disconnected

Outer dimensions: 110 x 75 x 45 mm

Operating temperature: -10 ° C to 50 ° C

Battery: CR2-3v

Usage explanation

Switch ON / OFF

Switch ON: Press the power button for 1 second

Switch OFF: Automatic power OFF

Mode switching

You can switch between the four modes by briefly pressing the mode button (M)

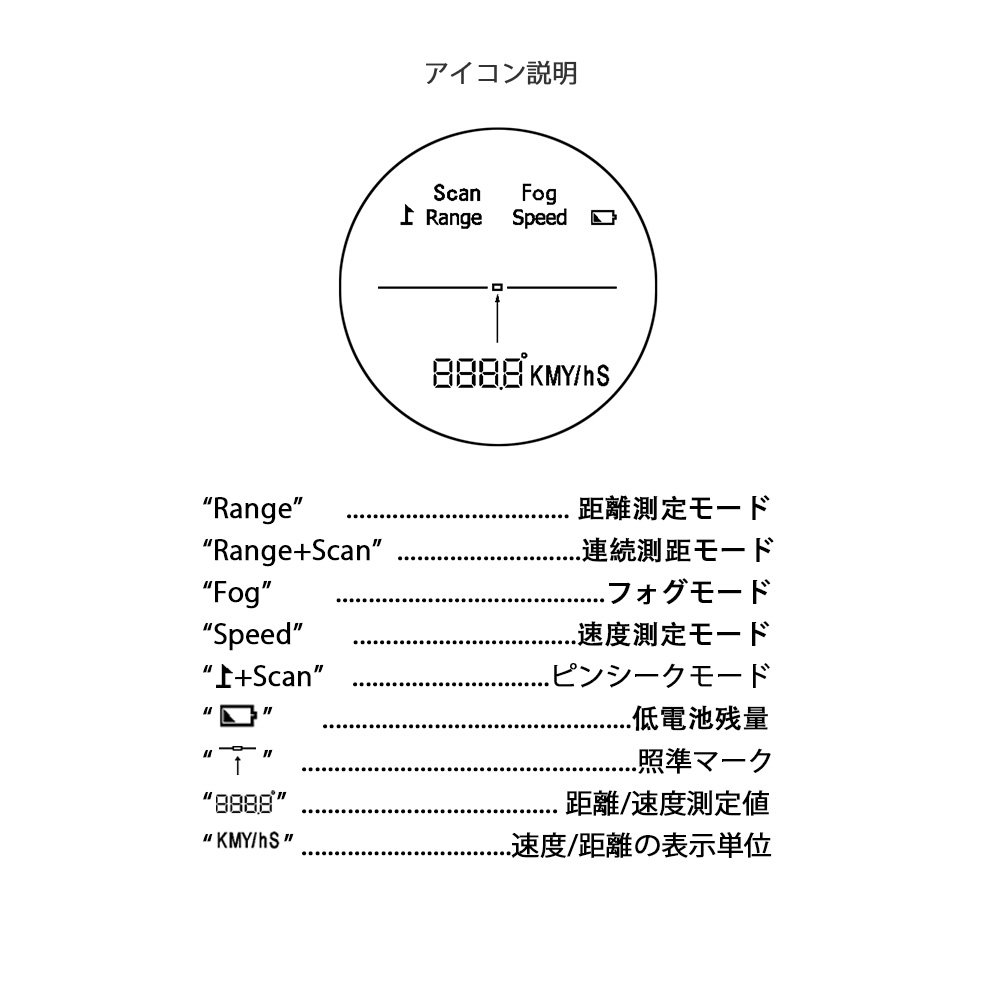

Distance measurement display

Distance is displayed as "M (meter)" or "Y (yard)"

The speed is displayed as "M / S" or "KM / H"

To change the display, press and hold the mode button for 1 second

Battery level indication

A mark will be displayed on the display as the remaining battery level becomes low

Replace the batteries as soon as possible when the mark is displayed

Four modes

1. "Ranging" mode

"Ranging mode" is selected immediately after turning on the power

Press the power button to start measurement

* Continuous measurement function: In the "ranging" mode, you can continuously measure the distance of the target by pressing and holding the power button, and the measurement result is displayed continuously.

2. "Pin seek" mode

Change to "pin seeking" mode and press the power button to start measurement

When measuring small targets pins and flags at a golf course, tremors and tilt etc. behind the pin may be measured due to camera shake.

Since it has a pin seek function, you can measure the distance to the golf pin flag by ignoring the object behind and displaying the distance to the golf pin flag on the front in priority

3. "Fog" mode

In the fog mode we will take care of short range interference in the fog weather

4. "Speed" mode

The distance of the moving object is measured twice and the speed is obtained by two distance difference and interval time

※ The speed can be measured only when the moving direction of the object is parallel to the measuring direction

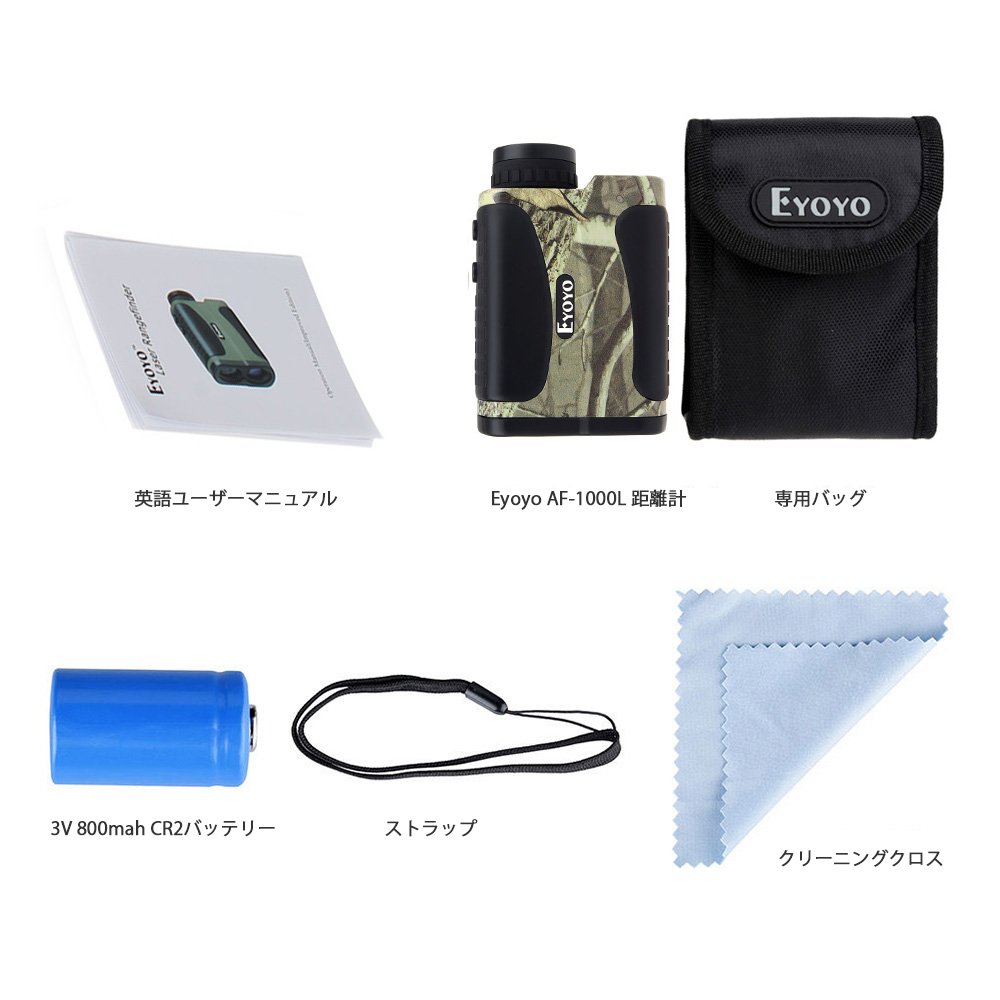

package:

1 x Golf range finder

1 x 3V CR2 battery

1 x Carrying Case

1 x English User Manual

(Japanese user manual is not included)

1 x Strap

1 x Cleaning cloth

Features:

• Please enter model number Confirm this is compatible:
• ■ Measurement range: Distance measurement: Max 1000 yards Speed ​​measurement: 0-300 KM / h ■ Accuracy: Distance measurement ± 1 Y (± 0.2%) Speed ​​measurement: ± 5 KM / h * Maximum measurement range is weather,
• It depends on color, surface shape, size and so on
• ■ Optical 6x Lens Lens You can adjust the diopter by turning the diopter adjusting ring on the eyepiece while watching the eyepiece
• ■ Four modes: 1. Distance measurement (with continuous measurement function) 2. Pin seek (function to capture pin flag accurately) 3. Fog 4. Speed ​​measurement
• ■ Strap and special pouch included: Convenient to carry ■ Simple 2 button operation ■ Built-in 800 mAh battery, auto power off function Saves power consumption
• Attention before purchasing: ※ Since attenuation due to rain, fog, etc. can not be avoided, rain, fog weather may not be able to measure the distance to the target properly ※ This product comes with a Japanese version manual
• We are not able to check from the item description page below for usage instructions If you have any questions during use, please do not hesitate to contact us

Product information:

Shipping Weight: 408 g

Package Dimensions: 7.19 x 11.99 x 16.99 cm
