Product Description

Product video please click link : youtu.be/whzgSzjj6Dw ( Copy the link to the browser)
Parameter

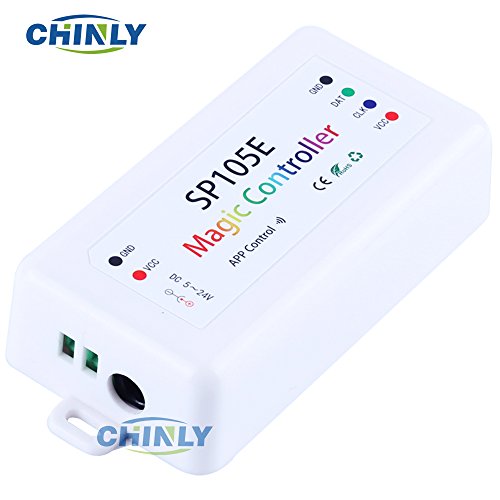

Model: SP105E Bluetooth Magic Dream Color Controller
Support IC type:WS2811/WS2812B/APA102/SK6812 Drive pixel quantity:600 pixels Working temperature: -20℃~60℃
Working voltage: DC5V~24V
Working current: 28mA~40mA
Remote distance: 20 Meters
Product size: 85mm*45mm*22mm
Product weight: 40g
Certificates: CE, RoHS

About APP
(1) The specialized App is available on both IOS and Android OS. (Hardware should support Bluetooth 4.0)
(2) Apple Device: iPhone4S, iPhone5/5S/5C, iPhone6S/6S Plus, iPhone6/ 6 Plus, supported IOS8.0 version or later.
(3) Android OS version should be Android 4.4 or later.
(4) Search "Magic-LED" or scanning the QR code on the operating instructions to download and install the App.

Kindly note

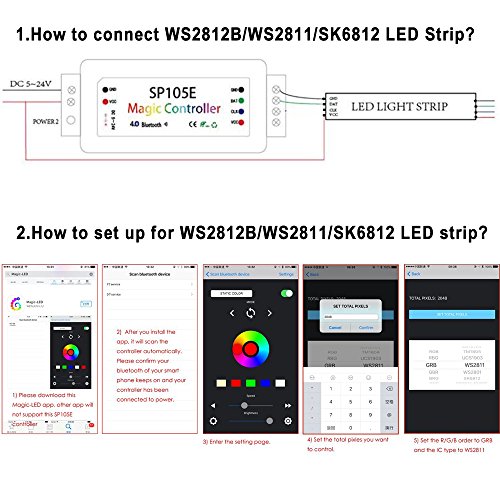

(1) To control WS2812B LED light, please choose WS2811 on the setting page.
(2)To controller WS2813 LED light, please choose WS2811 on the setting page and connect both DI wire and BI wire to the DAT port.
(3) Please read the description carefully and confirm whether your smart phone can be compatible with it. If not, please don't place the order.
(4) If you operate according to the user manual but it still cannot work well with your smart phone, please contact us for help or return. Thank you.
(5) Search "CHINLY" on Amazon for other interesting items offered by CHINLY.

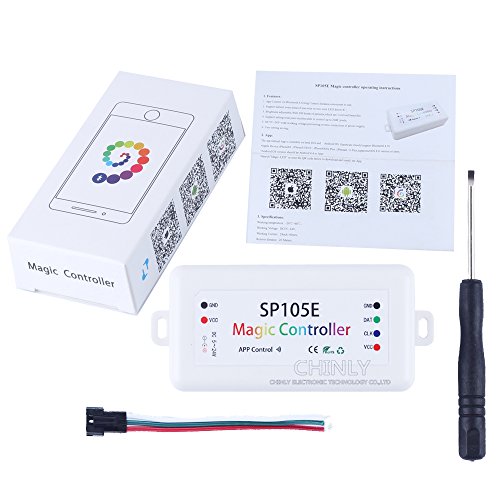

Package:
1x SP105E Bluetooth LED controller
1x 3pin female JST connector
1x Mini screwdriver
1x User manual

Feature

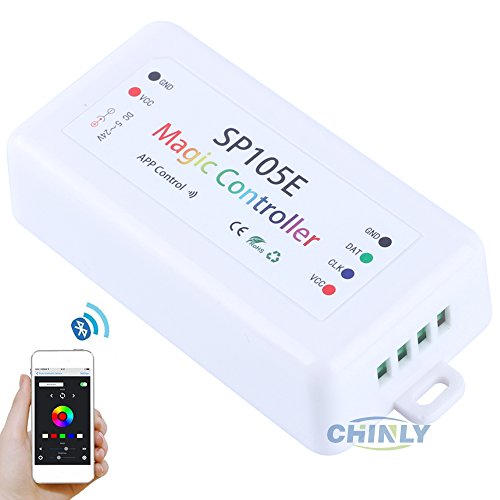

Easy to use. iOS Android app control via Bluetooth 4.0 or later version. Long control distance, convenient to use.
Wide compatibility. Support almost all the one-wire or two-wire LED driver IC, such as WS2811,WS2812B, WS2801, SK6812, SK6812-RGBW,WS2813, LPD6803, LPD8806, APA102, APA105, TM1804, TM1814, TM1914, TM1913, P9813, INK1003, UCS1903, DMX512. You can choose R/G/B channel order.
Rich color modes. Come with 200 kinds of color change modes, auto mode and static color mode, which are vivid and beautiful. Save user setting automatically when power off. Brightness is adjustable.
Support setting controlled total pixels number, able to control up to 2048 pixels.

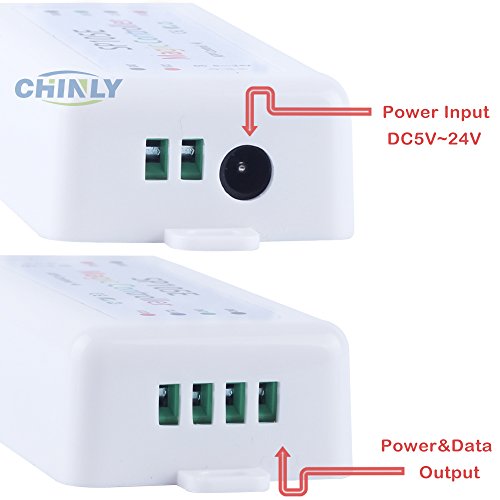

DC5V~24V wide working voltage, preventing reverse connection of power supply, protecting LED light and controller very well.
Brand : CHINLY
MPN(PartNumber) : SR5434
EAN : 0717850036935
Product Dimensions(LxWxH) : 6x3x11cm ; 45 g
Package Dimensions(LxWxH) : 11x6x3cm ; 45 g
