Security Web Camera features:
*Adopt 1/4 " CMOS image sensor,1MP
*Maximum resolution up to 1280*720 (720P)
*Support two-way intercom, voice prompt.
*ICR infrared filter automatic switching,realize the real day and night monitoring
*Support the standard clear, high-definition resolution to watch,to adapt for variety of network environment
*Support mobile phones,PC client real-time monitoring
*Support PTZ control,remote capture,audio and video recording
*Global network coverage,anytime,anywhere smooth Watch
*Support mobile APP (V12)
Security Web Camera Specifications:
|
Model No. |
H100-Q6 |
|
|
Camera |
Sensor type |
1/4” Progressive Scan CMOS |
|
Minimum illumination |
0.02Lux @(F2.0,AGC ON) ,0 Lux with IR |
|
|
shutter |
Shutter adaptation |
|
|
Camera lens |
3mm |
|
|
Lens interface type |
M12 |
|
|
Day and night conversion mode |
ICR infrared filter |
|
|
Digital noise reduction |
3D digital noise reduction |
|
|
Compression |
Video compression standard |
H.264 |
|
Coding type |
H.264 Main Profile |
|
|
Video compression rate |
HD, SD, rate adaptation. |
|
|
Audio compression standard |
AAC |
|
|
Audio compression rate |
Rate adaptation |
|
|
Image |
Maximum image size |
1280 × 720 |
|
frame rate |
Max:25fps network transmission rate: adaptive adjustment |
|
|
Image setting |
Brightness, contrast, saturation, etc. |
|
|
Network |
Storage function |
Support Micro SD card (max 64G) |
|
Intelligent alarm |
Video is lost, the network is disconnected, and the power is disconnected. |
|
|
General functions |
Reverse, capture, mobile alarm, password protection, |
|
|
Wireless |
Wireless standard |
IEEE802.11b, 802.11g, 802.11n Draft |
|
frequency range |
2.4 GHz ~ 2.4835 GHz |
|
|
Channel bandwidth |
Support 20/40MHz |
|
|
security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
|
|
transmission speed |
11b: 11Mbps,11g :54Mbps,11n :135Mbps |
|
|
General |
temperature and humidity |
-10 C ~50 C, the humidity is less than 95% (no condensation) |
|
Power |
DC 5V |
|
|
Power consumption |
3W MAX |
|
|
Infrared radiation distance |
MAX 5meter |
|
|
Size(mm) |
87.1mm x 87.1mm x 142.8mm |
|
|
weight |
400g(Containing packaging) |
|
Security Web Camera Detailed Pictures:

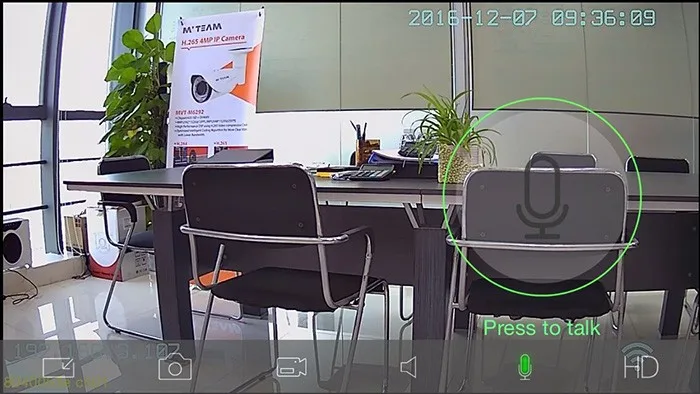

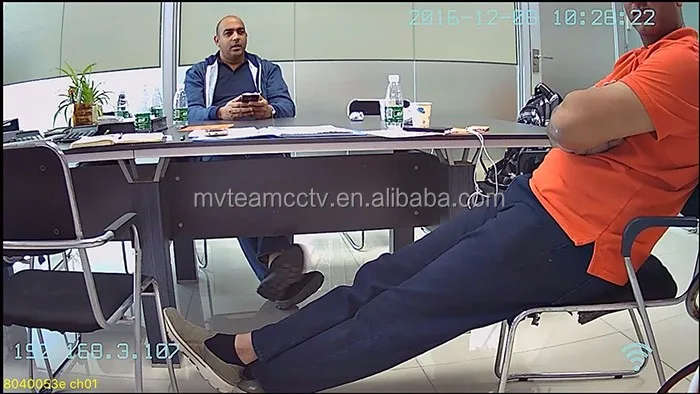

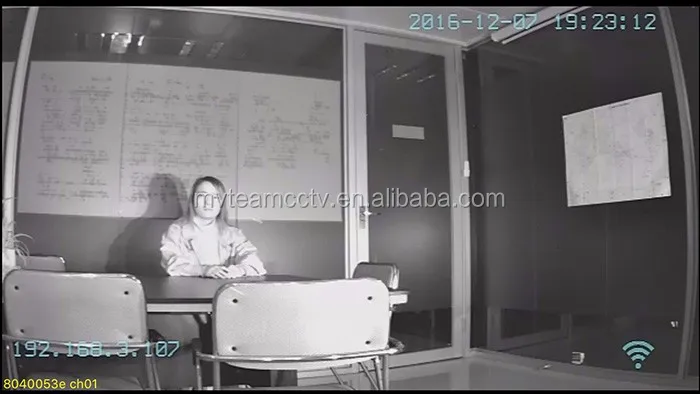

1-The improvements quality of pictures at daytime and night.
2-Sound quality repair. When remote view by phone, users are able to touch screen to left right or up down to adjust the monitored area and selectively with audio on or off.
Wifi IP Camera Security Camera Systems Homes Demo Online View(Sometime it disconnect off power, if you need see online demo view, please feel free to contact us directly)
When watch the live demo,you can slide your finger on screen to control the camera pan and tilt rotation.Also can click the microphone icon to experience the intercom function.If you want more clear image,could click the "HD" icon,it will switch to HD mode.Below are the steps how to view the live demo:

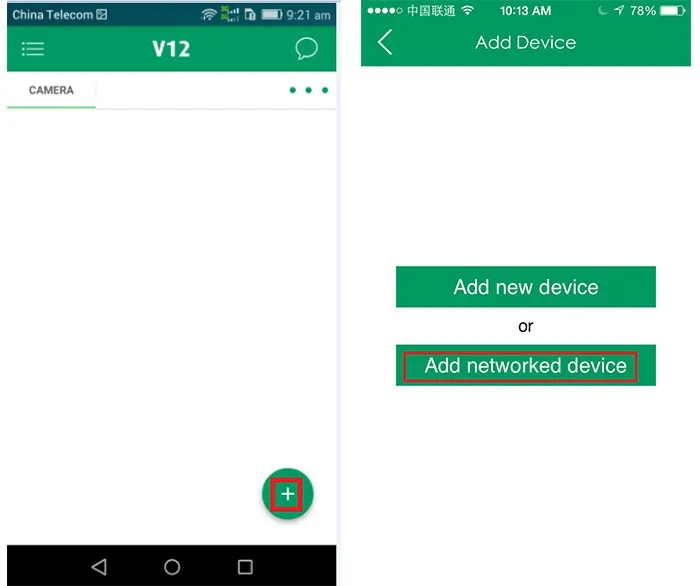

1-Download and install the APP V12 on your mobile phone
2-Open V12,click "+"-->Add networked device,then input as below:
Device ID:8040053e
User name:admin
Password:mvteam
After you finish as above, you will see online real demo for night/day time view.
