Product Description

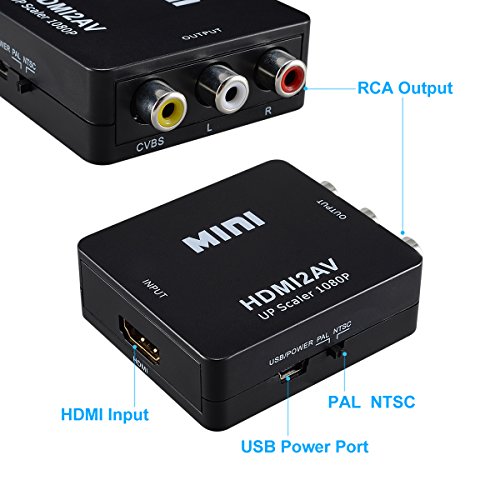

VicTal Mini HDMI to RCA/AV Converter Adapter
The Mini HDMI to RCA/AV Converter converts HDMI video/audio signal to AV(CVBS) composite video signal and the FL/FR stereo audio signals, supporting DVI system sideline signals.
It helps users to convert high quality of HDMI video signal into normal CVBS signal(standard-definition 480i,576i), used on devices such as TV, VHS VCR, DVD recorders,etc, supporting two formats of NTSC and PAL.

Features?:
1.Plug and play without drivers,portable and flexible.
2.Output audio is synchronous with video.
3.High bandwidth capability support 1920x1080@60Hz.
4.Support NTSC and PAL two standard TV formats output.
5.Compatible: HDMI 1.3

Specifications:
Output ports: 1x RCA (Yellow, White, Red).
Input ports: 1x HDMI.
Product dimension(mm): 66(D)x55(W)x20(H)
Weight: 40(g)

HDMI Input Resolution:
640x480@60Hz,800x600@60Hz
1024x768@60Hz,1280x720@60Hz
1280x1024@60Hz,1360x768@60Hz
1600x1200@60Hz,1920x1080@60Hz
480p/60Hz,576p/60Hz,576p/60Hz
720p50/60Hz,1080I50/60Hz,1080p/60Hz.
CVBS output:PAL,NTSC_M,and NTSC_J

Package content:
1 x HDMI to AV Converter
1 x USB Cable
1 x User Manual

NOTE:
1) Please do connect the power cable with power first to make the unit work before connecting to other ports.
2) Video signal transferring only, unable to improve video quality.
