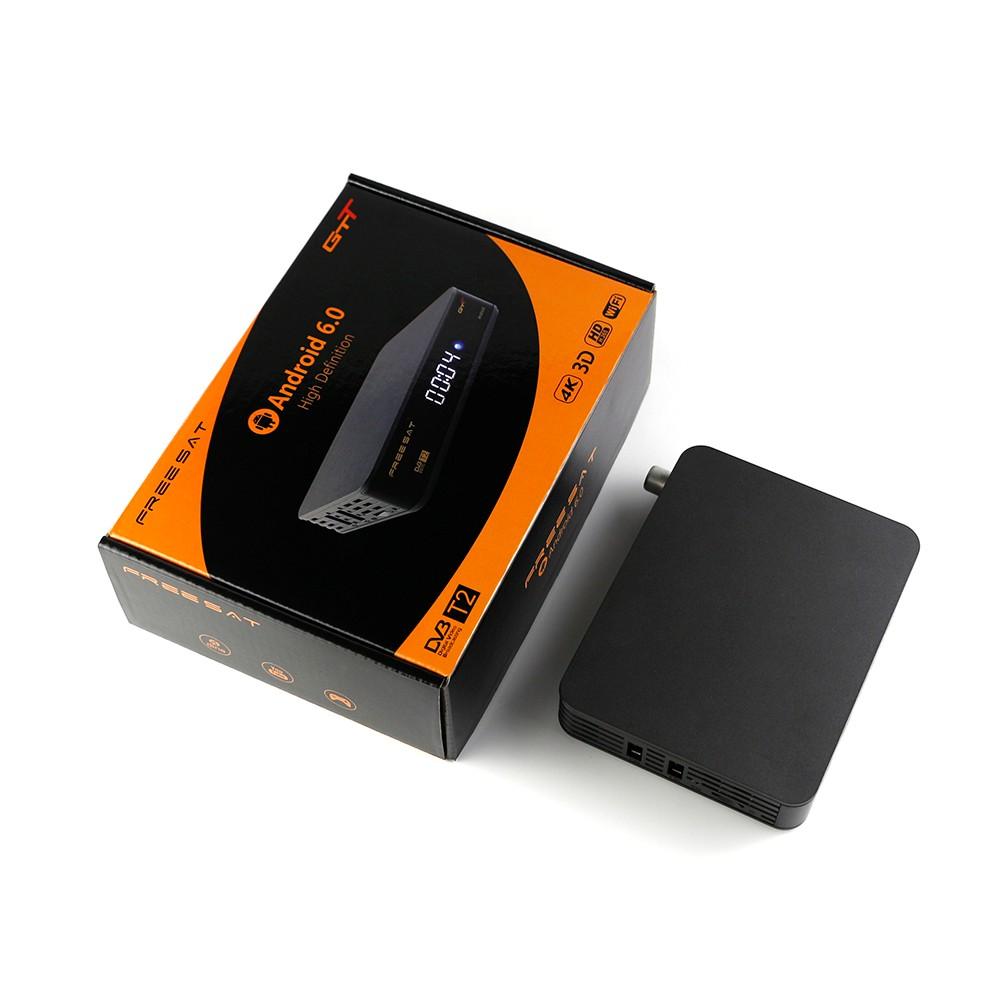

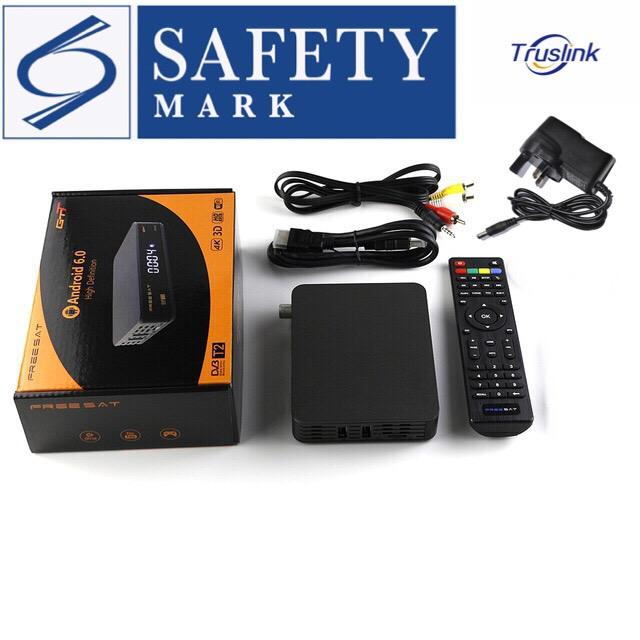

Package including:
Product Parameters
| 1.Memory Size: | |
| CPU | Amlogic S905D up to 2.0 GHz, Quad core ARM Cortex-A53 |
| GPU | Penta-core ARM Mali-450 , up to 750MHz+(DVFS) |
| Flash Memory | 8GB NAND Flash |
| DDR3 Memory | 1GB DDR3 |
| 2.DVB-T2/Cable Part | |
| DVB-T2/Cable | Tuner(Cantuner):MXL608, Demo:AVL6762 |
| Connector | 1*IEC 169-24 female 75Ω for input |
| Input Frequency Range | VHF:174~230MHz/ UHF:470~862MHz for DVB-T/T2;50MHz ~868MHz Full Band for DVB-Cable |
| Input LEVEL | -84/-5dBM |
| MPEG Profile Level | MPEG2 SD, MPEG2 HD, H.264/AVC SD, H.264/AVC HD,H.265/AVC HD |
| Demod standard | DVB-T2(EN300 744) and (EN302 755) |
| Demodulation | QPSK, 16QAM, 64QAM for DVB-T2, 16QAM,32QAM,64QAM,128QAM,256QAM for DVB-Cable |
| FFT Mode | 2K, 4K,8K,16K for DVB-T2 |
| FEC Code Rate | 1/2, 2/3, 3/4, 5/6, 7/8 for DVB-T2 1/2, 3/5, 2/3, 3/4, 4/5, 5/6 for DVB-T2 |
| Guard Interval | 1/2,1/4, 1/8, 1/16, 1/32 for DVB-T2 |
| Band Width | 6MHz ,7MHz,8MHz |
| Active Ant Power | 5V DC -100mA MAX,Overload Protection |
| 3.Video Decode | |
| Video Decode | 4K,H.265,MPEG1/2/4,H.264, HD AVC/VC-1,RM/RMVB,Xvid/DivX3/4/5/6 ,RealVideo8/9/10 |
| Aspect Ratio | Auto, 16:9 Pillar box, 4:3 Pan & Scan, 4:3 Letter Box |
| 4.Audio Decode | |
| Audio Decode | MPEG1 layer I, MPEG1 layer II, MPEG1 layer III, MPEG2 AAC, MPEG4 HE-AAC,EAC-3,Dolbi+ |
| Sound Mode | LEFT/RIGHT/STEREO/MONO |
| 5.Subtitle & Teletext | |
| Subtitle | DVB and IPTV Subtitle |
| Teletext | EBU TELETEXT |
| 6.Menu Function | |
| Channel Search | Automatic search based on LCN or NIT |
| Manual search based on Frequency and channel number | |
| Channel Management | Up to 5000 channels edition,delete,move,lock,rename;8 favorite ch groups |
| EPG | 7 days |
| Language | English/French/German/Spanish/Italian etc. 24 languages |
| Software Update | loader through USB or TF card and OTA |
| Security | Menu lock, Parental lock, PIN lock |
| 7.USB Decode | |
| PVR Option | Play/Stop/Record/Pause/Forward/Back, Scheduled Recording using |
| Profiles | 3.x, 4.0, 5.0, 6.0 Home Theater & HD profiles |
| Video Formats | 4K@60fps, H.265, AVI, H.264, VC-1, MPEG-2, MPEG-4, DIVD/DIVX, Real8/9/10, RM,RMVB, PMP, FLV, MP4, M4V, VOB, WMV, 3GP, MKV |
| Music format | MP1, MP2, MP3, WMA, OGG, AAC, M4A, FLAC, APE, AMR, RA, WAV |
| Photo format | JPEG/BMP/GIF/PNG/TIFF |
| Connector | USB 2.0 supporting external hard disk of 250-2T |
| File system | FAT32/NTFS |
| USB | PVR with USB HDD, Time shifting with USB HDD |
| 8.Environment | |
| Power Supply | DC 5V/2.0A |
| Power Consumption | 8W in operation , <1W auto Standby Green Power Mode |
| Temperature | Operation 0˜+45℃; Storage -10˜+60℃ |
| Humidity | 20˜90%, non-condensed |
MX3-A Airmouse (Without Mic without backlight)
MX3-L Airmouse (With Backlight without Mic)
MX3-M Airmouse(Without backlight With Mic)
