-. Binding : Electronics
-. Brand : TYT
-. Color : Black
-. EAN : 6959011522534
-. Feature : New released by TYT, Dual band, Dual display and Dual standby, you get up to 128*2 Channels to store. Cross-band repeater function is very amazing. / Comes with a High Gain Antenna and a Stubby Antenna. Large capacity of 7.2V 3600mAh. This set is quite suitable for outdoor activities. Ultra high output power UP to 10W to guarantee a farther and stable communication range. / VOX transmitting, TOT, 1750Hz tone, CTCSS/DCS scanning, COMP function, 2 Tone/5 Tone, FM radio function, can store up 25Radio channels, Reverse frequency function. / DTMF encoding and decoding, Channel spacing selectable (25/12.5kHz), Remote Kill/Stun/Activate/Revive, Tri-color background light selectable, Non-standard CTCSS/DCS input. / Programming software: https://s3.amazonaws.com/sanatop/EB/EB0E03SS/TH-UV8000D+Programming+Software.rar
-. Label : RF Gear 2 Go
-. Manufacturer : RF Gear 2 Go
-. Model : TH-UV8000D
-. MPN : TH-UV8000D
-. PackageQuantity : 1
-. PartNumber : TH-UV8000D
-. ProductGroup : Car Audio or Theater
-. ProductTypeName : TWO_WAY_RADIO
-. Publisher : RF Gear 2 Go
-. Studio : RF Gear 2 Go

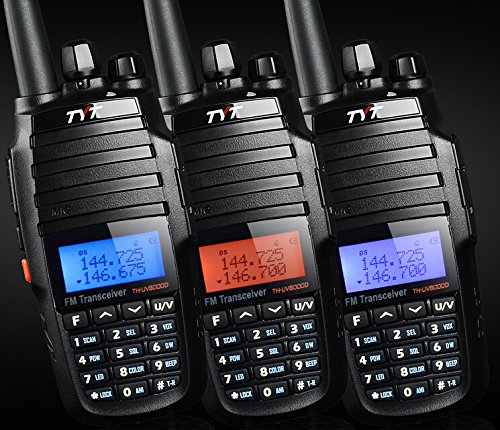

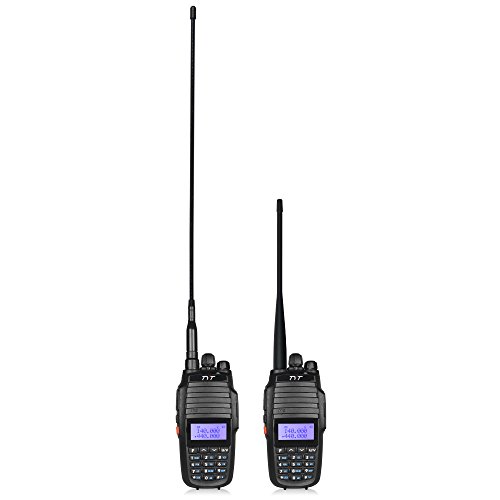

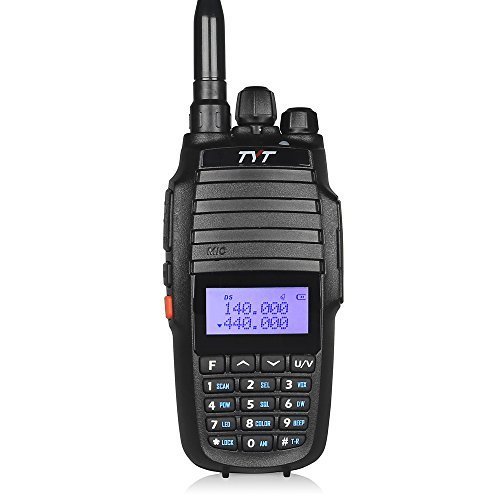

-. Title : TYT TH-UV8000D Upgrade Dual Band Transceiver, Cross-band Repeater Two-way Radio, 10W 136-174/400-520MHz, with 7.2V 3600mAh battery and 2 antennas, Black
Feature
*Dual band, Dual display , Dual standby
*1750Hz tone
*COMP function
*FM radio function, can store up 25 radio channles
*Reverse frequency function
*VOX transmitting
*TOT(Time-out timer)
*CTCSS/DCS scanning
*DTMF encoding and decoding
*Tri-color background light selectable
*Remote Kill/Stun/Activate/Revive
*Cross-band repeater function
*Non-standard CTCSS/DCS input

Specification
General
Frequency range: 136-174MHz/400-520MHz
Frequency stability: ±2.5PPm
Channel No.: 128*2
Antenna impedance: 50Ω
FM receive: 76-108Mhz
Mode of operation: Simplex or semi-Duplex
Dimension(Exclude antenna): 13x6x3.5cm
Weight: 291g
Battery capacity: 3600mAh
Transmitter
Output power: ≤10W
≥5W
Modulation mode: 16K¢F3E/11K¢F3E
Maximun deviation: ＜5KHZ/＜2.5KHZ
Adjacent Ch power: ≤－65dB/≤－60dB
Sprious radiation: ＜7uW
Pre-emphasis
characteristics: 6dB
Current: ≤2.8A(10W) ≤1.8A(5W)
CTCSS/DCS deviation: 0.55KHz±0.15KHz,0.4KHz±0.1KHz
Intermediation sensitivity: 8-12mV
Intermediation distortion: ＜5%
Receiver
RF sensitivity: –122dBm (12dB SINAD)
Audio power: ＞0.5W
Audio distortion: ＜10%
Blocking: *85
Intermediation: *60dB *55dB
Sensitivity: *65dB *60dB
Spurious rejection: *65dB

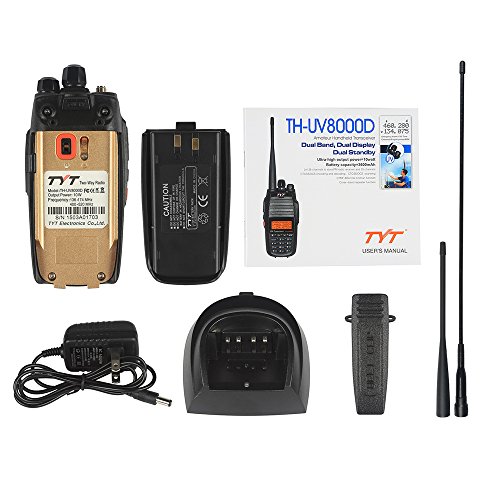

Package
1 x Portable Radio

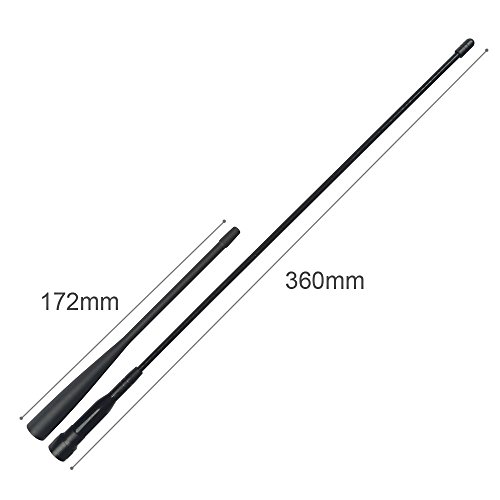

2 x Antennas

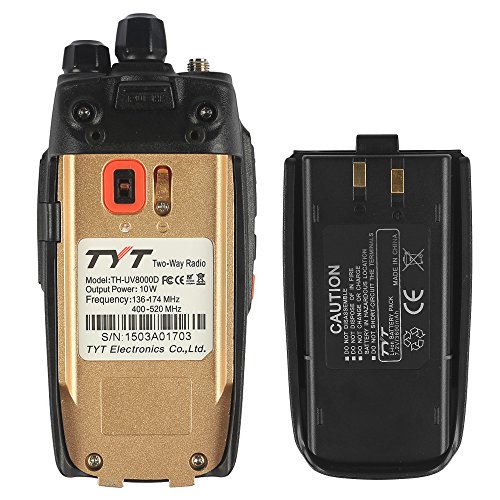

1 x Battery
1 x Charger
1 x Belt clip
1 x Lanyard
1 x Manual
