Item Descriptions:
【DWT】 Digital LCD Weekly Programmable Timer ON OFF Switch Relay DC 12V Weekly 17 Items Registable Yes Rechargeable Battery Built in DIN Rail Attachable Japanese Manual A158
Up to one week ahead, up to 17 cases (ON / OFF 1 case) can be registered, it is a timer that repeats the same operation every week.
The power supply of the timer is 12 VDC.
Manual operation can be performed by manually interrupting during operation, forcing the contacts to be turned on and off.

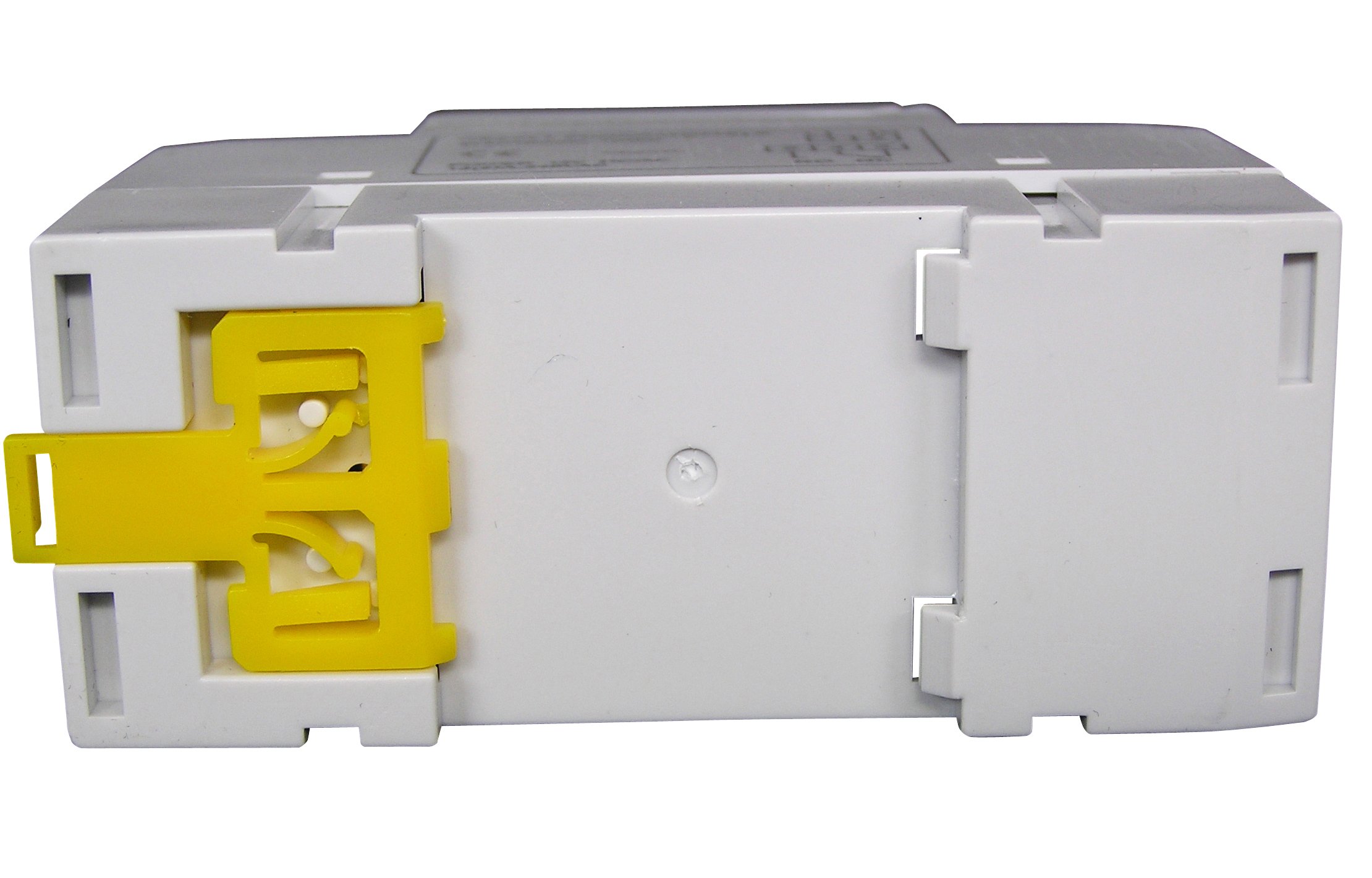

DIN rail installation is possible on the back.
Regarding the specific way of setting, meaning of each button, example of setting etc, please see the Japanese manual.
* Please note that the battery runs out due to overdischarge if you do not put the power supply for a long time.
Please turn on the power for about an hour once a month.
Even if the built-in battery goes down temporarily, the setting is retained unless the 12 VDC power supply is cut off.
Features:
- Power supply voltage: 12 VDC Operating temperature: -10 ° C - + 40 ° C
- Output relay contact capacity (at load resistance): 16 A 250 VAC * Approximate 1/3 when induction load of motor etc.
- Day setting: 15 patterns (daily, Monday - Friday, Monday, Friday, Saturday and Sunday, only every Monday etc)
- Time setting: 1 minute interval between 00: 00 and 23: 59
- Accessories: Japanese manual and English manual
Product information:
Shipping Weight: 185 g
Package Dimensions: 11.91 x 13.11 x 15.49 cm
