Item Descriptions:

Product introduction

● Can be driven with AA batteries ● Built-in high quality sound stereo condenser microphone ● User interface allowing intuitive operation ● Lightweight design that can be carried in the case of an instrument ● Chromatic tuner, built-in metronome ● Two external

Input terminal ● Recording on SD / SDHC card ● High speed data transfer with USB 2.0 ● UNDO / REDO function ● Track editing function ● Equipped with a tripod hole that can be mounted on a camera tripod

From Amazon

High sound quality built-in microphone at any time, multiple recording, easy transfer to DAW.

A sketch pad of music whose choice of recording place is not a necessity of a song writer.

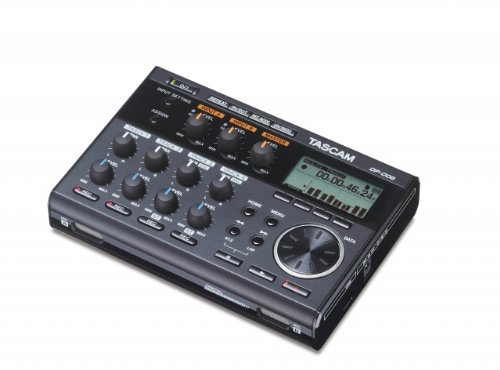

DIGITAL POCKETSTUDIO "DP - 006" is a multitrack recorder that can be battery operated.

Since it is possible to carry, it is ideal as a music sketch pad for songwriter's going out.

Easy operation like cassette MTR is realized, preparation for recording is completed in only 2 steps after turning on the power supply.

High-performance microphone is also built in, so you do not need to prepare an external microphone.

Each track is equipped with a dedicated operating element.

You can operate each track intuitively without relying on screen operation.

SD / SDHC card is adopted as the recording medium, and data transfer with the personal computer via USB is also possible.

By adding "DP - 006" to the production system, the scope of music production will expand to infinity.

Sketchpad of music that you can feel free to pick up ideas will capture the suddenly descending melody line with high sound quality and make the music production more fulfilling.

Start recording casually anytime

■ Battery-drivable multi-track recorder

In music production, multitrack recording that can be recorded and adjusted for each instrument is essential, but many multitrack music production equipment requires AC power, so it can not be taken out and used.

Meanwhile, the idea of ​​a song often comes down when you are not preparing, such as outdoors or outing.

"DP-006" realizes driving with four AA batteries, so you can record a chorus arrangement that came down on your head even in the absence of AC power.

In addition, connecting the optional external battery pack BP - 6 AA makes it possible to further extend the driving time outdoors.

Built-in high-quality stereo condenser microphone that can record without preparations

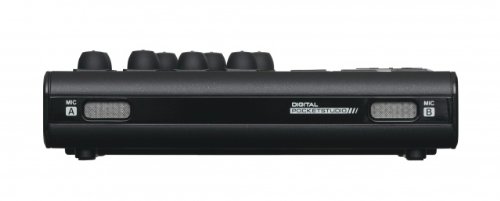

Two omnidirectional condenser microphones are mounted on the front of the main unit.

It is possible to record instruments that require microphones, such as vocals and acoustic guitar at any time.

Tuning was carried out by elaborate listening evaluation of the mounted condenser microphone.

We introduced the expertise of developing a linear PCM recorder with high evaluation in the market, and completed the built-in microphone with high sound quality.

Since it is an omnidirectional microphone, it can be installed more easily than a unidirectional microphone, and it is possible to record high quality sound with simple setting.

It is possible to perform more aggressive my King using the hole for the tripod on the bottom.

Intuitive operation cassette User interface like MTR

We chose to use the sketchpad as a target, and we chose not to use unused features.

As a result, it realizes simplicity like cassette MTR, so it is possible to start recording smoothly anytime, anywhere, when melody comes down.

Each track has its own LEVEL / PAN knob.

Lightweight design that can be carried in a case of an instrument

Even devices that do not require power supply will hesitate to carry all the time unless it is light.

Although it has many exclusive operators for instinctive manipulation, it realizes light weight and compact design of 360/610 g respectively.

You can put it in the guitar case or bag at any time.

■ Chromatic tuner, built-in metronome

Built-in chromatic tuner and metronome to reduce loads when carrying.

Ready for one set.

The metronome pronunciation can be selected only during recording playback or recording, and the tempo can be set in a wide range from 20 to 250.

The volume control of the metronome is also possible.

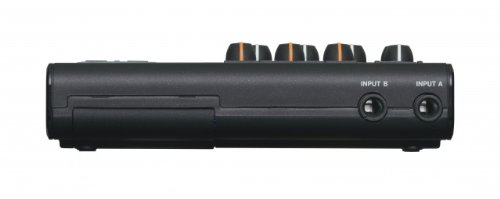

■ Two input terminals to which external microphones and electric acoustic guitar can be connected

In addition to vocals and acoustic guitars, two input jacks by a phone jack are also equipped to accommodate line instruments and electric acoustic guitars.

You can also connect portable devices such as portable music players as instruments.

* Conversion cable to standard phone jack is necessary depending on instruments and equipment.

Auxiliary function to broaden the range of production

■ Recording on SD / SDHC card, High speed data transfer with USB 2.0

SD / SDHC card with high versatility is adopted as a recording medium.

Availability is also outstanding by adopting commonly used media in general.

It can be used according to the environment such as dividing SD card for each song like a cassette MTR, leaving one large capacity card attached.

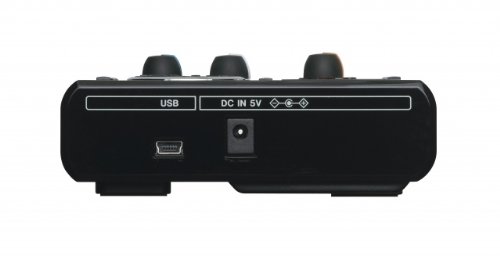

Moreover, it can connect directly with the personal computer via USB 2.0.

It is possible to transfer the recorded idea to the personal computer at high speed even with the SD card attached.

2GB SD card is attached.

■ UNDO / REDO function that allows you to overlap ideas freely

While MTR of destruction editing is abundant, TASCAM 's PORTASTUDIO / POCKETSTUDIO series adopt a nondestructive editing method, so free undo is possible.

If there is a mistake in performance, you can easily return to the previous state, so you can record one after another without concern for mistakes.

In addition, since it has the UNDO HISTORY (UNDO history) function, it is possible to designate and return the previous state several stages.

Without concern for mistakes, we can actively and repeatedly draw ideas.

■ File import / export in WAV format

It supports import (import) and export (export) of WAV format files.

Import karaoke files produced with DAW and record various types of melody.

You can use it for exporting the best take and pasting it on the DAW.

It supports both monaural and stereo format files.

■ Track editing function for simple editing, such as cutting silent parts

Track editing function that can be used for cutting silent parts and duplicating tracks etc. is installed.

The quality of the song is greatly improved with a little editing, such as cutting noise at the beginning of the song.

Track editing function list

· Silence (partial erase) · open (silence insertion)

· Cut (partial deletion) · Clone track (duplication)

· Clean-out (track deletion)

Functions list

· 2 monaural tracks + 2 tracks (monaural / stereo switching), up to 6 tracks

· 2 track simultaneous recording / 6 track simultaneous playback

· Built-in microphone sensitivity is switched to LOW / MID / HIGH 3 steps

· Independent LEVEL / PAN (BALANCE) knob for each track

· 15 mW / ch stereo mini jack headphone output

· 128 x 64 dot matrix LCD

· Up to 9 hours continuous operation with 4 AA batteries (eneloop use, recording)

- Equipped with a tripod hole that can be mounted on a camera tripod

· Recording in 16 bit / 44.1 kHz format

· Stereo master track equipment

· SD / SDHC card (up to 32 GB) is adopted for recording media

· Omnidirectional stereo condenser microphone built-in

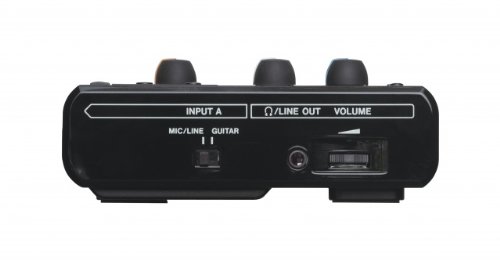

· INPUT A corresponds to direct input of guitar

· AC power operation by optional AC adapter PS-P520

- It can operate for an additional long time by optional external battery pack BP - 6 AA

· Direct locate function by jog wheel

· Repeat playback between IN and OUT points

· Track bounce function to group tracks

· UNDO / REDO (UNDO HISTORY) function

· Chromatic tuner / metronome function

· High-speed file transfer with PC using USB 2.0

· Backing up and restoring songs

· Track WAV file import / export (stereo / monaural)

· WAV export of stereo master file

· 2 GB SD card included

Features:

• Please enter model number Confirm this is compatible:
• DIGITAL POCKETSTUDIO "DP-006" is a multitrack recorder capable of battery-driving with 6 tracks.
• It is lightweight and compact design, so it can be carried anytime, so it is also ideal as a music sketch pad for songwriter to go out.
• Easy operation like a cassette MTR is realized so as not to lower the motivation of the moment you want to record.
• Preparation for recording is completed in just 2 steps after turning on the power including preparation of the microphone.
• Each track is equipped with a dedicated operating element.
• You can operate each track intuitively without relying on screen operation.
• Moreover, because it adopts the input monitor, it is possible to immediately record the melody that came down without feeling the stress that you can not hear the sound when you want to record.
• It can also cooperate with PC, SD / SDHC card is adopted as recording media, direct connection via USB 2.0 is also possible.
• You can also use it for importing karaoke files, exporting the recorded files and returning to the DAW.

Product information:

Shipping Weight: 698 g

Package Dimensions: 7.39 x 15.01 x 23.01 cm
