Item Descriptions:

Infrared

Since LED infrared employs an invisible type that does not shine red, it does not notice the shooting target.

You can shoot and record even in dark places.

high resolution

The still image is 12 million pixels, the recording is 1080P @ 30 fps, realizing shooting with overwhelming high image quality / high resolution.

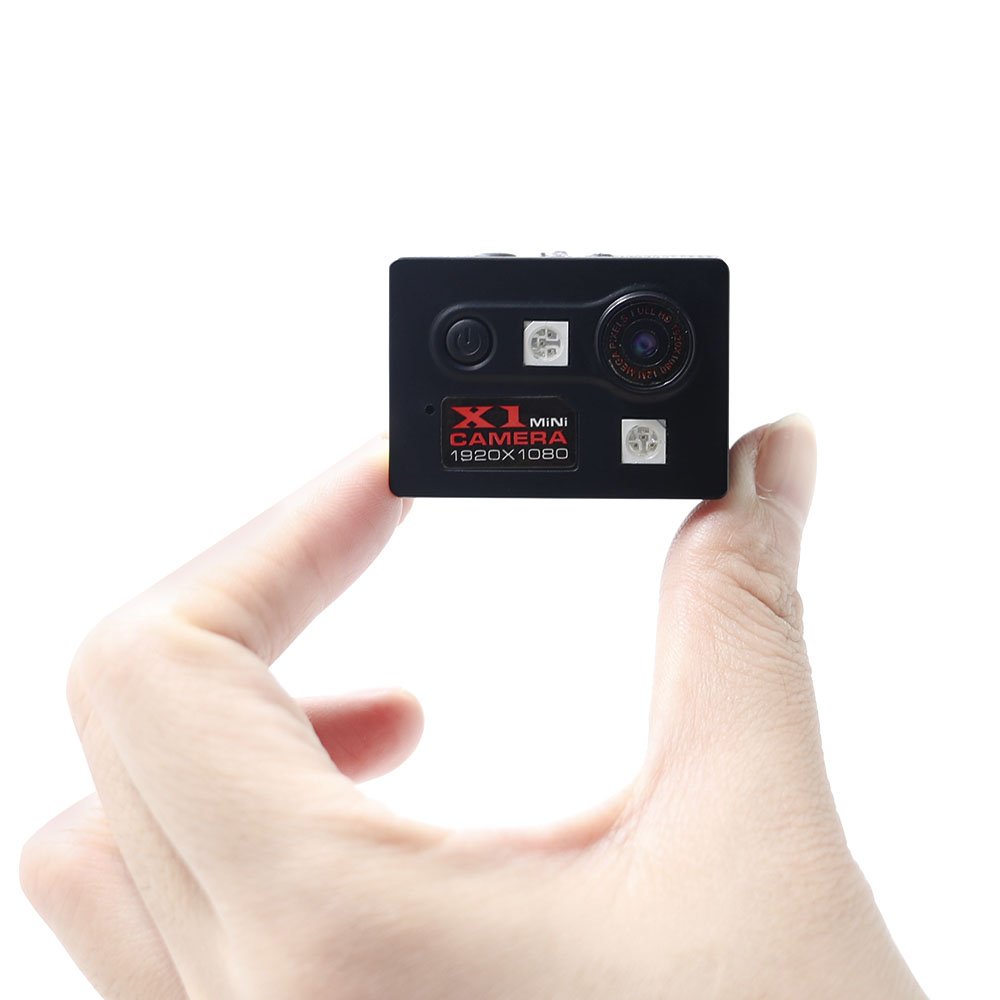

Compact utility

For exercise: It is compact and lightweight design, comes with a dedicated clip and stand attached, clip can be attached to clothes and hat, etc sandwiched, easy to install in various places.

You can shoot by being attached to a bicycle or a helmet.

For crime prevention: Since it is small, it is inconspicuous and does not get in the way, so it is easy to secure the installation place.

It is definitely applicable to collection of evidence, daily crime prevention and monitoring.

Recording while charging

With a convenient external power supply function, you can record for a long time while charging it while connecting to a mobile battery or charger.

It is definitely applicable to collection of evidence, daily crime prevention and monitoring.

Cards can be formatted

This product can format (initialize) Micro SD / TF card.

Even without a PC, it is convenient to format the card comfortably.

Repeated recording

Always overwrite old data and leave only new data Corresponding to continuous recording with repeat recording function!

Time can be set

Easy setting of shooting date and time of movies and photos!

It can also be hidden.

Small, high quality picture hidden television camera special features

· 1, sharp images can be taken in detail!

High-definition FullHD image quality realized!

· 2, neck strap convenient for carrying around comes with!

You can take a break when you want to take a picture!

· 3, photo shooting also supports high image quality!

Image quality of 12 million pixel preservation!

· 4, clip type, stand type comes with two convenient mounts Increase your enjoyment!

Product specification

Product size: 3.78 x 2.68 x 1.92 cm

Weight: Approx 20 g

Movie resolution: 1920 x 1080 P

Movie format: AVI MJPG

Still image compression format: JPG

Operating voltage: DC-5V

Number of frames: ~ 30 FPS

Interface type: Mini 5Pin USB

Supported OS: Windows me / 2000 / xp / 2003 / vista; Mac OS; Linux

Media player: Operating system included, or mainstream audio / video media player

Memory: Not built in

(Micro SD card / TF card)

Micro SD card / TF card supports 8 GB to 128 GB

Working temperature: 0 - 60 ° C

Battery: lithium polymer rechargeable battery 500 mAh

Charging time: about 3-4 hours

Waterproof: Non-waterproof

Producing countries: China

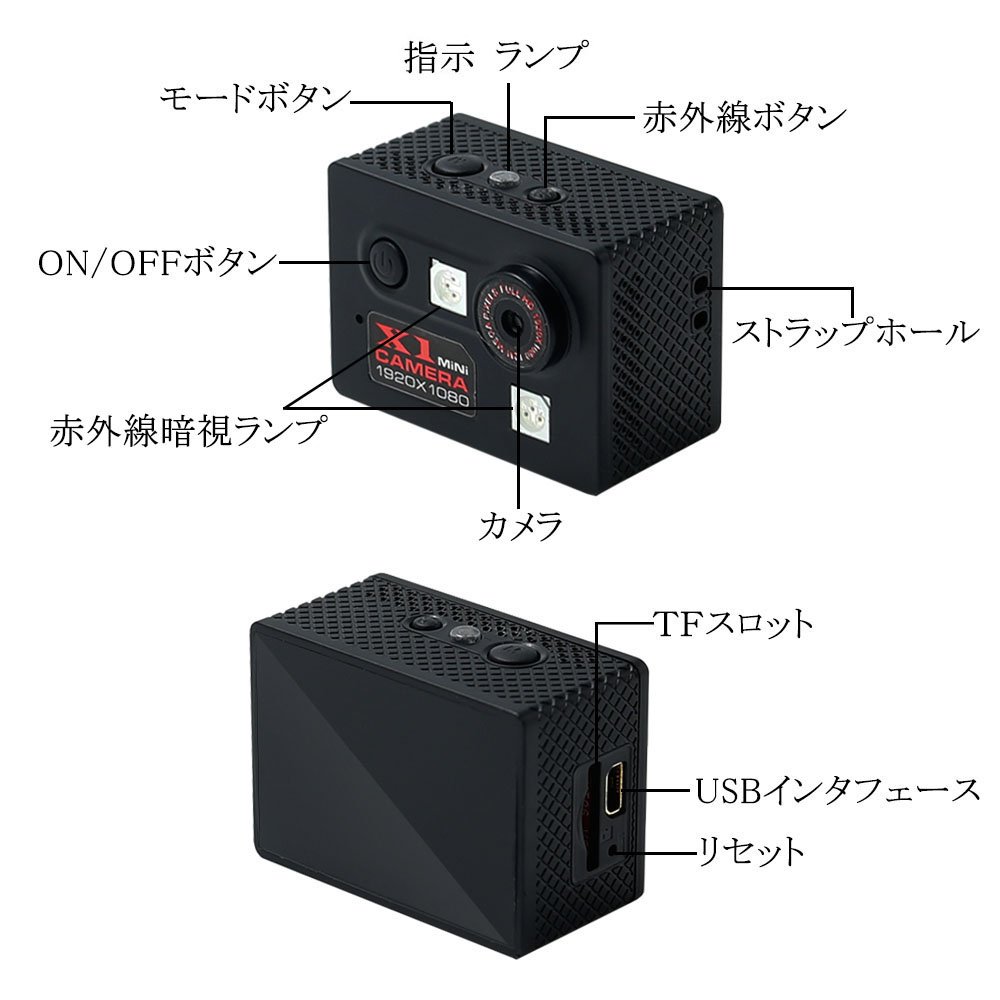

①,

on

ON / OFF

When you push the button for 1 second, the blue lamp lights steadily and enters standby mode.

②,

Still image shooting:

When you press the MODE button briefly from standby mode, the red lamp flashes once, the picture is taken and saved.

③, movie shooting:

From standby mode,

ON / OFF

When you push the button briefly, the blue lamp flashes 3 times and the standby mode for movie shooting is started.

Once again press the ON / OFF button once again, the blue lamp will light continuously and return to the standby mode.

④,

Shooting while charging:

When connected to the bail battery (5 V), it will be recorded automatically.

Movie shooting

From standby mode,

When connected to a PC, it is shot while charging.

⑤, infrared ray:

When you press the infrared button from standby mode, the blue lamp lights, the red lamp flashes twice, and the infrared mode is entered.

When you press the infrared button from the movie shooting mode, the red lamp flashes twice and the infrared mode is entered.

off:

If you press the ON / OFF button for 3 seconds from standby mode, the lamp goes out and then shuts down.

⑥,

reset:

If the product can not react, please stab a reset hole with a sharp object.

Please create a new file with the name "TIMESET" and open it.

20170916074813 Y (There is time watermark display)

20170916074813 N (time watermark is not displayed)

Set the time format according to the method of, divide by year, month, day with hour, hour, minute, second by space.

Then save it.

Saving it safely after saving the file.

Restart, time setting is completed.

set content:

1. Product Body

2. Cable

3. Japanese manual

Four.

Standard

5. Strap

please note

This product is HD 1080P, it is a normal phenomenon when consumed current is large and it gets in a state of heat generation during use and charging.

【1 year warranty】 The ZTCOO manufacturer's warranty is attached to this product.

We will exchange new products only for natural breakdown within 1 year from purchase.

Features:

• Please enter model number Confirm this is compatible:
• [Function]: Real time recording, still image shooting, external power supply function, external camera function, simultaneous recording of charging, date function, card formatting function
• [For sports]: It is compact and lightweight design, standard, with clip attached, it is attached to a bicycle or helmet and it is possible to shoot.
• There are many merits such as high-quality shooting in a wide range.
• [Simultaneous recording of charging]: It is possible to record for a long time while charging it while connecting to a charger (5 V equipment).
• 【Infrared】: With infrared shooting function, you can shoot with infrared light which can not be seen in the eyes of the place of darkness, of course during the day, crime prevention optimum!
• [Set contents]: Product body, cable, Japanese manual, clip, standard.
• 【1 year warranty】 The ZTCOO manufacturer's warranty is attached to this product.
• We will exchange new products only for natural breakdown within 1 year from purchase.

Product information:

Shipping Weight: 140 g

Package Dimensions: 3.20 x 8.61 x 11.40 cm
