Product Description

What This Product Does

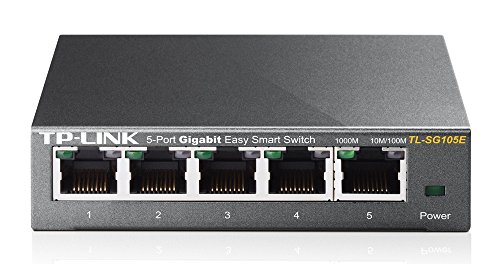

TP-LINK’s TL-SG105 provides an easy way to expand your wired network. All 5 ports support Auto-MDI/MDIX, eliminating the need to worry about what type of cable to use. Featuring full duplex mode, the device can process data at a rate of up to 2000Mbps, making it an ideal choice for expanding your high performance wired network. Moreover, with innovative energy-efficient technology, the TL-SG105 can save energy up to 65%.

Key Features

Gigabit Switch

Featured with 5 10/100/1000Mbps ports, the TL-SG105 enables ultra-fast wired connectivity, enabling instant large files transferring.

Steel Housing

The TL-SG105 is housed in a compact steel case for longer life span. With the desktop or wall-mounting design, you can place the device wherever it’s convenient.

Easy to Use

TThe auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network.

Go Green with Your Ethernet

The TL-SG105 features the latest innovative energy-efficient technologies that can save power up to 65%. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Specifications

Support IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
Support QoS (IEEE 802.1p)
Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
10Gbps Switching Capacity, 2K MAC address table, 9KB Jumbo Frame, 1MB Buffer Memory
Auto-MDI/MDIX eliminates the need for crossover cables
Support MAC address auto-learning and auto-aging
Auto-negotiation ports allow smart integration between 10Mbps, 100Mbps, and 1000Mbps devices
Fanless desgin to keep a quiet environment
Support 100-240V power supply

What's in the Box

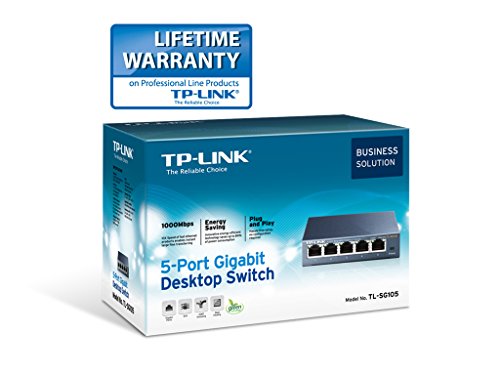

5-Port Gigabit Switch
Power Adapter
User Guide

TP-LINK Unmanaged Switches Series

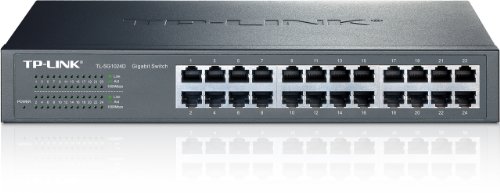

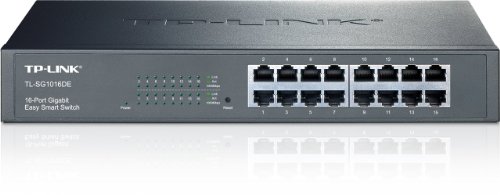

Which Unmanaged Switch is Right for Me?	TL-SG1005D	TL-SG1008D	TL-SG105	TL-SG108	TL-SG1016D	TL-SG1024D	TL-SG1016	TL-SG1024

Product Name	5-Port Gigabit Desktop Switch	8-Port Gigabit Desktop Switch	5-Port Gigabit Desktop Switch	8-Port Gigabit Desktop Switch	16-Port Gigabit Desktop/Rackmount Switch	24-Port Gigabit Desktop/Rackmount Switch	16-Port Gigabit Rackmount Switch	24-Port Gigabit Rackmount Switch
Case Material	Plastic	Plastic	Steel	Steel	Steel	Steel	Steel	Steel
Port Number	5	8	5	8	16	24	16	24
Size	Desktop	Desktop	Desktop	Desktop	13-inch	13-inch	19-inch	19-inch
QoS	-	-	✓	✓	-	-	-	-
IGMP Snooping	-	-	✓	-	-	-	-	-
AUTO MDI/MDIX	✓	✓	✓	✓	✓	✓	✓	✓
IEEE 802.3X Flow Control	✓	✓	✓	✓	✓	✓	✓	✓
Power Saving	✓	✓	✓	✓	✓	✓	✓	✓
Plug and Play	✓	✓	✓	✓	✓	✓	✓	✓

Feature

Five gigabit auto-negotiation RJ45 ports greatly expand network capacity
Supports Auto-MDI/MDIX, eliminating the need for crossover cables
Steel housing can be wall-mounted or rest on desktop
IEEE 802.3x flow control provides reliable data transfer
Reduces energy use up to 65% and adjusts power based on link status and cable length
Supports QoS (IEEE 802.1p) and IGMP snooping function
Plug and play, no configuration needed
TP-LINK Live 24/7 technical support for assistance with setup and configuration
Brand : TP-LINK
Item model num : TL-SG105
MPN(PartNumber) : 2610605
EAN : 5055851134713
