Product Description
Use for 1-1/8" Head Tube and 1-1/8" to 1.5" Tapered Fork
Headtube ID.: 44mm
Crown Race: 39.8mm

Stack Height: 20.2 ± 1mm
Size: Fits 1-1/8" Head Tube and 1-1/8" to 1.5" Tapered Fork

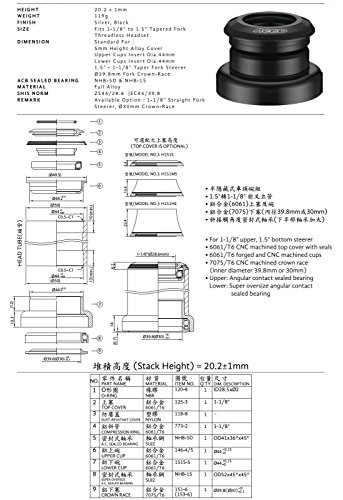

Dimension:
Standard For : 5mm Height Alloy Cover
Upper Cups Insert Dia.44mm
Lower Cups Insert Dia.44mm
1.5" - 1-1/8" Tapered Fork Steerer
Ø39.8mm Fork Crown-Race
ACB SEALED BEARING : NHB-5D NHB-15
Material: Full Annoy
Top Cover Height: 5mm (15mm alloy top cover is optional, please be free to let us know if preferred the 15mm top cover)
Crown Race: 39.8mm (30mm crown race is optional,please be free to let us know if preferred the 30mm crown race)
SHIS NORM: ZS44/28.6 |EC44/39.8
