Product Description

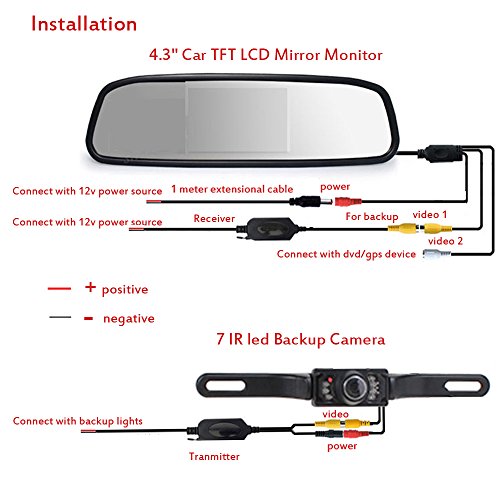

Buy only from podofo shop to get the authentic branded product. Attention 1. Installation: Please refer to the third and fourth pics to install the back up system. Please remember to connect the V1 (Yellow) so that the rearview function will work fine.
2.If the monitor flashes even not in reverse after you install it, please try to connect the monitor to the reverse light positive wire or connect it to the reverse gear.
3．This system is compatible with all kinds of vehicle with 12V working valtage.

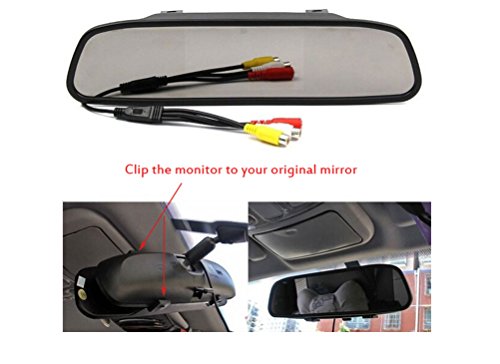

4. The monitor should be clipped to the original mirror.
Specifications and Features: Camera: 2.4GHz Wireless Camera: Stable signal for display
Resolution: 480 TV line
8 Infrared ray led
Image sensor: PC1030
Lens angle:3.6mm(92deg)/2.8mm(120deg)
Power supply: DC 12V
S/N Radio: better than 48db
Video output: RCA connector, 1.0vp-p,75ohm
Waterproof grade: IP68
Effective Pixels:628x586pixles/PAL, 510X496pixels/NTSC
4.3" LCD TFT Mirror Screen: Show foot size: 4.3 inches. Best for the safe use of Rear view;
Displays: TFT-LCD. high-definition screen, make the image clearer, more vivid colors;
Resolution: 480 (H) × 272 (V);
Power: ≤ 2W. Ultra-low power consumption, to prevent over heat.

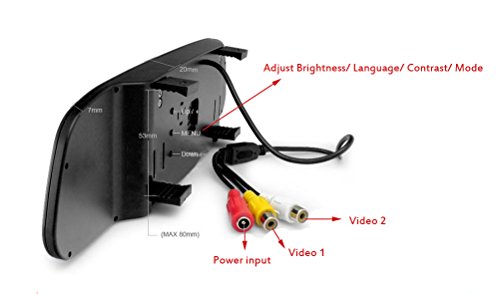

Video Input:
AV1/AV2 video input
AV2 VCD / DVD video output signal (system default),
AV1 connect reversing camera (reversing automatically switch to);
Signal format: PAL / NTSC / AUTO. Compatible with all signal formats.
Contrast: 300:1. A clear contrast
Working Voltage: DC 12V.
Package include: 1 x 4.3 inch TFT LCD Mirror Monitor
1 x Wireless Camera
1 x Power cable
1 x Transmitter
1 x Receiver
User Manual (NO car charger)
Feature
Buy only from podofo shop to get the authentic branded product. 2.4GHz Wireless Backup Camera, Receiver, Transmitter and 4.3" TFT LCD Rearview Mirror Monitor make up the complete wireless backing monitoring system. The mirror monitor can also used to watch dvd/ vcd/ tv/ gps.
4.3" TFT LCD backup camera display rear view mirror. It is the safer size and show the more realistic effect behind the car, therefore it assures a convenient, smooth and safer parking experience. Note: this monitor is not bright like normal mirror due to it was added anti-glare technology on the screen.

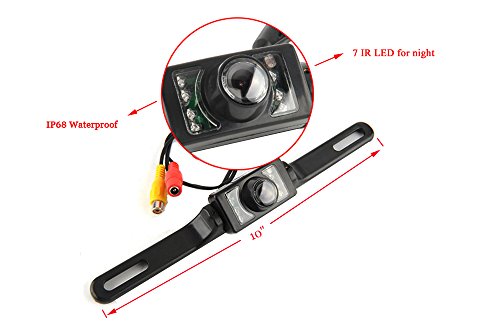

The waterproof (IP8 grade) rearview camera includes 7 IR led for night vision, PC1030 color image sensor that can marks backup referenced lines according to the distance, wide angel lens. All these make it durable to use and apply to work in rainy day and at night.
When reverse gear is on, the system automatically starts to search for the camera signal and switches from DVD/VCD video mode to backup camera video. When parking is finished, it will switch off automatically.
Support PAL / NTSC. Applicable to variety of vehicles: car, mini-truck, mini-van etc vehicle length (12V working Voltage); perfectly solve the issue of bad car rear view effect ,can help reduce accidents. Please buy extra cable if the length of the package is not enough for you.
Brand : podofo
EAN : 0520178469480
