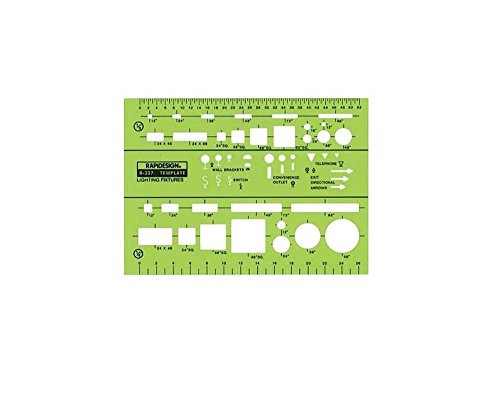

RAPID DESIGN R-327 LIGHTING FIXTURES DRAWING STENCIL TEMPLATE

FEATURES

  • Contains basic lighting fixture symbols in 1/8" and " scales
  • Used in the construction industry
  • Size: 7 3/16" X 5 "
  • Thickness: .030"

SPECIFICATION

Model No.R327
Package Dimension12.45 x 0.51 x 24.13 Cm
Package Weight0.01 ~ 0.01 Kg
Product GroupOffice Product
AvailabilityAvailable (Usually ships in 1-4 business days)

DESCRIPTION

Contains basic lighting fixtures used in the construction industry. Scales: 1/8" and 1/4" = 1 ft. Size: 5 1/4" x 7 1/4" x .030".
