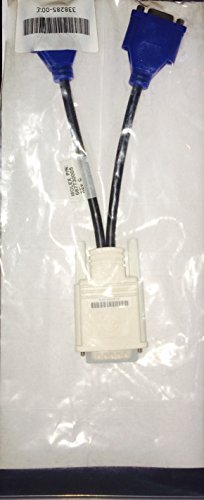

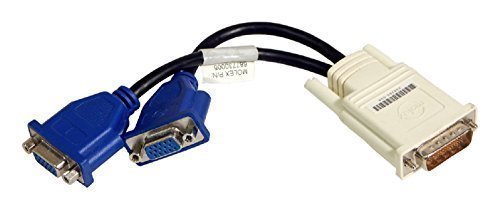

DMS-59 to VGA Video Signal Splitter For Computer Dual Monitor Setups or as a VGA Adapter Y Cable Cord
Product Description

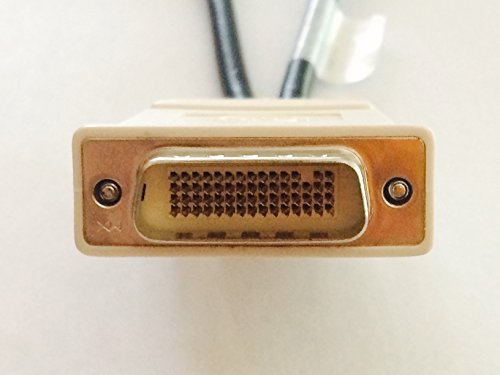

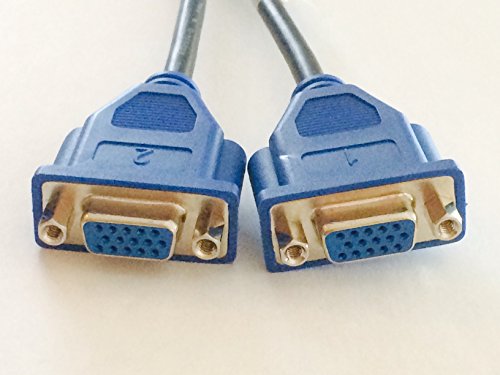

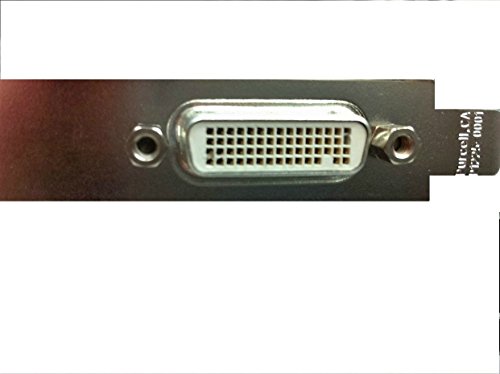

DMS-59 Splitter Cable adapter allows you to connect two VGA enabled display monitors to a Dell HP or other video graphic card with a single LFH59 / LFH60 (DMS59 or DMS60) DVI connector. DMS-59 kit supports a higher density of video displays， in a similar amount of connector space to a standard DVI connector. DMS-59 supports two DVI Dual Link digital channels or two VGA analog channels from a single connector. Connector A: 1 x DMS-59 Male Connector B: 2 x 15-pin HD-15 Female. Compatible with nVidia， Matrox， HP， DELL， PNY and ATI DMS-59 Video Cards; Dell; HP. Based on the 60-circuit LFH， the DMS-59 uses a voided pin (circuit #58) as the keying mechanism. This connector system consists of a 59-circuit receptacle， plug and eight cable assembly configurations. The cable assemblies offer DMS-59 to any combination of VGA， DVI-D， DVI-I and S-Video. The DMS-59 meets VESA requirements for impedance， cross-talk and skew. A Video Graphics Array (VGA) Y-splitter cable enables simultaneous display of the same image from a TV screen to another monitor， from a laptop to a PC monitor， or from one PC to two separate monitors within a short distance. In the latter cases， however， you may need a better video card to support a higher resolution. Its personal benefits are to effectively create two video screens for home-viewing pleasure and to create wider， dual screens while working in the home office. Commercial purposes include setting up training modules and displays during trade shows. Turn off the power of both your TV and the other monitor. Make sure both sets are unplugged from their outlets for safety reasons Attach one end of the Y-splitter cable to the back of your TV screen. Use the main or single end of the cable， which is color-coded to match the port at the back of the TV screen Attach the other end of the Y-splitter cable to the back of the second monitor. Use one of the two remaining free ends， which are also color-coded to match the port on your second monitor.Feature
FOR DUAL MONITOR SETUPS (DMS): Provides two VGA outputs from a single DMS-59 (LFH59) DVI connector
