Model No.	AR4X-130	AR4X-200
Image sensor	1/2.8" CMOS
Horizontal resolution	HD 960P (1.3Megapixels)	Full HD 1080P (2.0 Megapixels)
Optical focus	4X Motorized Auto Focus Zoom
Focus length	2.8-12mm Varifocal Lens
Minimum illumination	0.01Lux @(F1.6,AGC ON) ,0 Lux with IR
IR distance	50
Video compression	H.264
Signal model	50HZ:25fps(1920 X 1080) 60HZ:30fps(1920 X 1080)
Day and Night	ICR
Electronic shutter	1/25s ~ 1/100000s
DNR	2D/3D-DNR
Horizontal range	0°~260°
Vertical range	-5°~60°
Horizontal speed	0.5°~12°/ s
Vertical speed	0.5°~12°/ s
Presets	255
Cruise track	8 groups, each group for 16 presets
Patrol track	4 groups, each group record 3 mins
Protocol	PELCO-D/PELCO-P
protection level	IP66
Bracket	Wall mounted
dimension	240mm×95mm×190mm (L×W×H)
Weight	920g
Power	DC12V/2A (Not include)
Work temperature	-30 C ~60 C

Analog Mini PTZ Bullet Camera

I. Cable Definition

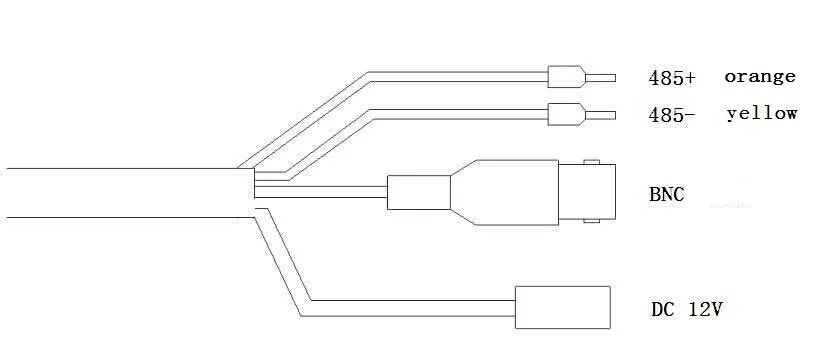

Signal, power supply cable connection, please reference following chart:

II. Address, Protocol, Baud Rate Setting

Decoder of PTZ will automatically match protocol,no need to set; support PELCO-D,PELCO-P.Factory default PTZ address is code 1 and baud rate is 2400. If you want to modify them, follow the following steps:

First method(for models with NO OSD menu):

Call No.101—No.199 to set the address is 1—99.Call No.201—No.204 to set the baud rate is 1200,2400,4800,9600.If you forget the adress,you can use the Universal address code 255 to control the PTZ,and then you can call the corresponding preset to set the address and baud rate what you want. Please restart the camera after you modified.

Second method(for models with OSD menu):

Except for method 1,Please call No.95 preset to enter Main Menu, system setup and Com setup, after that, you can modify them. Please restart the camera after you modified.

Main menu

1.system information

2.system setup

3.function setup

4.display setup

5.camera menu setup

6.factory default

7.exit

system setup

1.motion flip:off/on

2.speed matching:off/on

3.motion speed: 02

4.time setup:

5.IR setup:

6.communication setup;

7.language:EN

8. Return

Com Setup

1.Baudrate: 2400

2.Com Addr: 01

3.Return

IV.PTZ camera instruction list

Function	Mode Of Operation
Address Setting	Call 101—199,the address is 1—99
Baud Rate Setting	Call 201,202,203,204,the baud rate is 1200,2400,4800,9600
Universal address	Address code 255
The first cruise line(1-16 presets)	call71
The second cruise line(17-32 presets)	call72
The third cruise line(33-48 presets)	call73
The fourth cruise line(240-255 presets)	call74
A cruise preset for 4 seconds	call75
A cruise preset for 8 seconds	call76
A cruise preset for 10 seconds	call77
A cruise preset for 15 seconds	call78
A cruise preset for 20 seconds	call79
Set the left limit point A	call91
Set the right limit point B	call92
To enable A, B two points scans	call93
To clear A, B two points scans	call94
Horizontal scan	call99
Scanning speed	Call 65, 66, 67, 68, 69 preset position, the corresponding rate is 3, 6 degrees per second, 9, 15 degrees and 40 degrees
Idle task setting	Call 61:Preset level 1
	Call 63:A/B scans
	Call 64: Horizontal scan
clear all of the presets	call60
Open the camera menu	Call70
Open the dome menu	call95
Restore the factory	call96
