Product Description
Features:

-be used with the Chitu V3.9 3D Printer Controller Motherboard or other things
- not need to buy the Chitu Motherboard if want to use this module
-Using high-speed optical coupling 6N137, ensure high-speed without losing step
-Adopt TB6600 new original chip, with over-current protection circuit
-Suit for 42/57 stepper two-phase/four-phase/four-wire/six-wire within 3A stepper motor
-Low noise design
-Mini size light weight
-Professional troubleshooting and protection measures
-contact us if you have any question or need more infomation about the module

Specification

-Operating Voltage: DC 8V-32V
-high-speed optical coupling 6N137
-Rated maximum output: ¡A 3A
-Segmentation: full step, half step, 1/4-step, step 1/8, 1/16-step, 1/32-step, 1 / 64,1 / 128 steps, up to 128 segments.
-Size: 48mm* 100mm (120mm with terminal inserted) * 24mm (W*L*H)
-Fixing Centres: 84.6mm*42mm
-Installation hole diameter: 3.5mm

One Set Included

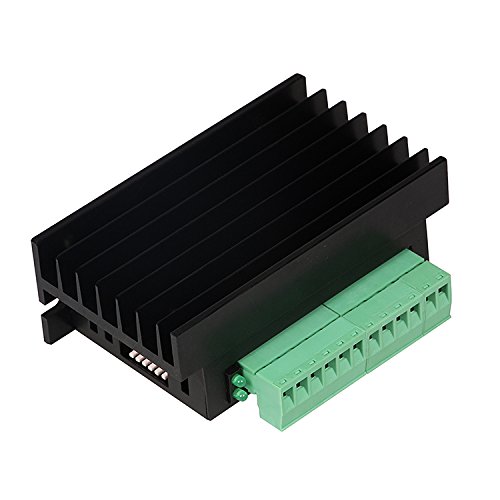

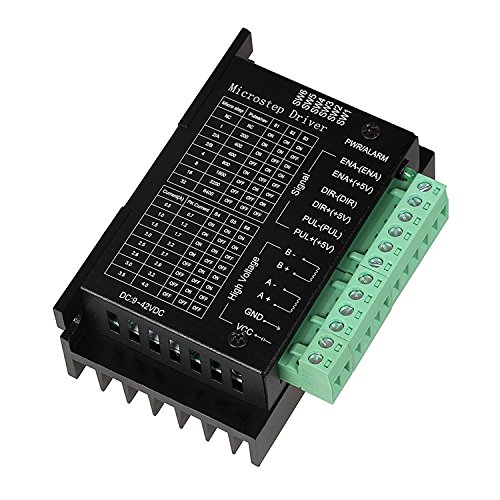

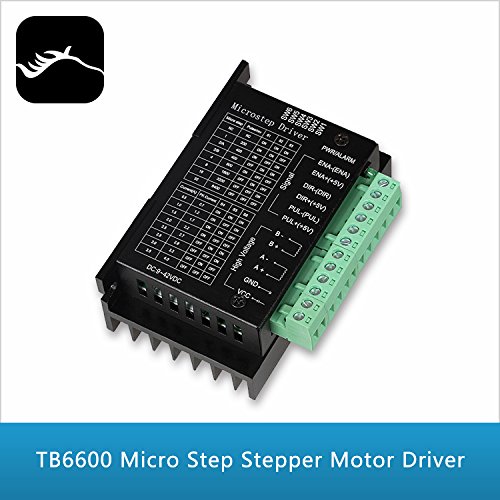

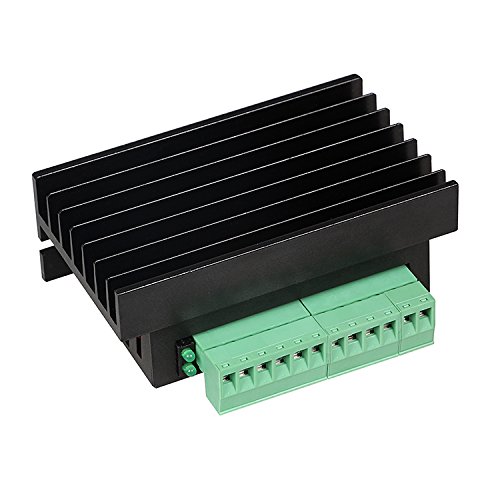

-1 x TB6600 Drive Module
-Standard Factory Package
