DEUTSCH DTM BLACK 2-PIN CONNECTOR KIT WITH 20 GAUGE SOLID CONTACTS

FEATURES

  • Operating at temperatures from -55° C to +125° C continuous at rated current
  • Connectors show no damage when exposed to most fluids used in industrial applications
  • Insulation Resistance of 1000 megohms minimum at 25° C
  • Current leakage less than 2 milliamps at 1500 VAC
  • No cracking, chipping or leaking after 20 test cycles from -55° C to +125° C

SPECIFICATION

Model No.DTM2B-WNS-20-KIT
Package Dimension12.70 x 2.03 x 17.53 Cm
Package Weight0.02 ~ 0.03 Kg
Product GroupAutomotive Parts and Accessories
AvailabilityAvailable (Usually ships in 1-4 business days)

DESCRIPTION

DEUTSCH DTM Series connectors are the answer to all of your smaller wire gauge applications. Building on the DT design strengths, the DTM connector line was developed to fill the need for lower amperage, multi- pin, inexpensive connectors.

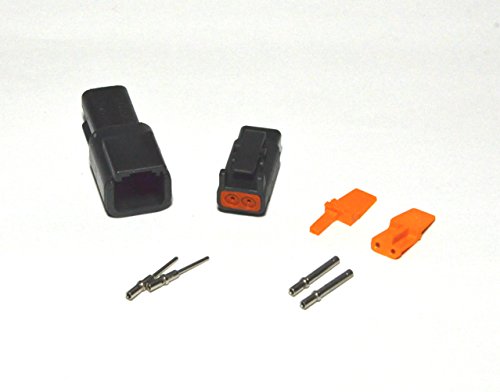

Kit Content:
* 1 x DTM04-2P-E004
* 1 x DTM06-2S-E004
* 1 x WM-2P
* 1 x WM-2S
* 2 x 0460-202-20141
* 2 x 0462-201-20141
