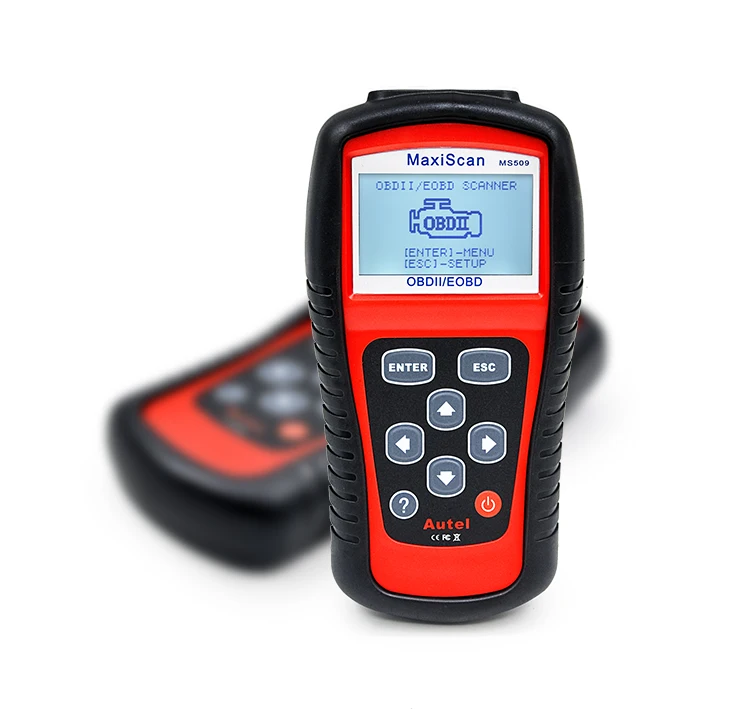

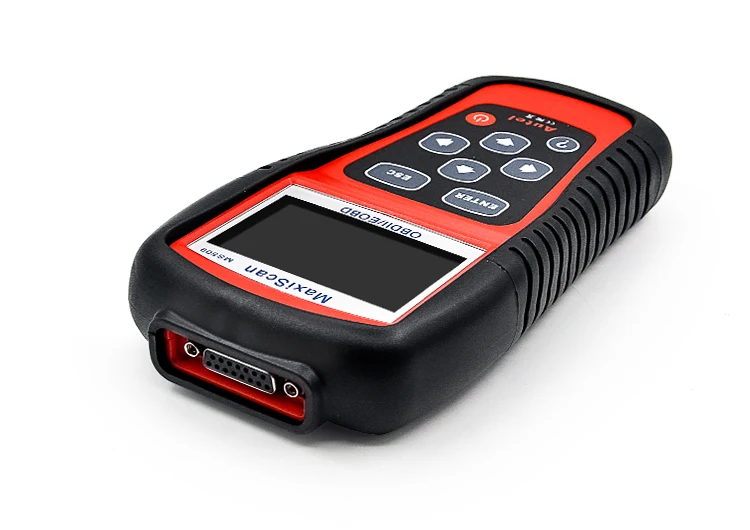

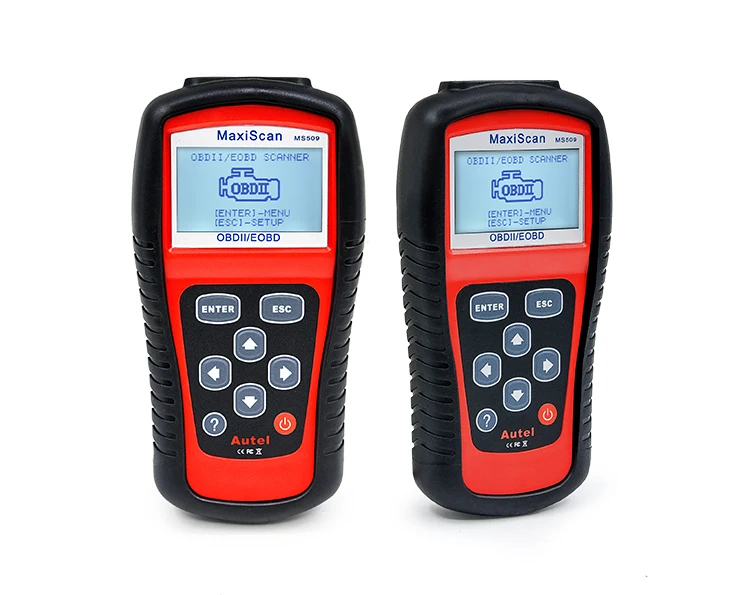

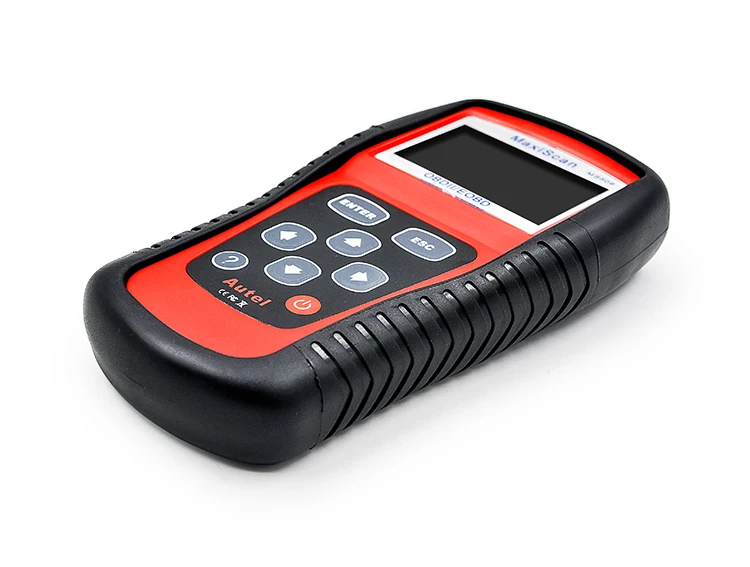

The MS509 OBDII / EOBD Scanner supports all nine OBDII test modes on all OBDII compliant vehicles to EOBD,Enable technicians and home users to accurately diagnose even the toughest problems. Sophisticated, yet easy to use,

This hand-checking tool allows easy and quick access to engine based EOBD fault codes, the can-enabled tool It gives clear, concise

DTC definitions on its large back-lit LCD screen retrieves generic P0, P2 and P3 and U0 codes for engine emissions and also picks up manufacturer specific P1, P3 and U1 codes, turn off the MIL light, Stores freeze frame data for later evaluation and will also display monitor and I / M readiness status.

Features and product functions:

It works on most OBDII compliant US, European and Asian cars

Easily determines the cause of the Check Engine Light (MIL)

Retrieves generic (P0, P2, P3, and U0) and manufacturer specific (P1, P3, and U1) codes

Turns off Check Engine Light (MIL), clears codes and resets monitors

Displays DTC definitions on unit screen

Views freeze frame data

Displays monitor and I / M readiness status (emissions)

Identifies pending codes

Reads live PCM data stream

Displays live O2 sensor test data

Data graphs C (1996 and newer)

Reads, stores and playbacks live sensor data

Backup memory / battery for data review and analysis outside the vehicle

Menu multilingual --- English, Spanish, French, German

Performs modules present test

Retrieves vehicle information (VIN, CIN and CVN)

Supports CAN (Controller Area Network) and all other current protocols

OBD-II protocols

Built-in OBD-II DTC Library

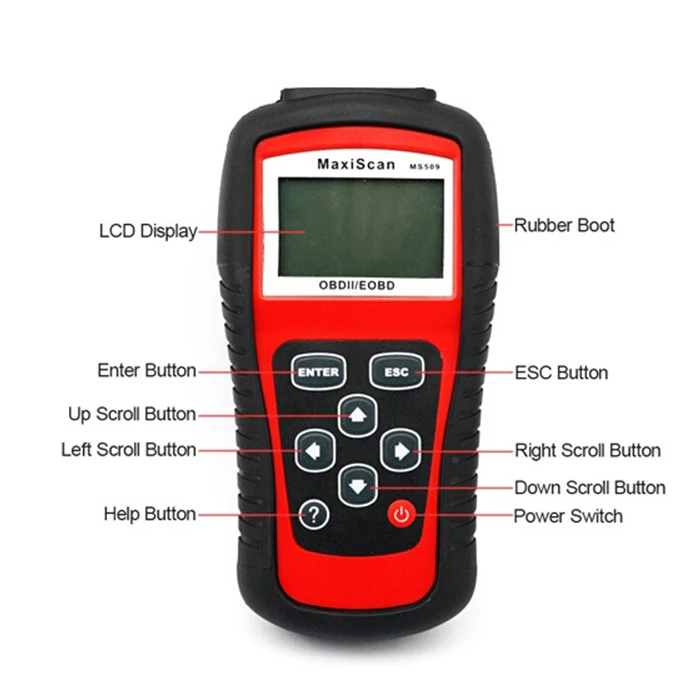

Large easy to read backlit LCD screen

Software upgradeable via email

Prints data via PC

It works with the following:

OBDII / EOBD (US, Asian and European) Reads and clears generic and some maunfactures codes.

supported protocols

ISO 15765-4 CAN (29 bit ID, 250 Kbaud)

ISO 15765-4 CAN (11 bit ID, 250 Kbaud)

ISO 15765-4 CAN (29 bit ID, 500 Kbaud)

ISO 15765-4 CAN (11 bit ID, 500 Kbaud)

ISO 14230-4 KWP 2000 (fast init, 10.4 Kbaud)

ISO 14230-4 KWP 2000 (init 5 transmission, 10.4 Kbaud)

ISO 9141-2 (5 boot transmission, 10.4 Kbaud)

SAE J1850 VPW (10.4 Kbaud)

SAE J1850 PWM (41.6 kbaud)

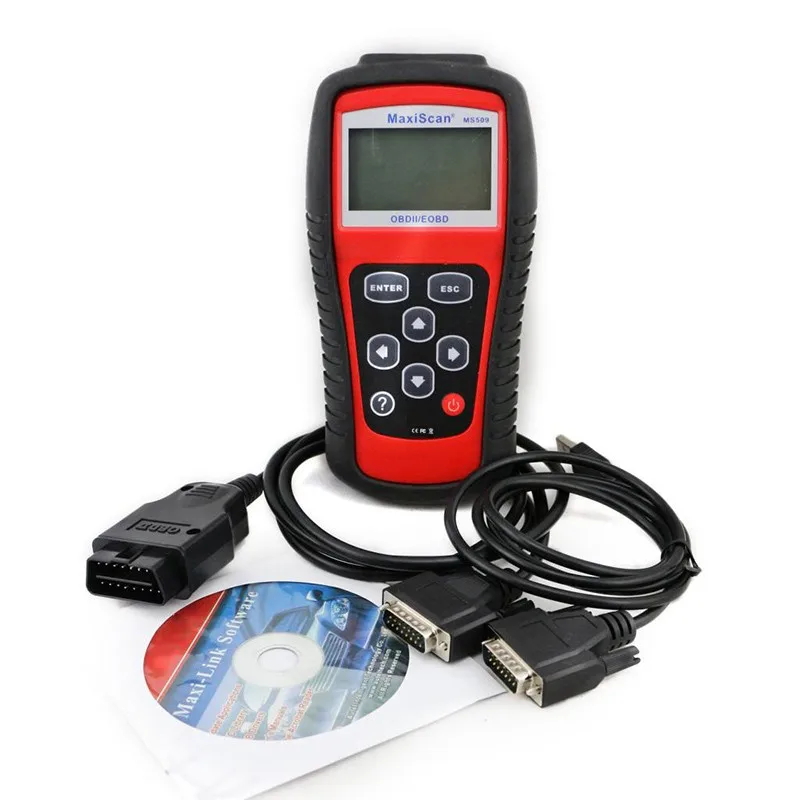

Included in this package:

* 1 MS509 Code Reader

1 * manual book

1 * CD with DTC definitions, user manual

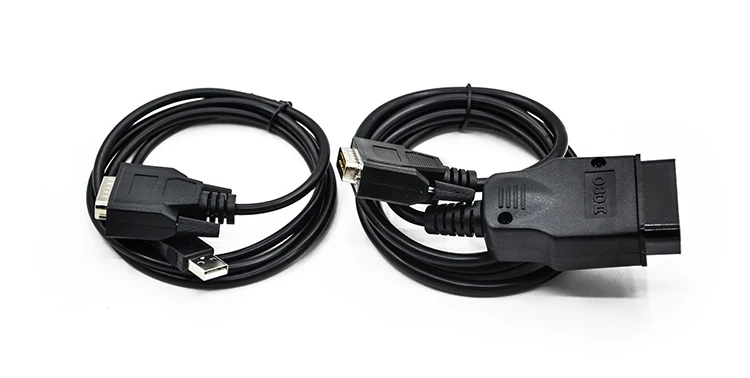

1 * USB computer connection cable

1 * OBD2 lead
