Item Descriptions:

color:

titanium

| Style:

Standard type

Product introduction

In-ear type earphone equipped with a newly developed 8.5 mm driver, realizing high sound quality design exceeding size feeling.

From Amazon

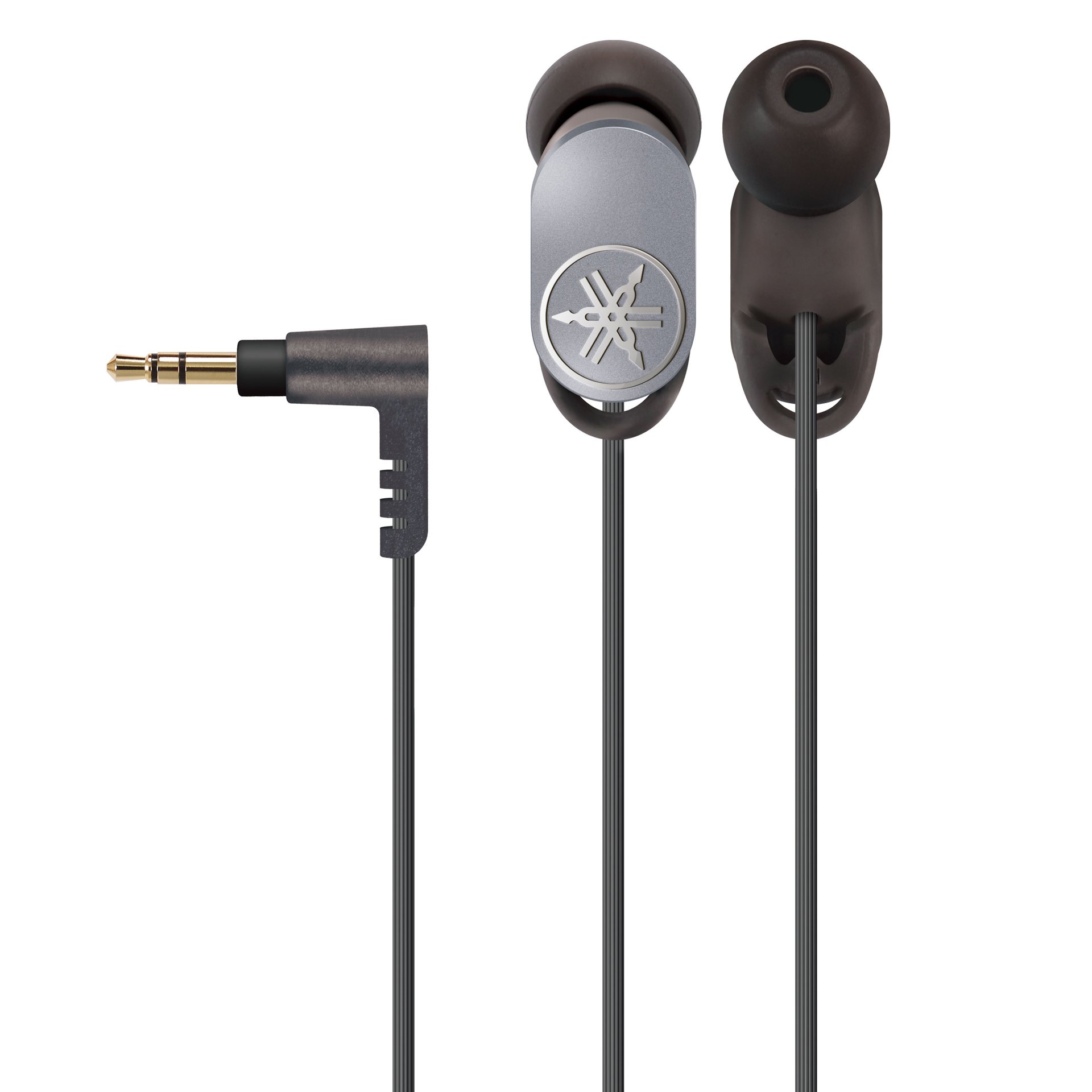

Earphone EPH-52

Yamaha's own 2-way ear supporter, a high-grade model of matting paint that you can choose from two different wearing styles to suit your taste.

In-ear type with high sound quality design exceeding size feeling, such as exclusively developed 8.5 mm driver

For the 8.5 mm driver unit newly developed for "EPH-52/32/22" series · EPH-S 01 series, use high magnetic neodymium magnet.

By adopting Yamaha's unique tangential edge with high precision on the diaphragm and by setting the diaphragm to the optimum movable edge shape or vibrating section (dome) area at the actual use volume, it is compact size but wide

Bandwidth reproduction is enabled.

Also, the housing is designed so that the driver and the sound conduit line up on a straight line so that the sound of the driver reaches the eardrum straight.

For the material, ABS resin for the front part, polycarbonate and ABS for the rear part is adopted, and by making it a material with different hardness, unnecessary resonance which causes muddiness of the sound is reduced.

In addition, we are pursuing high-quality sound quality, such as installing a sound tuning pipe that suppresses unnecessary high frequency peaks.

This machine coats the manganese alloy around the driver unit and drastically improves the damping effect, while pursuing the sound that the music feels pleasantly enjoyable, with both tight bass and clear high-frequency regeneration compatible

I will.

Pursuit of optimal fit, such as original 2 Way ear supporter that can choose the wearing style

Fit tightly to your ear, compact size you can wear casually.

Furthermore, Yamaha's unique 2-way ear supporter is adopted, and in addition to the normal style to be installed at the normal cable position, an ear-hook style that allows the cable to be firmly attached by being hooked on the ear is also possible.

Two types of wearing styles can be chosen according to your preference and scenes to use.

Also, the earpiece adopts two kinds of silicon materials with different hardness.

Passing parts of sound are seriously matched to the holes of the ears while maintaining the shape, with both strength and flexibility being compatible by applying serration processing * ¹ to hard silicon.

It can also prevent sound quality deterioration due to the collapse of the earpiece.

In addition, soft silicone is adopted as a part which touches the ear, and a 4 size earpiece which can be chosen according to the size of the hole of the ear is attached.

Depending on the size, the balance between diameter and depth is also optimized.

It can be firmly attached to the back of the hole of the ear, making comfortable comfortable to wear out even if it is moving.

Sound leakage to the surroundings is also reduced.

In addition, serration processing * ² is applied to the cable, friction which causes cable entanglement is reduced, and touch noises are suppressed, and ease of listening is also improved.

Simple design with no tire

Symbolically treated Yamaha's tuning fork mark on the flat body, a simple design with no tired eyes.

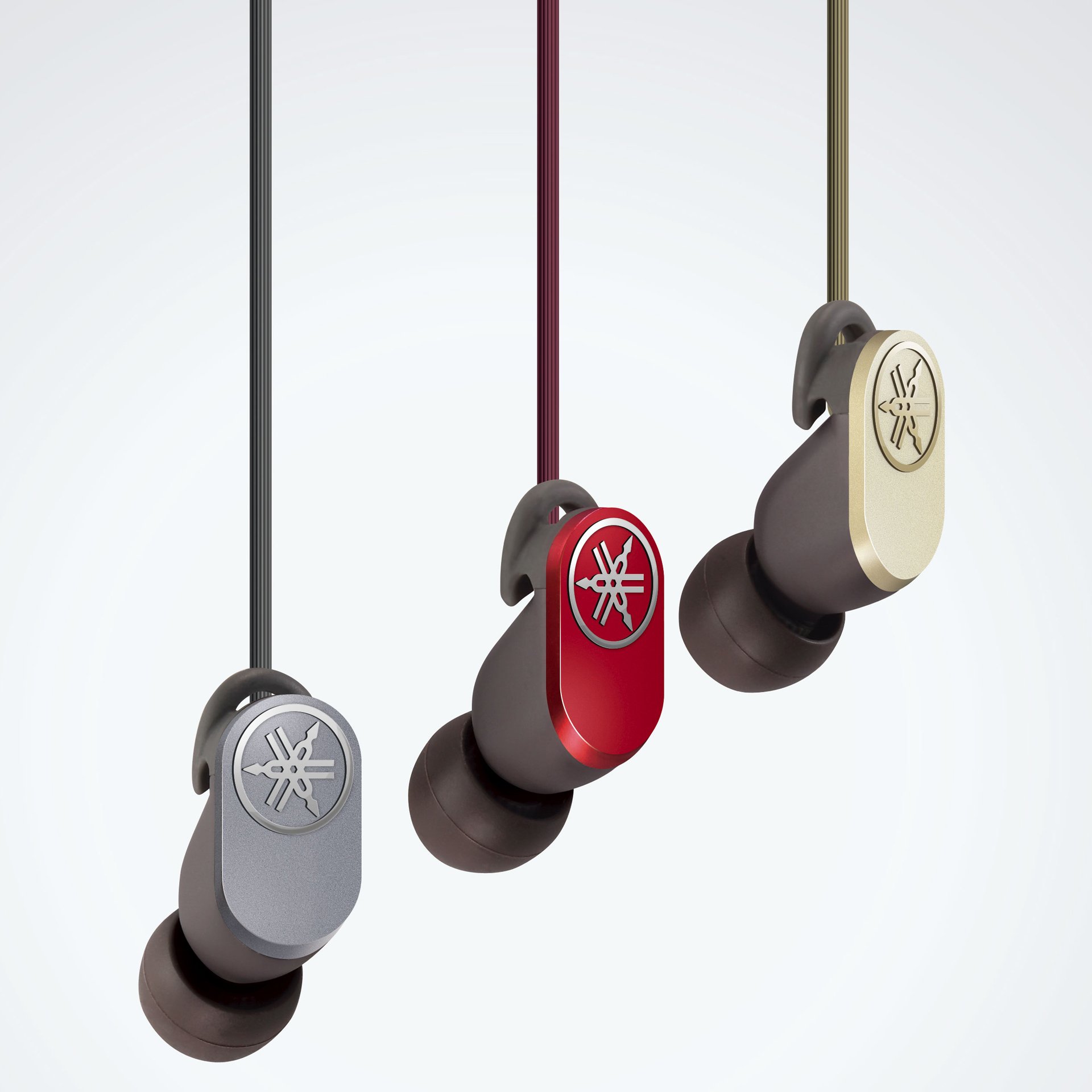

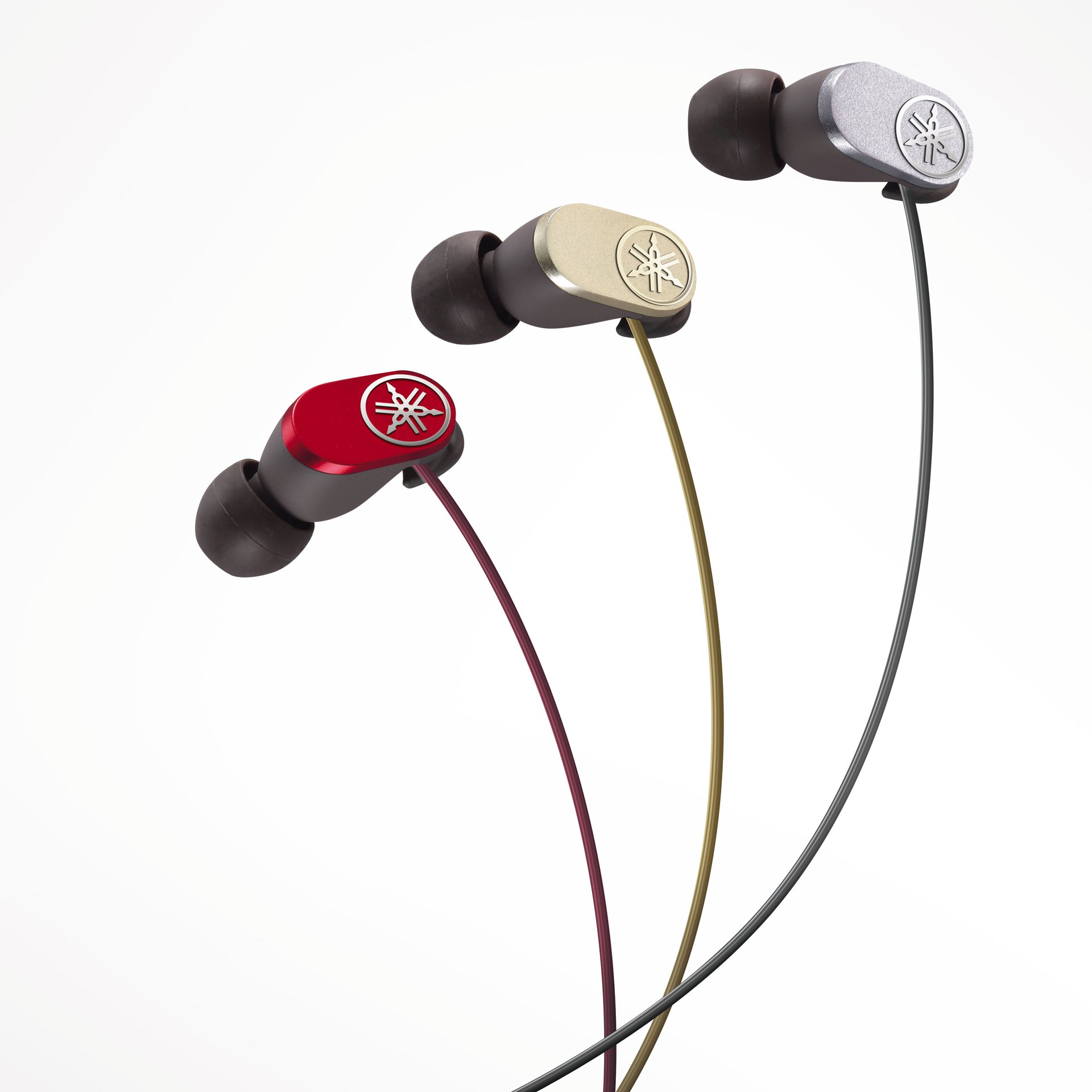

We can prepare 3 colors and choose your favorite color according to your preference.

This machine was subjected to a matte paint finish, directing a calm high-grade texture.

It is a basic type of cable only.

Main Specifications

Model

Sealed dynamic type

Driver caliber

8.5 mm

Impedance

16 Ω

Output sound pressure level

99 dB ± 3 dB

Playback frequency band

20 Hz to 40 kHz

plug

3.5 mm L type stereo mini

cable length

1.2 m

mass

12.5 g

accessories

Earpiece 4 size (2 XS, S, M, L, LL each), instruction manual

Show all product descriptions

Features:

• Please enter model number Confirm this is compatible:
• In-ear type with high sound quality design exceeding size feeling, such as exclusively developed 8.5 mm driver
• Pursuit of optimal fit, such as original 4-way ear supporter that can choose the wearing style
• Various product lineup that you can choose according to your listening style

Product information:

Shipping Weight: 86 g

Package Dimensions: 3.30 x 12.29 x 20.09 cm
