product description
This product uses the high-end Sonix MCU control program， the product has been charging， over discharge protection， output short circuit protection; products with high conversion efficiency， easy to carry， suitable for charging tourists travel electronic standby Output Voltage 5V;
functional description
A，functional specification
1 the first use， the need to use the device to activate the device to activate or press the button for more than 2 seconds; trigger button once， mobile power on， the power will be real-time monitoring of battery voltage， and display power.
2 starting in the process of real-time monitoring of load current. If there is a load and current is greater than 50mA， the current battery indicator light flashes. If the load current is less than 50mA， then the current battery indicator is often bright， and the start time， the continuous 20s load is less than 50mA， then turn off the mobile power. If the load current is greater than 50mA， the timer is cleared.
3 after the start button， all superimposed products will wake up and display the current power and output.

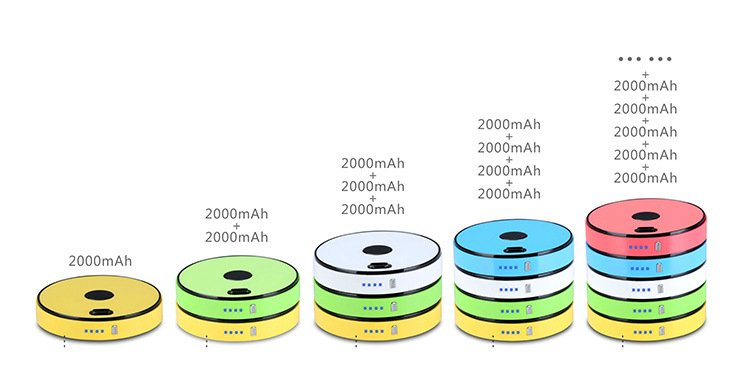

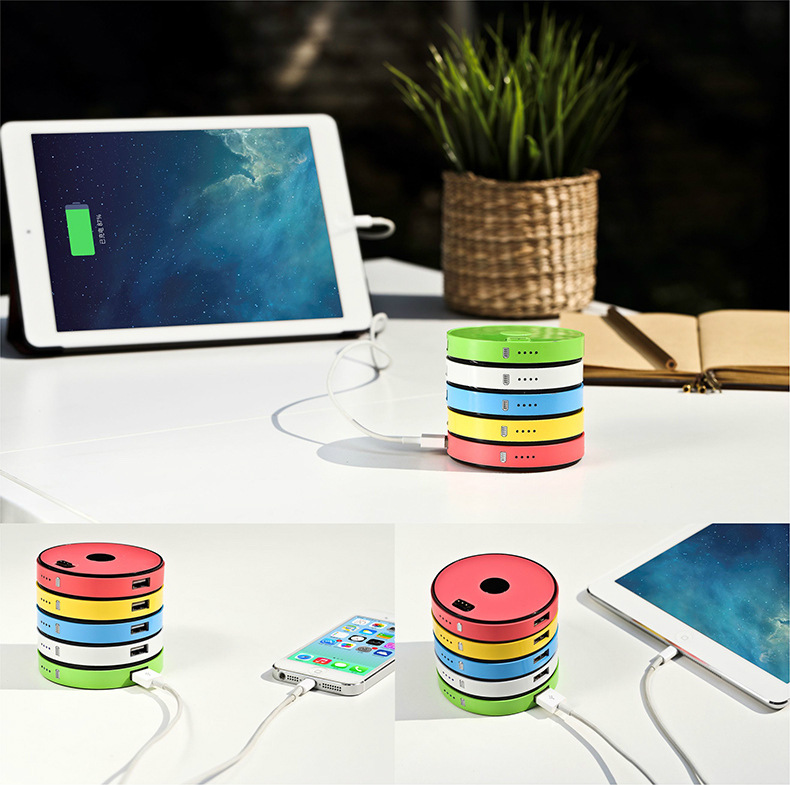

4 products can be used alone or more than a single use， can be a separate charge can also be superimposed together for charging
5 conversion efficiency of 87% products;
Two，Electric quantity display
Four power indicator lamp charging below 25% D1-D4 flash in sequence; more than 25% D1 often bright carnosine D2 D4 flashing in turn; 50% D1， D2 often bright serine D3-D4 flash in sequence; flash above 75% D1， D2， D3 often bright carnosine D4; full， four lights long bright.
Power display mode: 100% (4.1-4.2V)， 75% (3.8-4.0V)， 50% (3.5-3.7V)， 25% (3.4-3.6V);
Low power tip: four power lights at the same time， the three flashing warning， and close the output
Working parameters of mobile power supply
1， input charging voltage: 5.0V
2， the pre charge current: 100mA + 30mA
3， fast charge current: 900mA + 50mA (adjustable)
4， charge and discharge instructions: with reference to the display indicator function
5， lithium battery charging voltage: 4.15V ~ 4.25V
6， discharge protection voltage: 3.0V
7， charging environment temperature: 0 ~ 40
8， storage temperature: -20 ~ 55
9， output voltage: no-load 5-5.25V; load 4.75-5.0V
10， output current: 1000MA
11， overload protection current: 1.70A
12， standby power consumption can be controlled in the following 50uA;;
13， minimum output current 50mA + 20mA
Assembly production requirements
1， all personnel must be good to do anti-static measures
2， production equipment must be grounded
3， the product first welding negative electrode and then welding
