Product Description

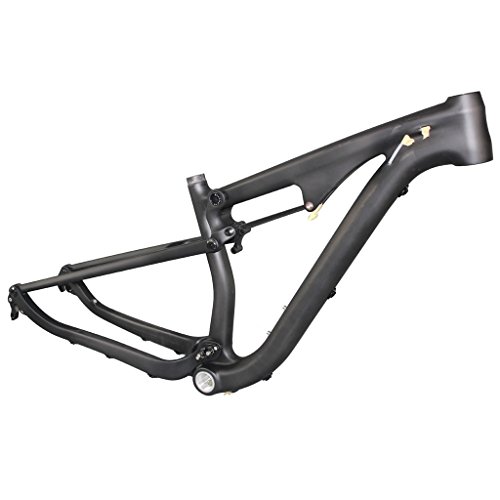

ICAN 29er Mountain Bike Suspension Carbon Frame
Finish: UD matte
Frame Size: 15.5/17.5/19/21 inch
Wheel Size: 29er
Seat Post Size: 31.6mm
Seat Post Clamp Size:34.9mm
Headset: Top 1-1/8" , Down 1-1/2"

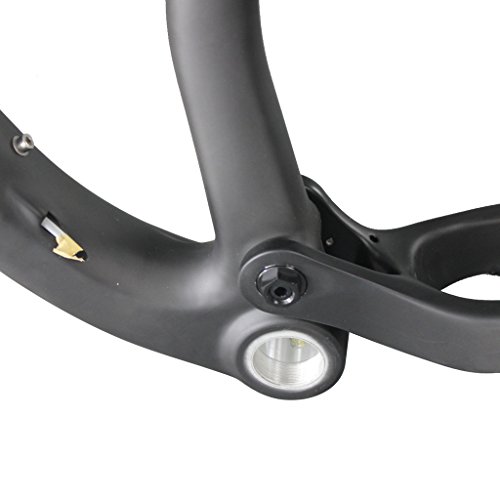

Bottom bracket: BSA
Shock size: 165x38mm
Suspension travel: 110mm
Headset : Top: 1-1/8" , Down:1-1/2"
Brake: Disc Brake
Weight: 2135g-17.5 Inch; 2180g-19 Inch
Axle: 135x9mm/142x12mm

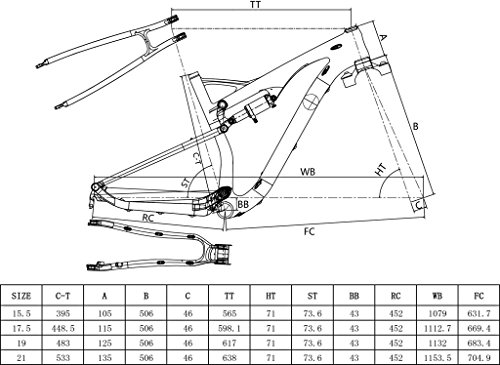

Geometry

Size 15.5inch(you can see other size geometry on the photo)
Top Tube (effective): 565mm
Seat Tube (BB Center to Top): 395mm
Chain Stay (actual): 452mm
Seat Tube Angle: 73.6¡a
Bottom Bracket Drop: 43mm
Head Tube Length: 105mm
Head Tube Angle: 71¡a
Fork offset: 46mm
Wheelbase 1079mm


Package included:
Frame
