Item Descriptions:

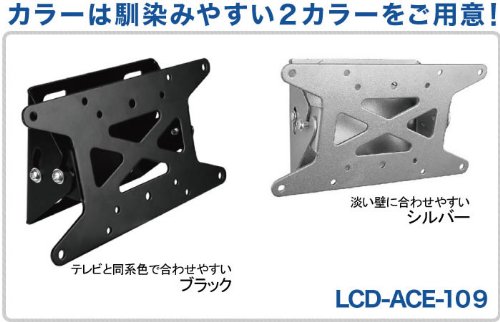

Color:
black
Also compact size and angle adjustment
Yes TV wall bracket!
With angle adjustment function that can match with your style.
It is a metal fitting that can be installed from a stud.
Easy to wire
Best wall distance
Since the distance from the wall is 5.5 cm, it is easy to wire, making it possible to adjust the angle firmly.
In case

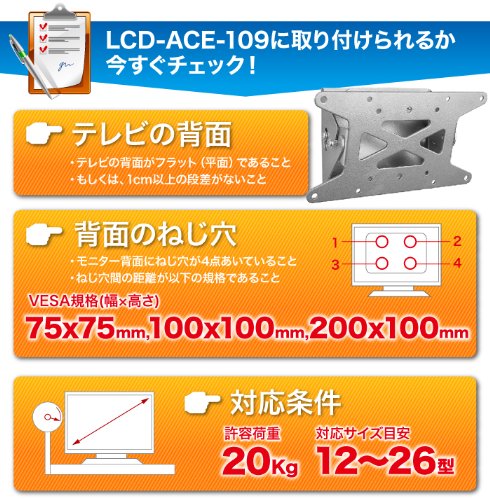

Installable condition
· There are four or more screw holes on the back of the monitor and it is possible to remove the stand
· The back of the monitor is flat (flat), or there is no irregularity which interferes with the metal fitting of 1 cm or more
· The monitor size is 12 to 26 inches (it is a standard number of inches)
· The weight of the monitor is 20 kg or less
· Screw holes on the back of the monitor must be compatible with VESA 75 x 75, 100 x 100, 200 x 100 mm.

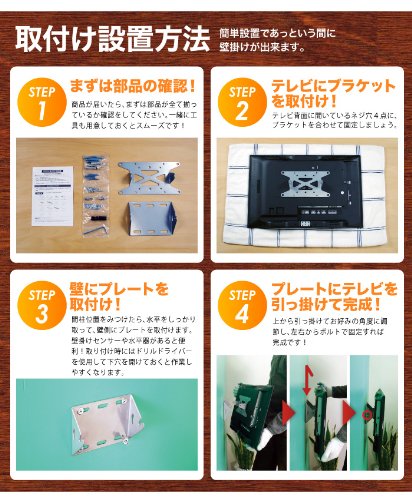

First of all, check the parts!
When the item arrives, please check first whether all the parts are complete.
Please contact us if any necessary parts are missing.
In case
Attach the bracket to the TV!
Let's attach the metal fitting on the TV set to 4 screw holes opened on the back of the TV.
Plate the plate on the wall!
Firmly check the state of the installation location and attach the wall side metal fittings to the studs and reinforced walls.
If you drill a hole with a drill driver or the like, installation becomes easy.
In case
Completed hooking the TV on the plate!
Attach the TV to the wall by hooking it from above on the wall side metal fitting.
Tighten the screw from the side and it is completion!
Features:
- Please enter model number Confirm this is compatible:

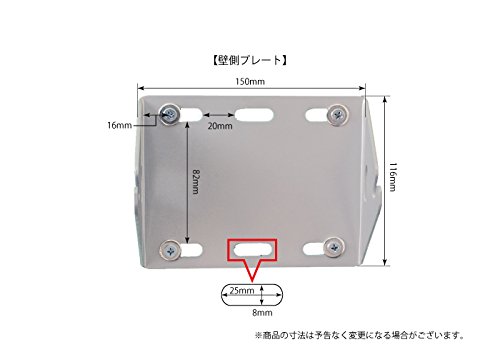

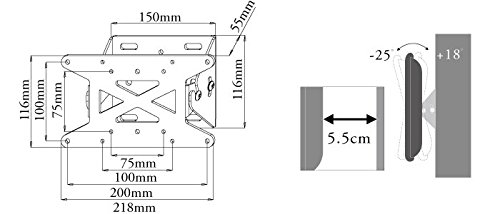

- [Dimensions] See the drawing
- [Product weight] 1.0 kg
- 【Angle adjustment】 Upward 18 degrees downward 25 degree angle adjustment
- 【Product Details】 ■ Metal fittings body ■ ■ Various screws set | ■ Japanese installation instructions
- [Mounting load capacity] 20 kg
Product information:
Shipping Weight: 861 g
Package Dimensions: 7.01 x 12.80 x 22.61 cm
