Item Descriptions:

color:

black

HeroSeries GoPro compatible WiFi remote control

Improved HeroSeries GoPro support - WiFi remote control:

★ 【Long Distance Control】 ★ 【Easy to Use】 ★ 【Waterproof Design】

【Corresponds to GoPro】

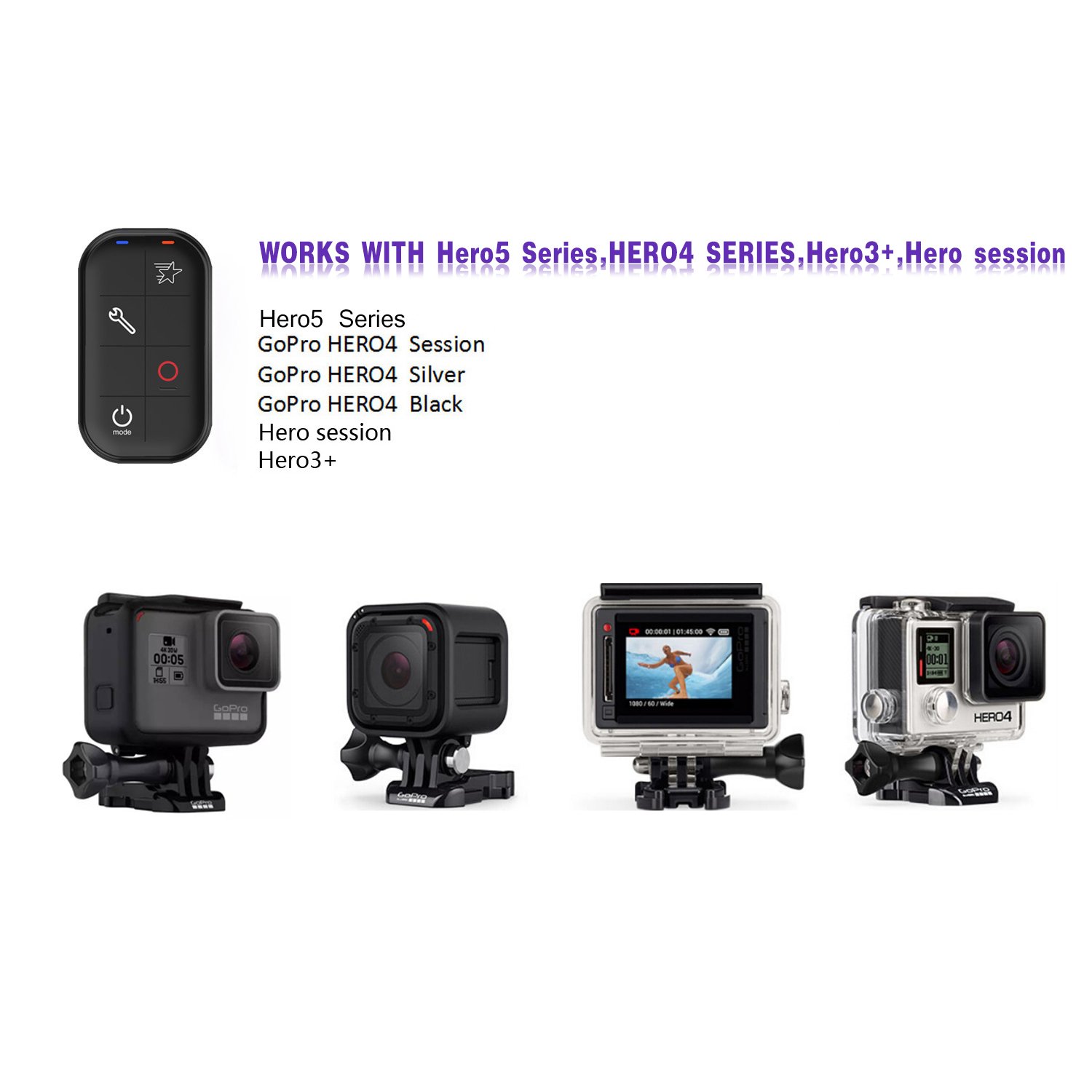

Exchangeability with GoPro:

HERO 5 series HERO 3

HERO 4 black HERO 4 silver

HERO session HERO 5 session

★ [Memo

The following site "http://www.yottafun.net/support/"

You can download Japanese instruction manual.

Product features

【Long Distance Control】

Under optimal conditions, you can control cameras up to 100 m away.

★ 【Easy to use convenient】

It can be used for waterproof design, even on rainy days.

Squirre

It includes a strap, it's easy to carry around.

★ 【Customizable】

Login IP address "http: // gore.local"

Your favorite mode will be saved prematurely.

★ [Upgrade]

Upgradeable firmware: Login IP address:

"Http: // gore.local" Update wireless firmware

We will also support you and get new features to fit your future model.

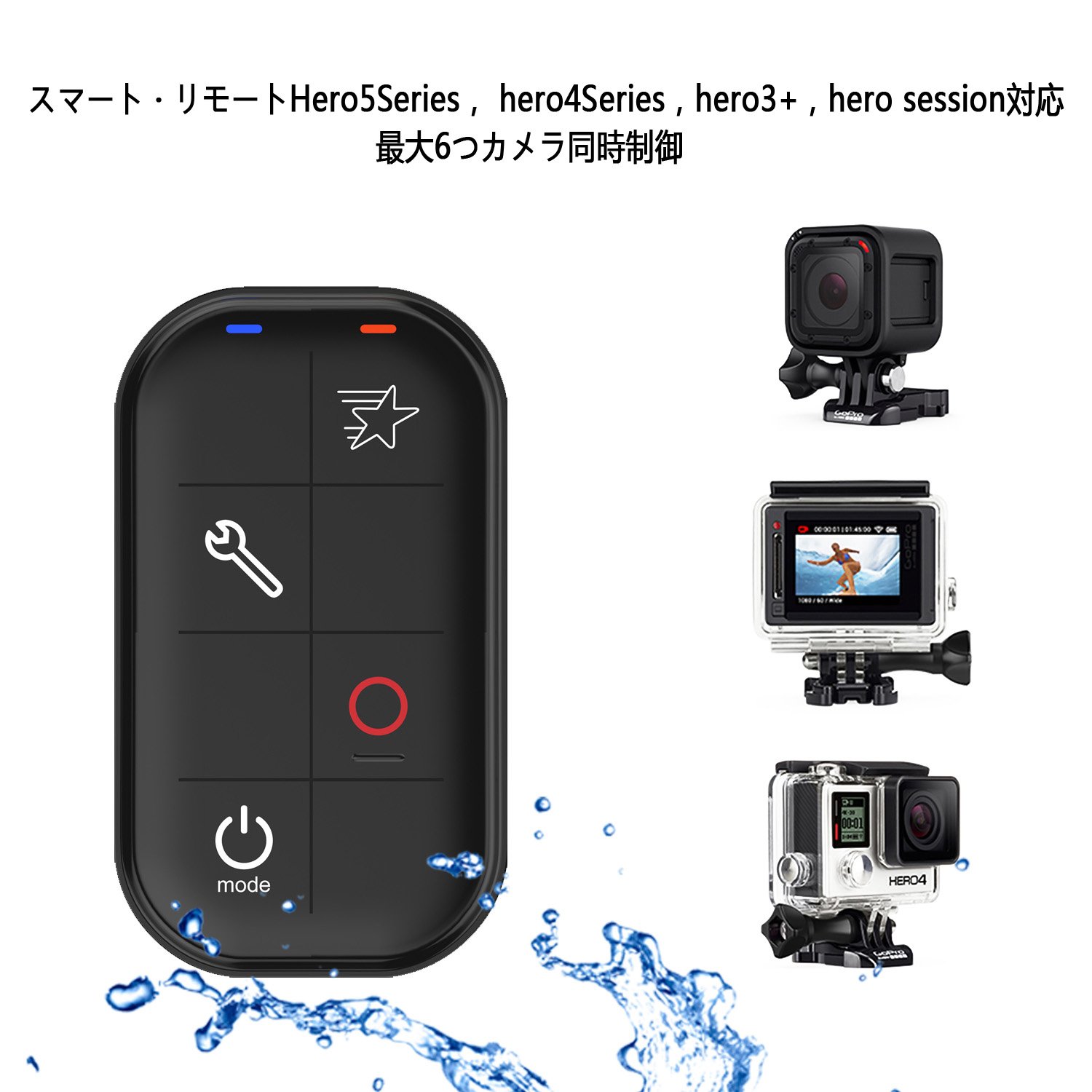

【Control of 6 cameras once】

Installing the perfect multicam Simultaneously control up to 6 cameras at the same time.

questions and answers

Q1: How do I pair with Remote and GoPro?

Both cameras and remote are powered on, and then GoPro is set to "WI - FI RC" pairing mode according to the GoPro manual, then both will automatically pair.

After successful, a check box is displayed on the screen of GoPro, and it glows blue light at the same time.

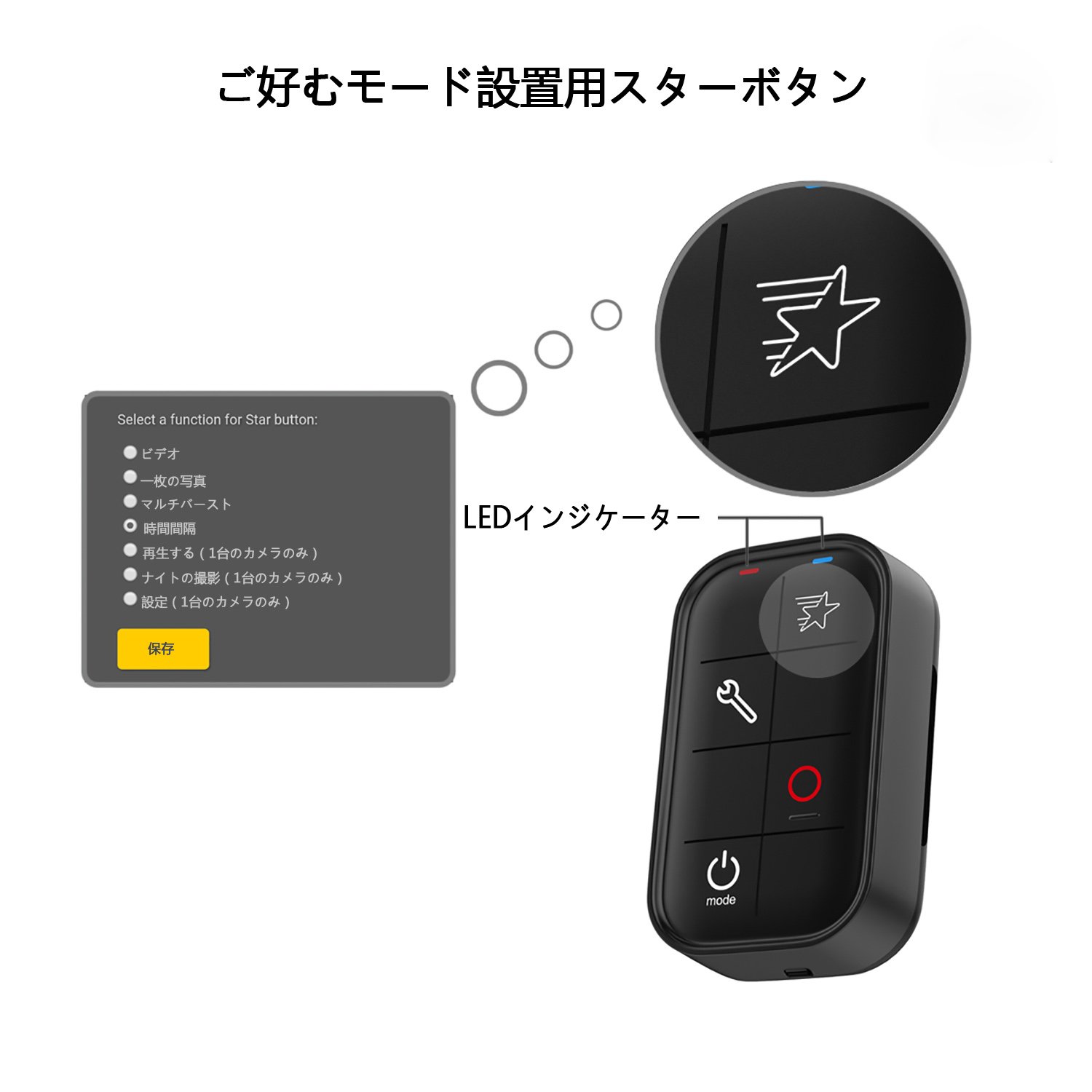

Q2: How do I set the [Star (★)] button?

1. Press "Star (★)" for about 4 seconds, and when the right blue / red / green light shines simultaneously, it enters setting mode.

2. Search for the wireless LAN signal "HERO - RC - XXXXXX" on a mobile phone or PC and then connect.

3. Enter the browser "http://10.71.79.1" or "http: // gore.local"

Select from the mode list and click "Save".

4. Press and hold the star (★) button for 4 seconds to turn off the setting mode.

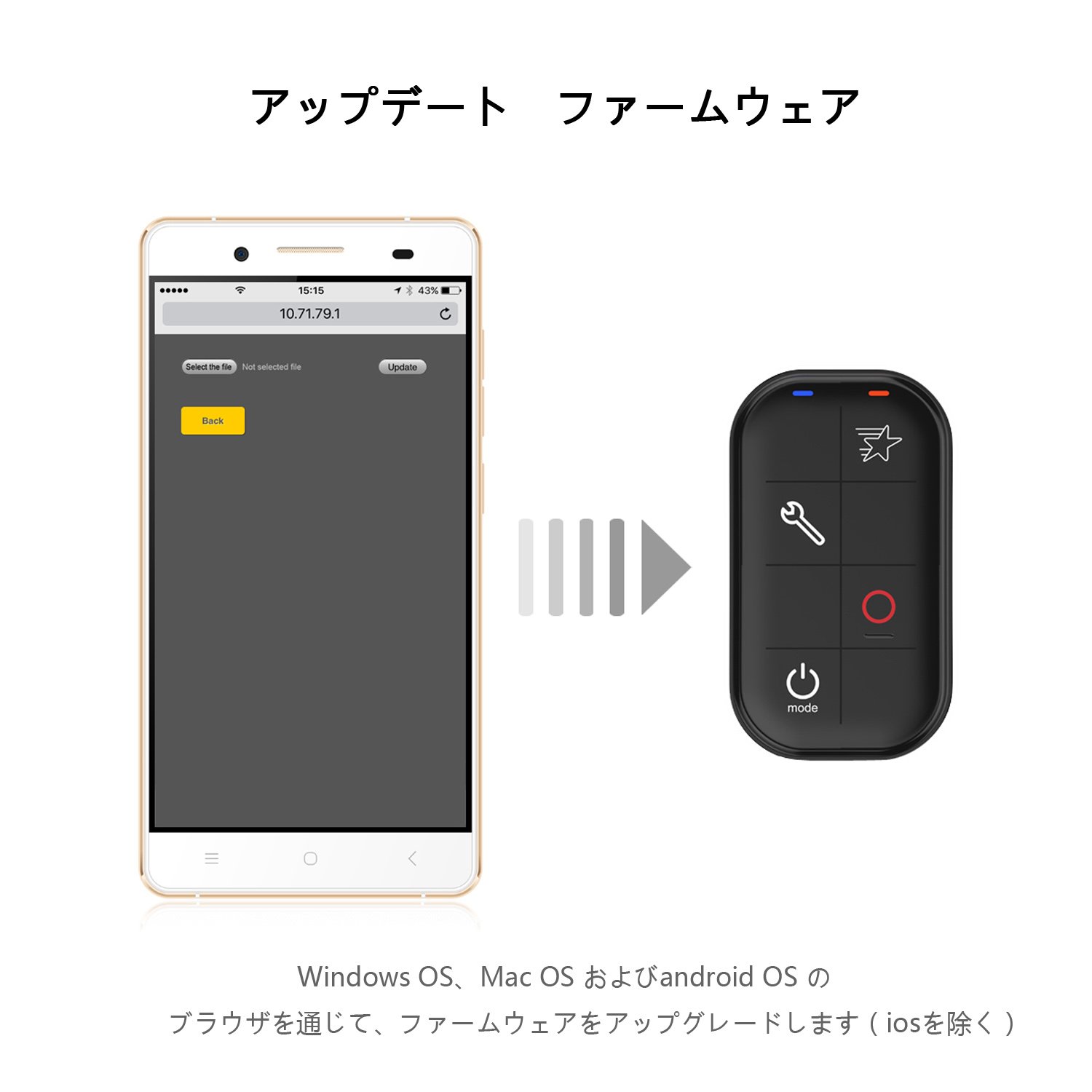

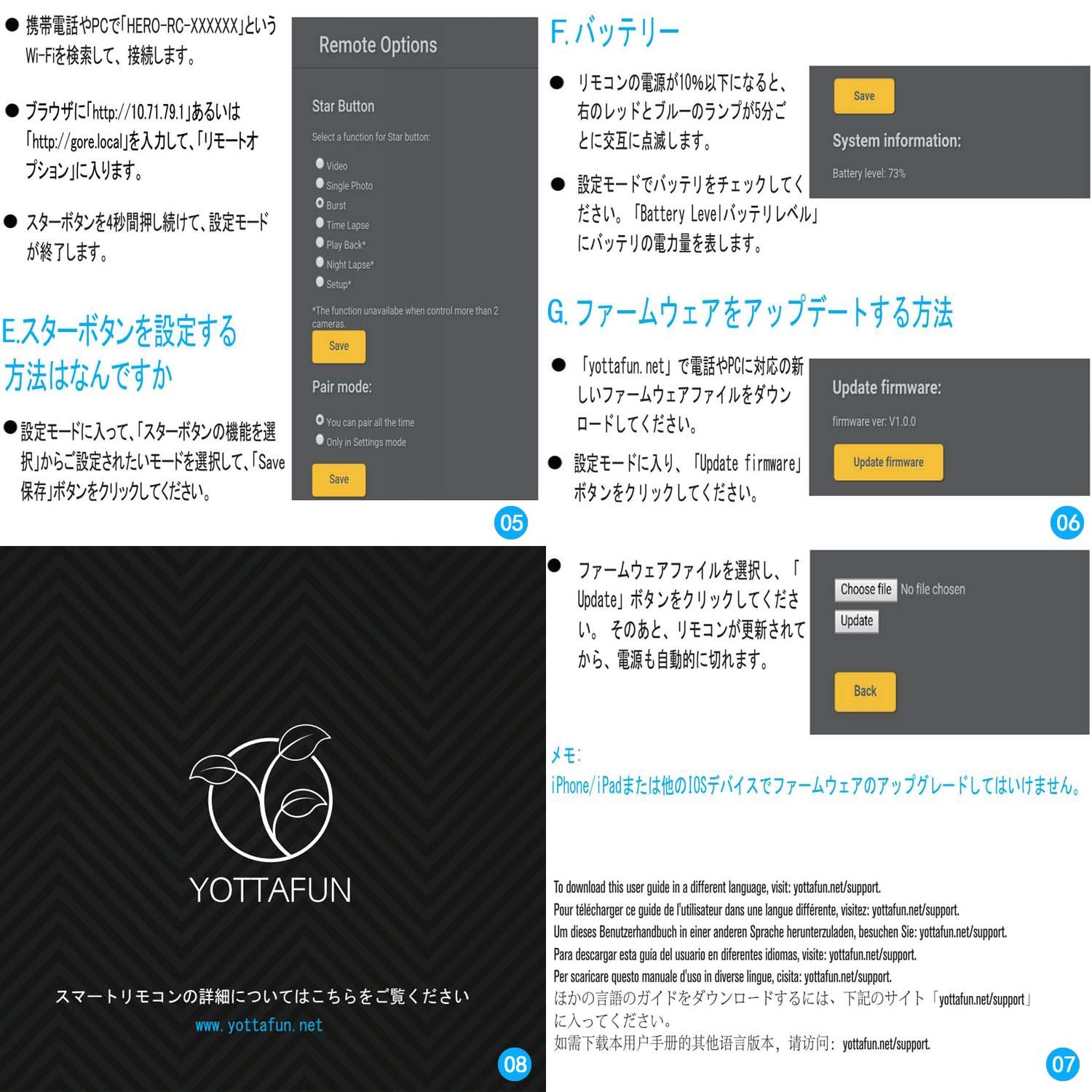

Q3: How can I update the firmware?

A: Leave the "Star" button pressed for about 4 seconds,

When the blue / red / green light on the right side simultaneously shines, it enters setting mode.

2. Search for the wireless LAN signal "HERO - RC - XXXXXX" on a mobile phone or PC and then connect.

3. Enter browser "http://10.71.79.1" or "http: // gore.local".

4. When there is an available update, click "Update firmware".

5. Select the corresponding file "bin", click "Update"

When finished, the remote control will be automatically restarted.

Q4: How do I avoid pairing with GoPro which is wrong?

A: Enter the remote control setting mode, select "only in setting mode" and save.

However, the remote control can pair with GoPro with only the setting mode.

Product Specification

Item size: 6.2 x 3.7 x 2 cm

Indicator: 2 pieces

Operating temperature: -10 - 45 ° C

Water resistance level: IP 67

Input voltage: 5 V

Frequency: 2.4 GHz

Protocol (consultation): IEEE 802.11 b / g / n

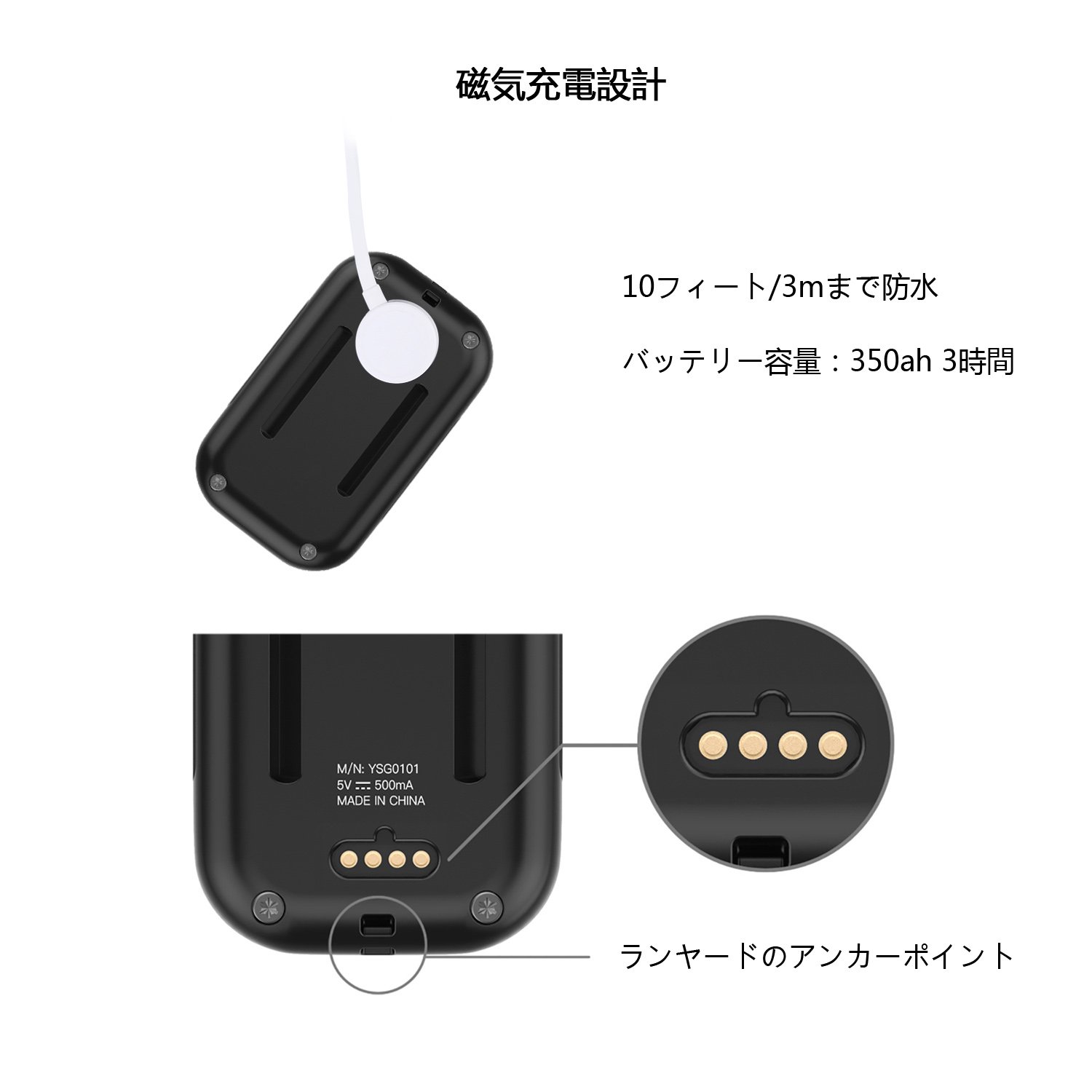

Interface: 4 pin magnetic port

Duration: 3 hours

Control distance: 100 m

Battery: 350 mAh

Package contents:

1 * Remote control

1 * Cable for magnetic charging

1 * Wrist strap

1 * Instruction Manual

Features:

• Please enter model number Confirm this is compatible:

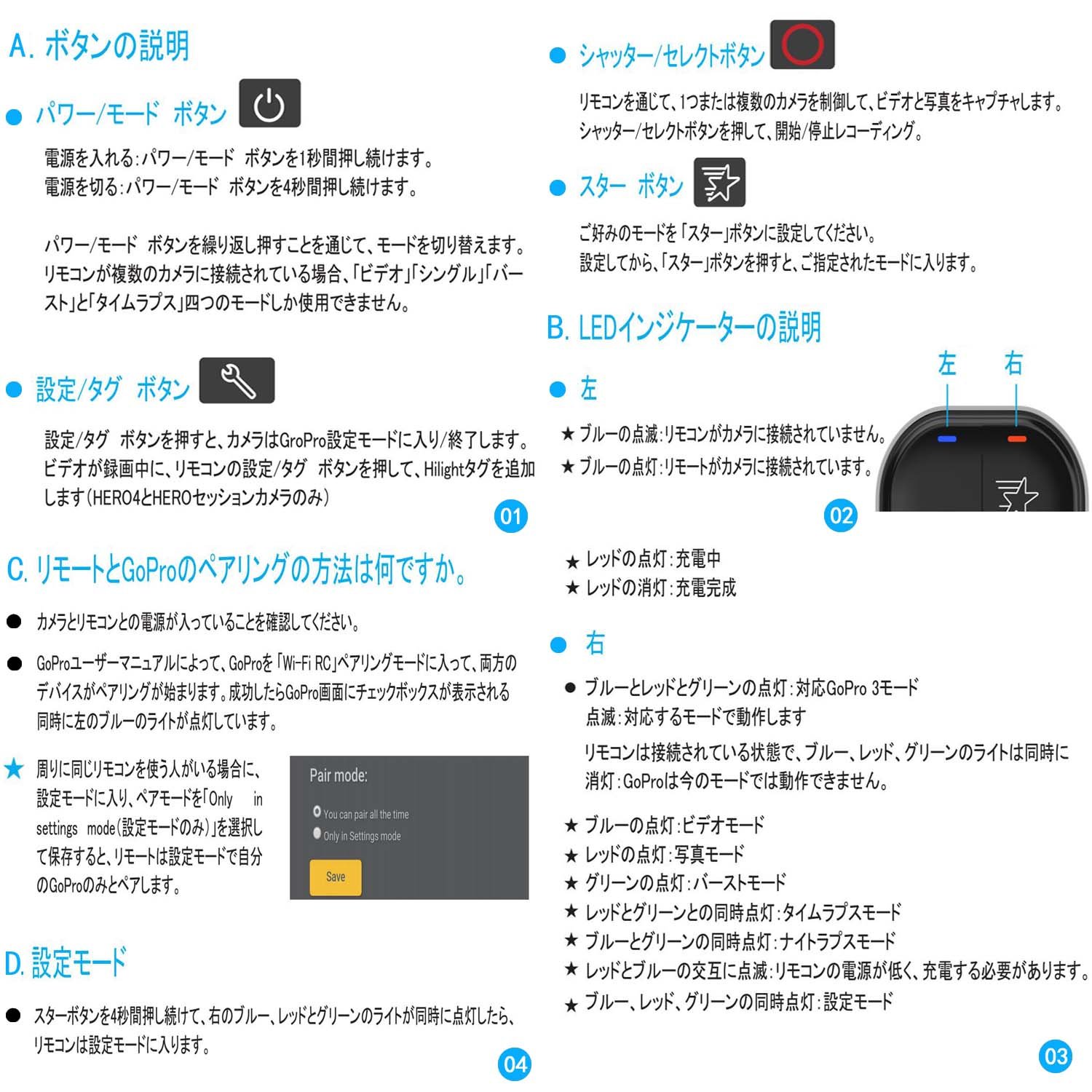

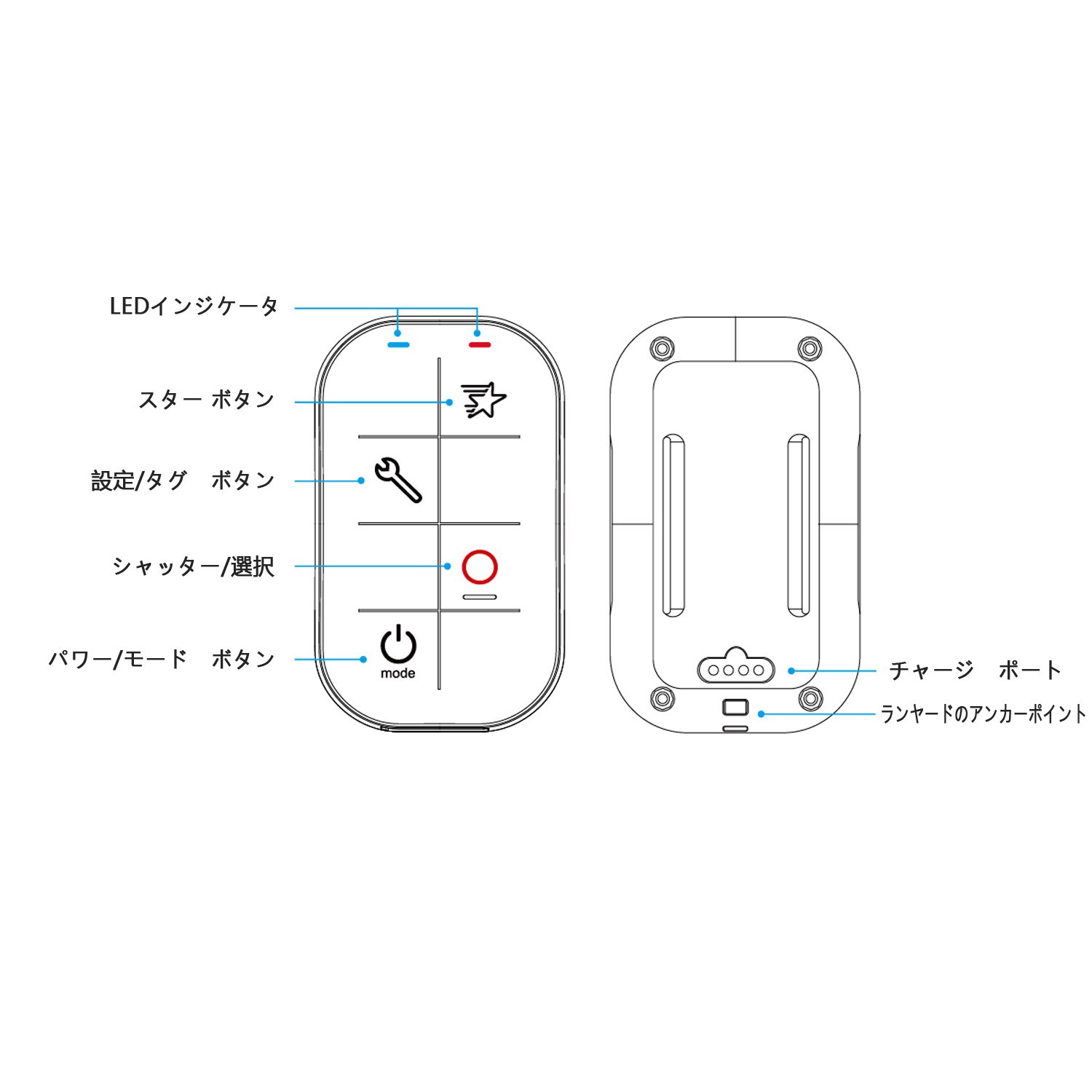

• ▲ [4 simple buttons] You can fully control all functions of power / mode button, setting / tag button, shutter / select button, star button, camera.
• You can also use the setting / tag buttons to quickly adjust the setting or attach the HiLight tag at an important moment during shooting.
• ▲ [Long Distance Control] Under optimal conditions, you can control the camera that is up to 100 m away.
• However, although it has IP67 waterproof quality, it is impossible to transmit wireless LAN signals in water, so you can not control the camera in the water.
• ▲ [Up to 6 cameras controlled once] Install perfect multicam Simultaneously control up to 6 cameras at the same time.
• It can reach stable and high speed transmission.
• ▲ [Easy to use convenient] Water resistant design, it can be used on rainy days.
• A wrist strap is included, it is easy to carry around.
• In addition, Japanese manual for electronic version is also available.
• Request customer, please contact us.
• After that, this will be sent by e-mail.
• Please freely download it and use it.
• I hope it will be useful for your use.
• ▲ [OK to upgrade] Upgradeable firmware: IP address of login http: // gore.local, supports updating of wireless firmware, new functions to match future model are also obtained.

Product information:

Shipping Weight: 131 g

Package Dimensions: 2.59 x 10.39 x 13.21 cm
